GS-2108C User Manual
Publication date: April, 2008
Revision A4
122
Function name:
802.1x Mode Setting
Function description:
Set the operation mode of 802.1X for each port. In this device, it supports only
Multi-host operation mode.
Parameter description:
Port Number:
Indicate which port is selected to configure the 802.1x operation mode.
802.1x Mode:
802.1x operation mode. There are two options, including Disable and
Multi-host mode. Default is Disable.
îš‚ Disable
It will have the chosen port acting as a plain port, that is no 802.1x
port access control works on the port.
îš‚ 802.1x with Multi-host
In Multi-host mode, for the devices connected to this port, once a
supplicant is authorized, the devices connected to this port can access
the network resource through this port.

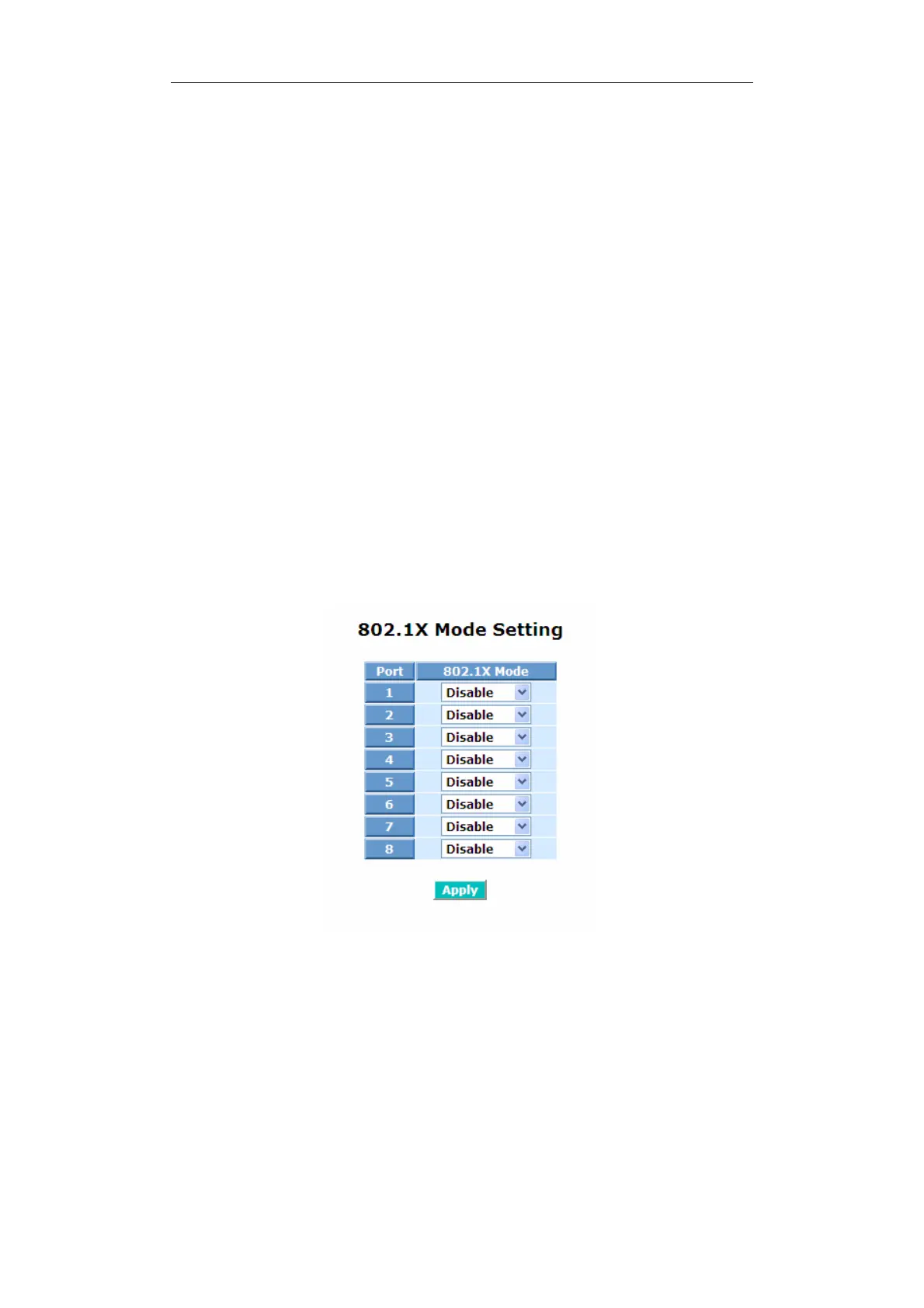

Fig. 3-60
