RuggedCom RSG2488 Installation Guide

RUGGEDCOM RSG2488
Installation Guide
Chapter 2
Installing the Device
Mounting the Device on a DIN Rail 5
Section 2.1.2
Mounting the Device on a DIN Rail
For panel installations, the RSG2488 can be ordered with panel/DIN rail adaptors pre-installed on each side of
the chassis. The adaptors allow the device to be attached to a panel using screws.
To mount the device to a panel, do the following:
1. Align the adaptors with the DIN rails and slide the device into place.
3
1
1
2
2

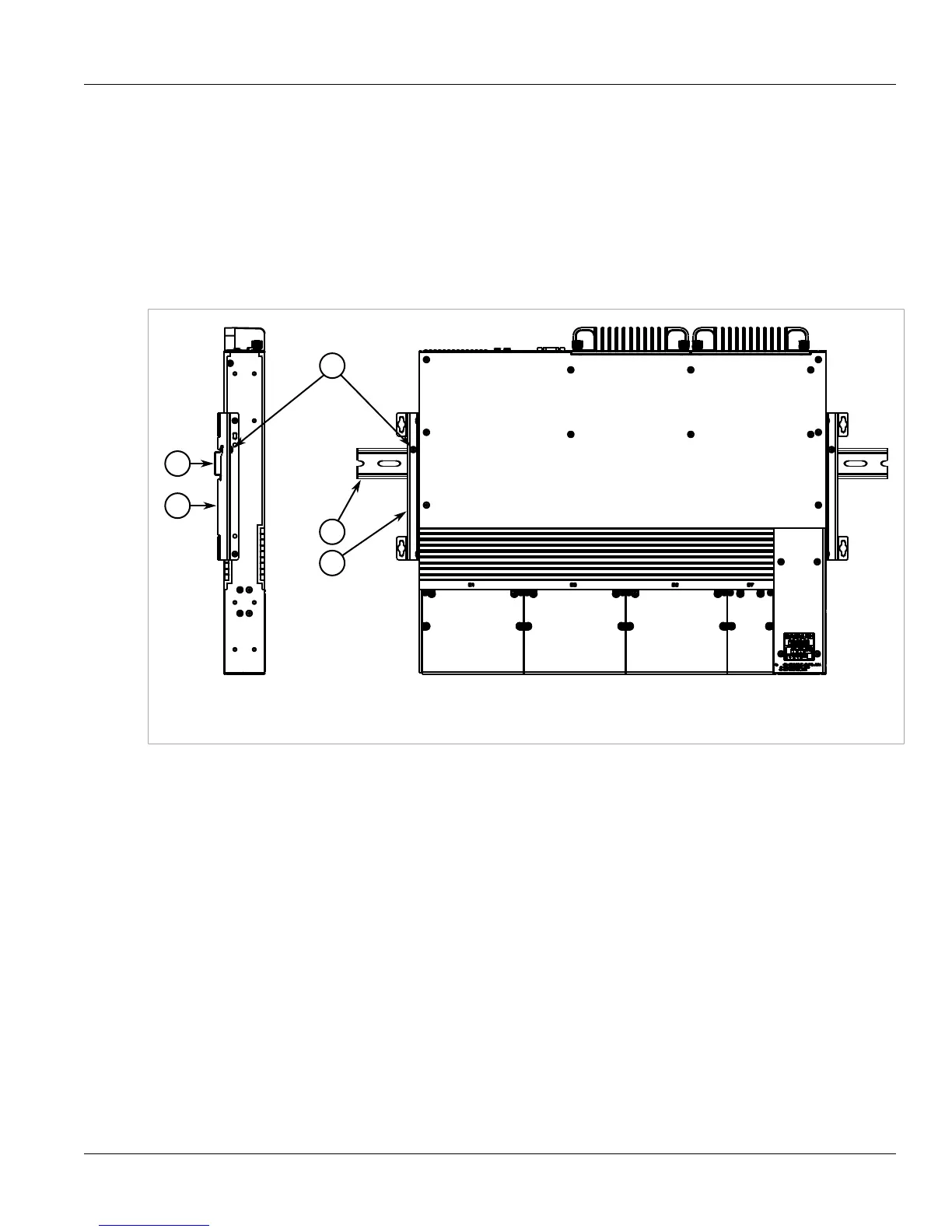

Figure 3: DIN Rail Mounting
1. DIN Rail 2. Panel/DIN Rail Adaptor 3. Screw
2. Install one of the supplied screws on either side of the device to secure the adaptors to the DIN rails.
Section 2.1.3
Mounting the Device to a Panel
For panel installations, the RSG2488 can be ordered with panel/DIN rail adaptors pre-installed on each side of
the chassis. The adaptors allow the device to be attached to a panel using screws.
To mount the device to a panel, do the following:
1. Place the device against the panel and align the adaptors with the mounting holes.
