RuggedCom RSG2488

RUGGEDCOM RSG2488
Installation Guide
Chapter 4
Technical Specifications
Pin Assignments 25
Terminal Blocks

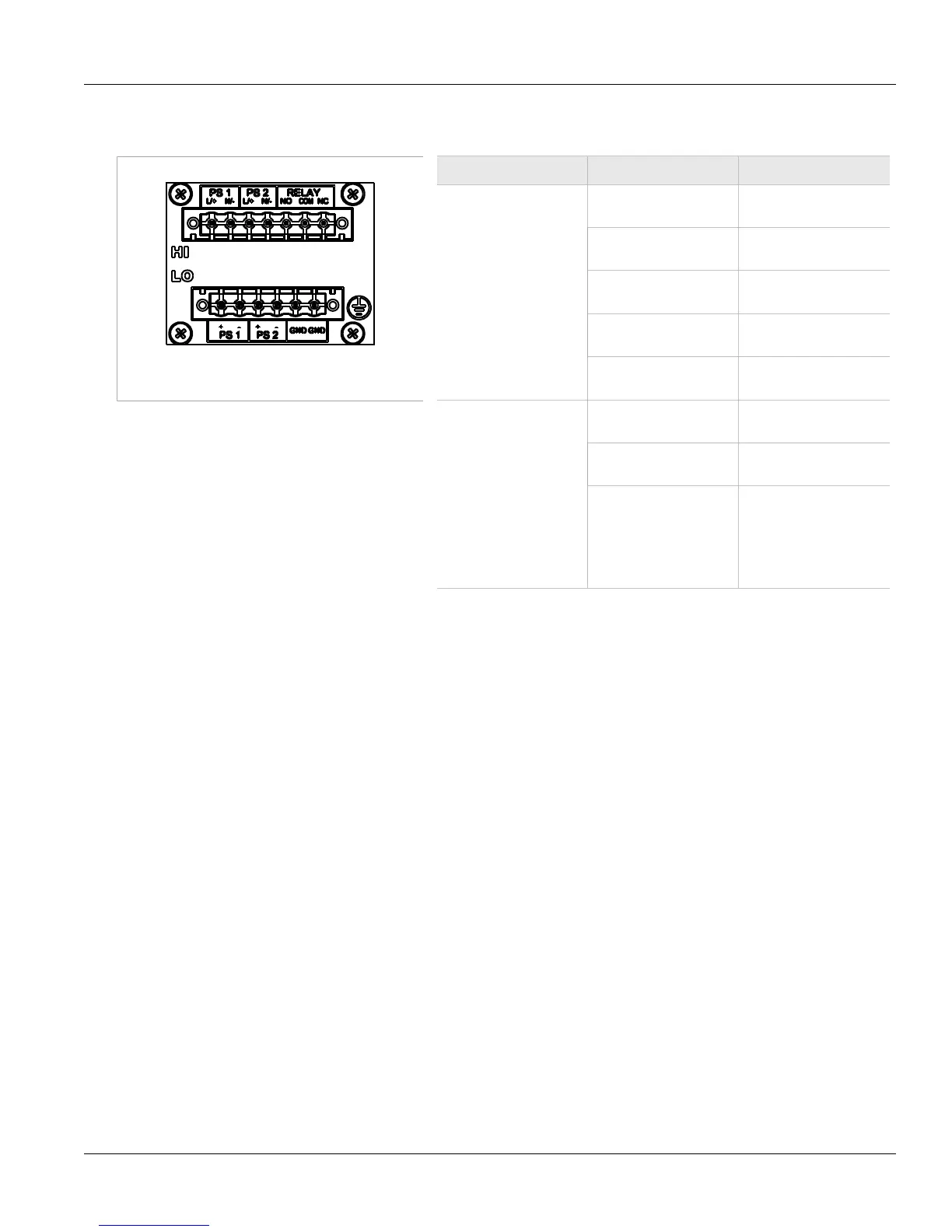

Figure 33: Terminal Block Pins
Terminal Block Pin Description
PS1/PS2 L+ Connected to the
(Live) terminal.
PS1/PS2 N- Connected to the
(Neutral) terminal.
Relay NO Normally open
failsafe relay contact.
Relay COM Failsafe relay
common contact.
HI
Relay NC Normally closed
failsafe relay contact.
PS1/PS2 + Connected to the
(Live) terminal.
PS1/PS2 - Connected to the
(Neutral) terminal.
LO
GND Connected to the
equipment ground bus.
Chassis ground connects
to both power supply
surge grounds via a
removable jumper.
