Product Overview
1.5 Display Panel Description
The RSG2000 series products are equipped with a versatile display panel, shown in
Figure 11, which is designed to provide quick status information for each
port, as well as
the entire device to allow for simple diagnostics and troubleshooting. It features:
RS232 console port for ‘out of band’ console access and configuration
Power supply and Alarm status indicators
Convenient port status indicators conveying Link-Activity, Duplex, or Speed via
push-button control.
System reset via push-button if held for 5 seconds

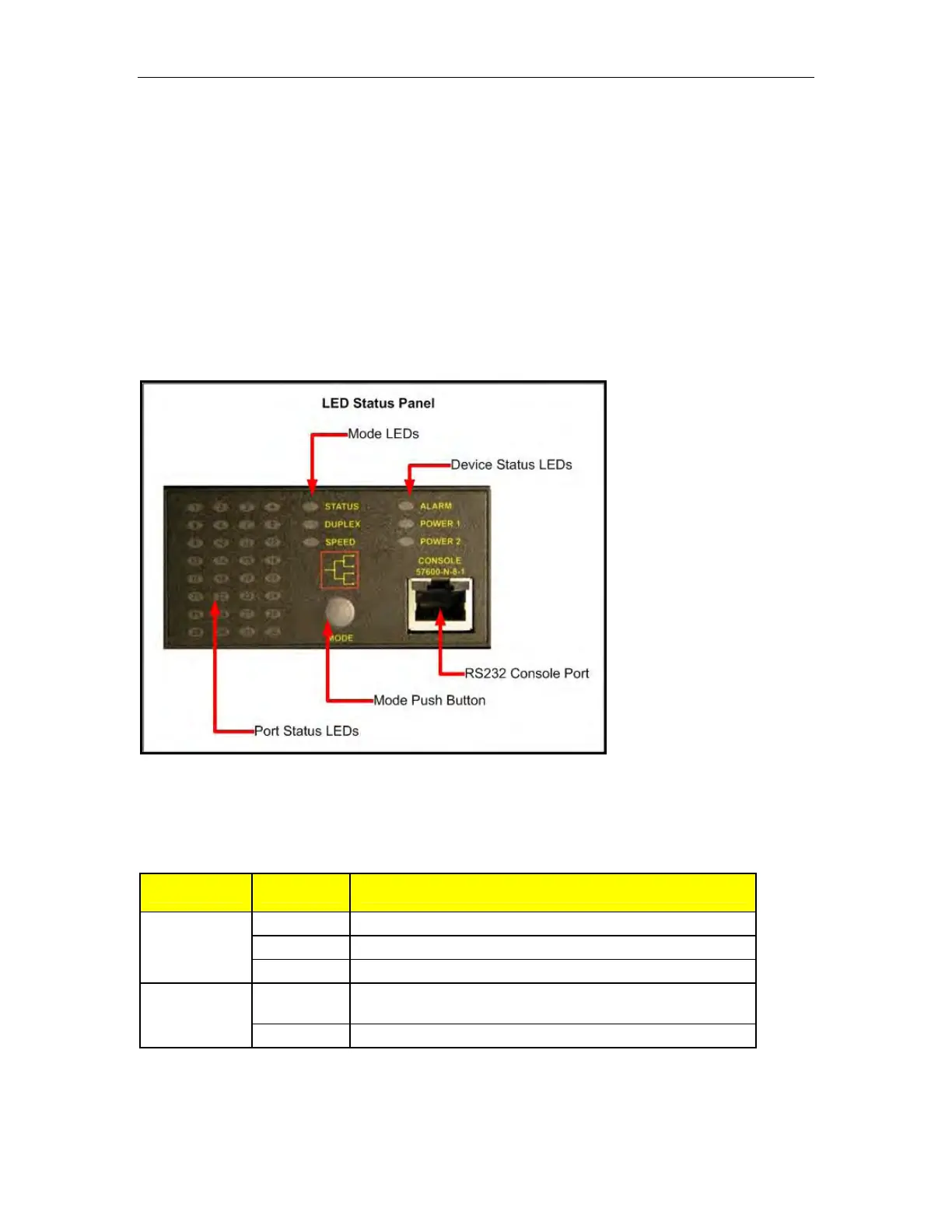

Figure 11: RSG2000 LED Display Panel
Device status LEDs exist to provide a quick visual indicator to operators for operational
status of the unit. Table 1 defines the possible LED colours and the corresponding
description.
LED Colour Description
Green Power supply operating normal
Red Power supply failure
PS1 / PS2
Off No power supply installed
Red Alarm exist – login to console to determine alarm
code
Alarm
Off No alarms exist
Table 1: LED Display – Device status LED behavior definition
