RuggedCom RuggedSwitch RSG2100 User Manual

Installation

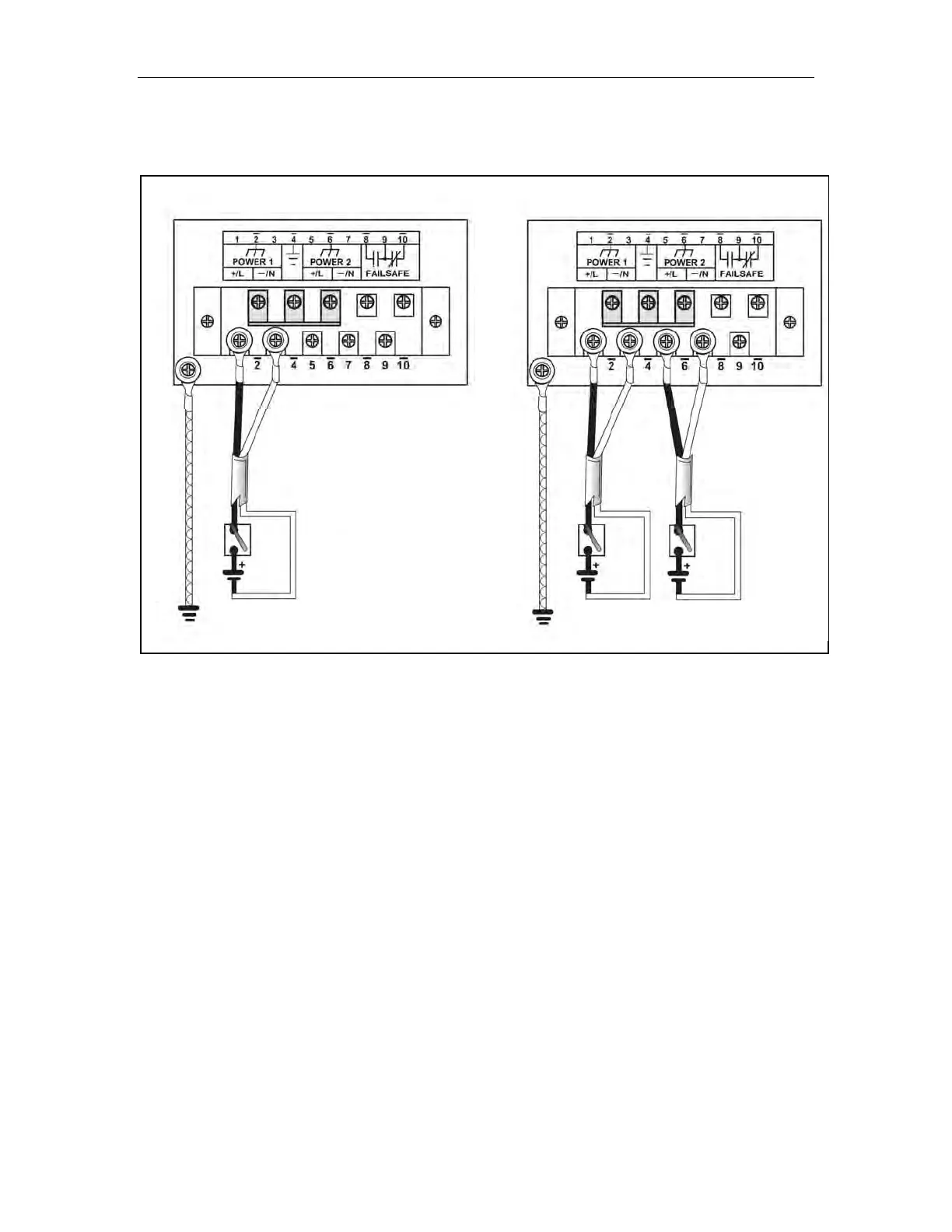

2.3.2 DC Power Supply Wiring Examples
Figure 19: DC Power supply wiring examples
Notes:
 88-300VDC rated equipment: A 300VDC appropriately rated circuit breaker
must be installed.
 A circuit breaker is not required for 12, 24 or 48 VDC rated power supplies.
 For dual DC power supplies, Separate circuit breakers must be installed and
separately identified.
 Equipment must be installed according to the applicable country wiring
codes.
RuggedSwitch
®
RSG2100 19 RuggedCom
®

RuggedCom RuggedSwitch RSG2100 Specifications

General

Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Power Supply	88-300 VAC/VDC
Mounting	DIN rail or panel mount
Management	Web-based, CLI, SNMP
Protection	Surge protection
Dimensions	135 x 196 x 119 mm
Standards Compliance	IEC 61850-3, IEEE 1613, EN 50121-4
Weight	0.8 kg (1.76 lb)
