Installation

2.3.1 AC Power Supply Wiring Examples

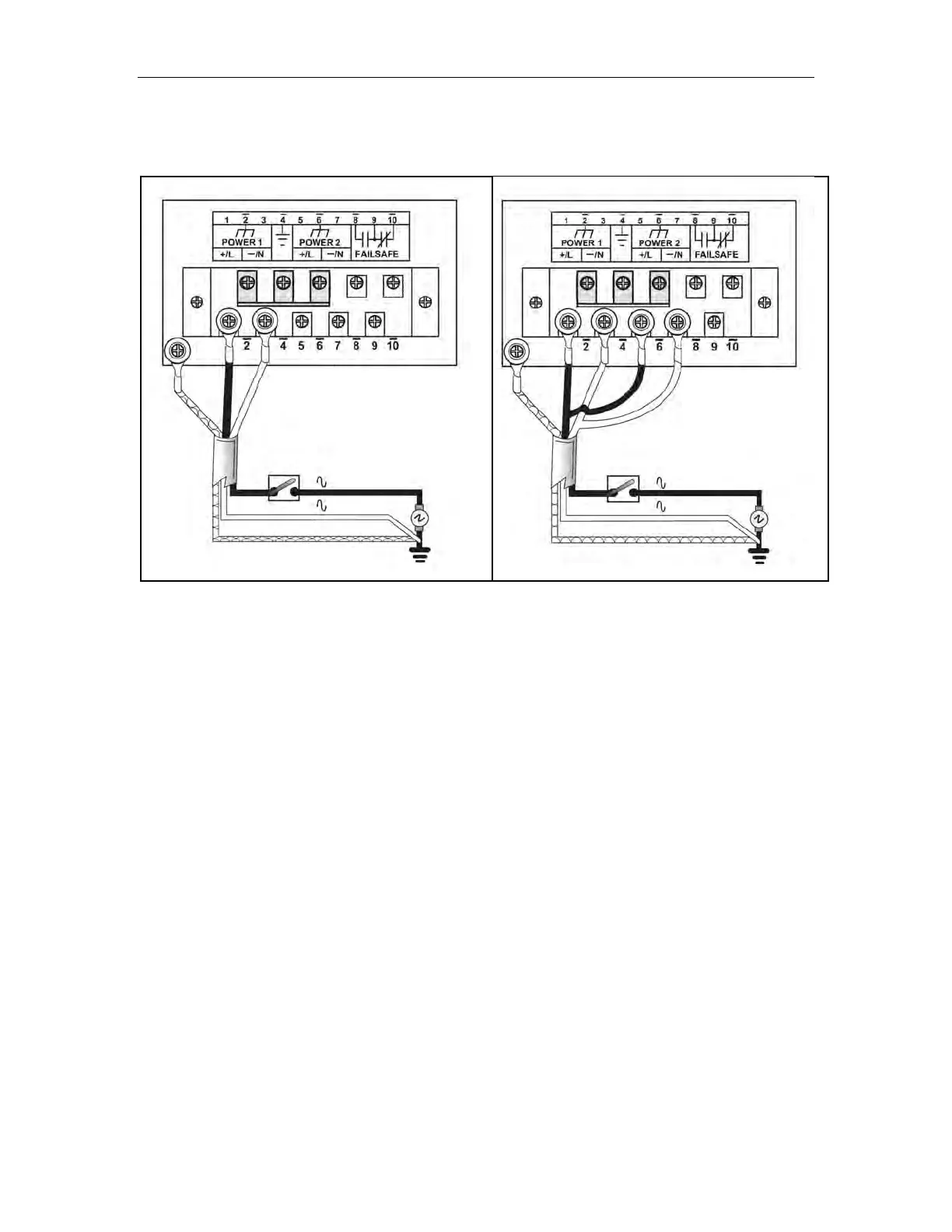

Figure 18: AC Power supply wiring examples

Notes:

 100-240VAC rated equipment: A 250VAC appropriately rated circuit breaker

must be installed.

 Equipment must be installed according to the applicable country wiring

codes.

 When equipped with two HI voltage power supplies, independent AC sources

can be used to power the product for greater redundancy.

RuggedCom

18 RuggedSwitch

RSG2100
