2.6 Console Port Wiring
A RS232 console port for configuration and management of the device is located on the
LED display module shown in Figure 23. This port is intended to be a temporary
connection
during initial configuratio
n or troubleshooting and allows for direct access to
the serial-based management console. The connection is made using the DB9-Female
to RJ45 console cable included in the device packaging shown in Figure 24. Console
connection settings are:
57600 baud, no parity bits, 8 data bits, and 1 stop bit.

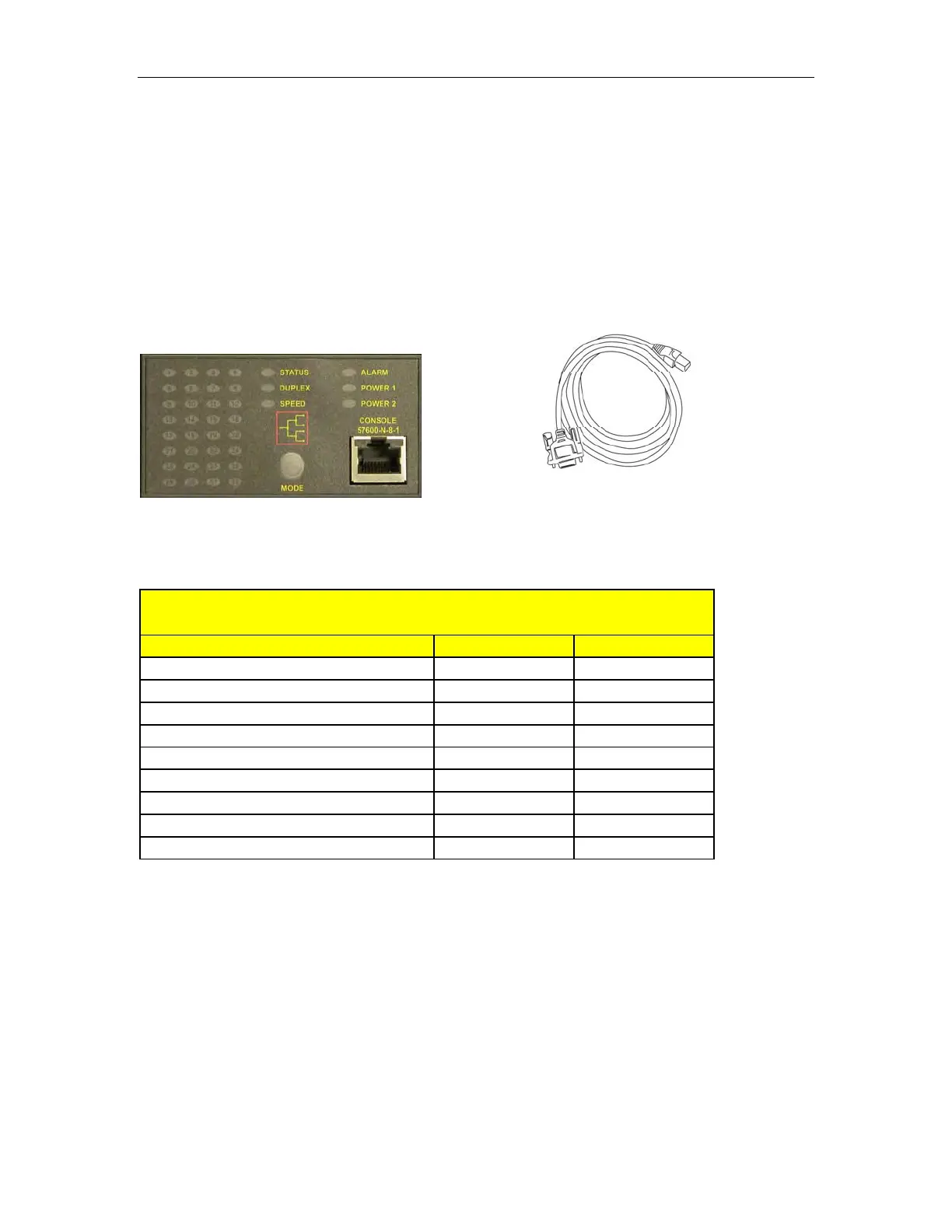

Figure 23: Console port location on display board Figure 24: RSG200 Console cable
For user reference, the console cable pin-out is shown in Table 4.
RuggedCom RS232 over RJ45 pin-out specification
Signal Name (PC is DTE) DB9- Female RJ45 Male
DCD – Carrier detect 1 2
RxD – Receive data (to DTE) 2 5
TxD – Transmit data (from DTE) 3 6
DTR – Data terminal ready 4 3
Signal GND 5 4
DSR – Data set ready 6 1*
RTS – Ready to send 7 8
CTS – Clear to send 8 7
RI – Ring Indicator 9 1*
Table 4: RS232 over RJ45 console cable pin-out
After initial configuration, the RuggedSwitch device can be configured via a number of
new mechanisms such as Telnet, Secure Shell (SSH) and the built-in web server.
Consult the RuggedSwitch
®
ROS User Guide for further details.
NOTE: This port is not intended to be a permanent connection and the cable shall be
less than 2m (6.5 ft) in length.
RuggedSwitch
®
RSG2100 23 RuggedCom
®
