RuggedCom RuggedSwitch RSG2100 User Manual

Product Overview
1.3 Mounting Flexibility
The RSG2000 series of products have been designed with maximum mounting and
display flexibility. Customers can order an RSG2000 series switch that can be mounted
in a standard 19” rack, 1” DIN Rail, or directly onto a panel. For rack mount installations,
the RSG2000 series can be ordered with connectors on the front of the unit, or can
located on the rear of the chassis to allow for all data and power cabling to be installed
and connected at the rear of the rack. See Figure 1 for rack mount orientation
examples.

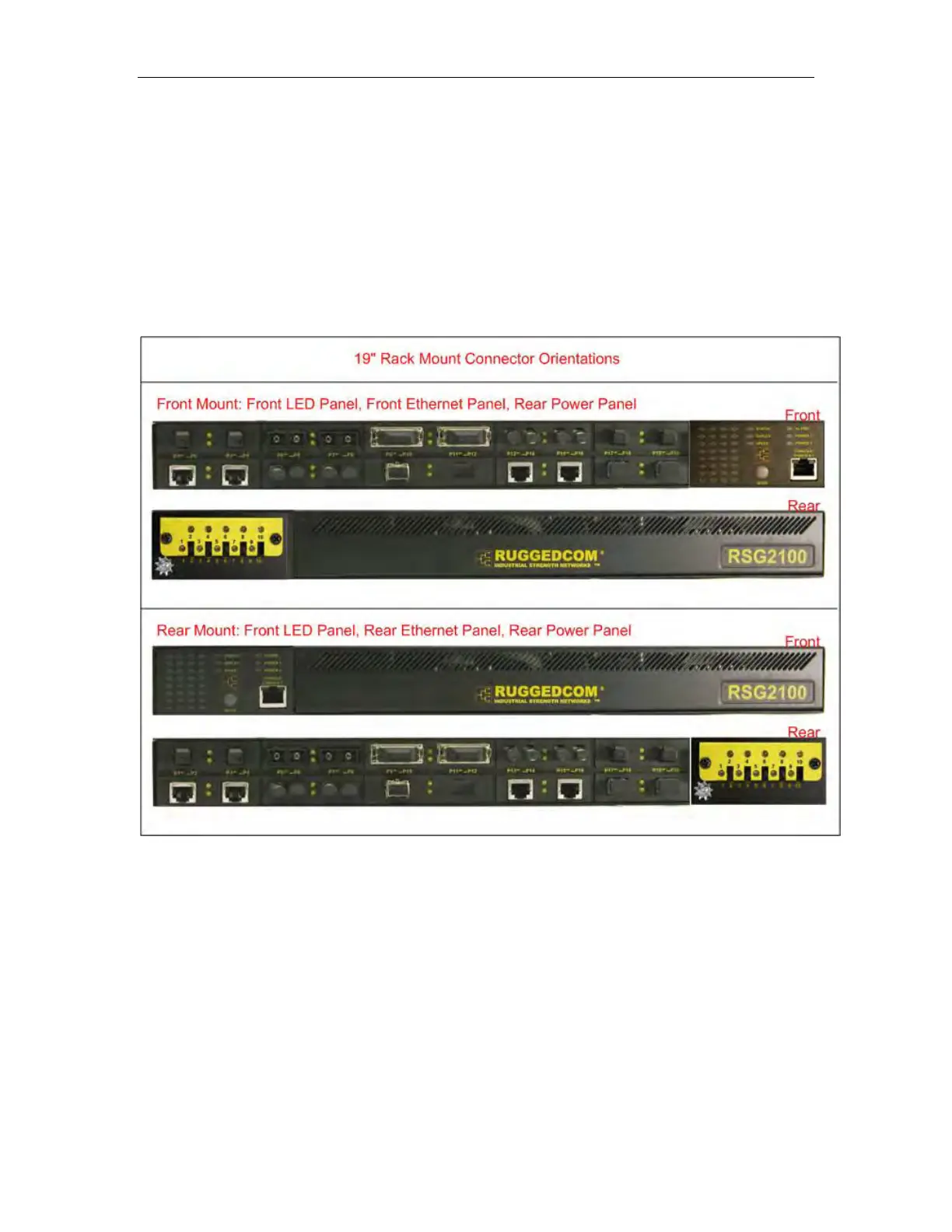

Figure 1: RSG2000 Rack mount chassis orientation options – Front and rear mount.
RuggedCom
®
8 RuggedSwitch
®
RSG2100

RuggedCom RuggedSwitch RSG2100 Specifications

General

Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Power Supply	88-300 VAC/VDC
Mounting	DIN rail or panel mount
Management	Web-based, CLI, SNMP
Protection	Surge protection
Dimensions	135 x 196 x 119 mm
Standards Compliance	IEC 61850-3, IEEE 1613, EN 50121-4
Weight	0.8 kg (1.76 lb)
