4.1.2 Panel and DIN Rail Mounting

The RSG2000 series products can be ordered as a Panel/DIN mount chassis. Both options

involve the use of the panel/DIN adapters to be mounted on each side of the chassis enclosure.

The adapter allows for the chassis to be mounted on the standard 1” DIN rail using the grooves in

the adapter, secured using the included philips screw. See Figure 5 for a PANEL/DIN mount

diagram.

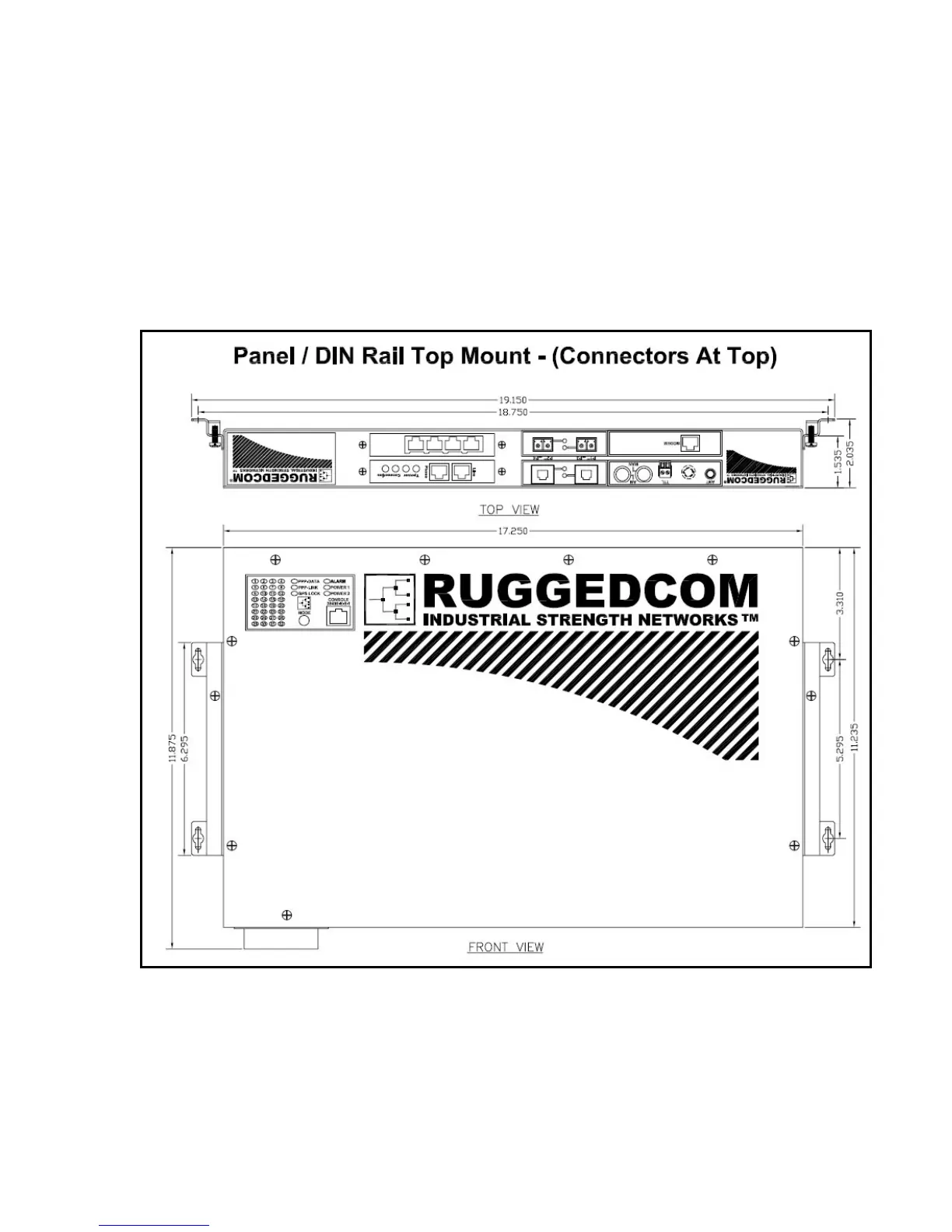

Figure 5: RSG2000 Series PANEL/DIN RAIL mounting diagram with
