RuggedCom RuggedSwitch RSG2100P - AC Power Supply (PS1) Wiring Example

4.2.1 AC Power Supply (PS1) Wiring Example

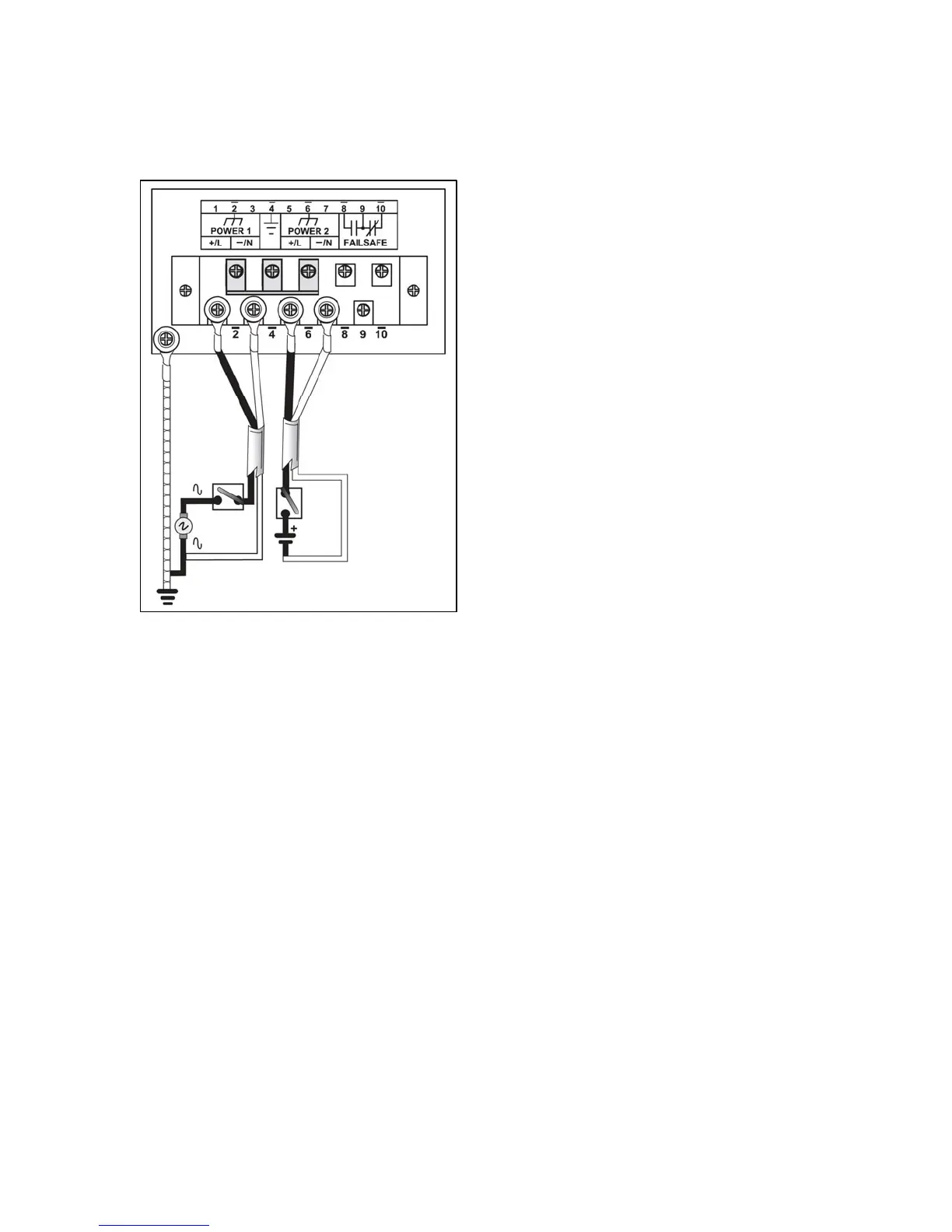

Figure 9: AC (PS1) & 48VDC (PS2) power supply wiring examples
NOTES:
1. 100-240VAC rated equipment: A 250VAC appropriately rated circuit breaker must be
installed.
2. Equipment must be installed according to the applicable country wiring codes.
