5.2 Fiber Optic Ports
Depending on the order code of the product, the RSG2000 series products can be equipped with
several different types of fiber optic ports. The Transmit (TX) and Receive (RX) connections of
each port must be properly connected and matched for proper link and operation. Modules
populated on the top row of the device typically have locking mechanisms or tabs towards the top
of the unit. Modules located on the bottom row of the device have locking mechanisms or tabs
towards the bottom of the device.

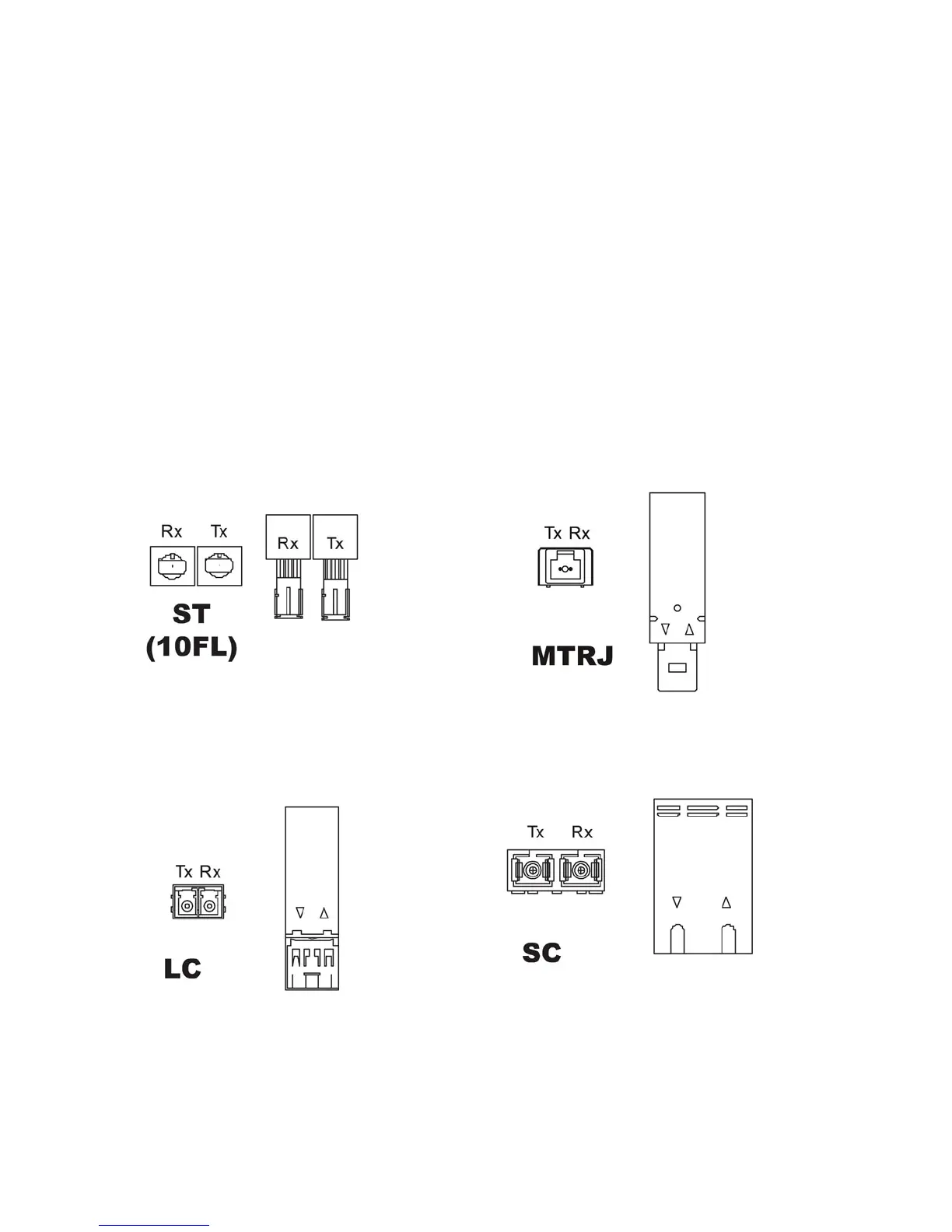

The drawings in the following figures show each fiber optical connector style with a side and top
view to allow the user to identify the proper cable connection orientation. If modules are populated
on the bottom row of the device, the transceiver orientation will be reversed (i.e. RX and TX will be
reversed).
Figure 17: 10FL ST connector
Figure 18: 100FX MTRJ connector
Figure 19: 100FX / 1000LX LC connector
Figure 20: 100FX / 1000LX SC connector
22
© 2008 RuggedCom Inc. All rights reserved Rev105
