RuggedCom RuggedSwitch RSG2100P User Manual

5.2.2.2 GBIC Module Removal
GBIC Modules have two locking latches on either side of the module shown in Figure 25. To
remove GBIC module, disconnect any cable and replace with dust cover to protect the optics.
User should depress both latches simultaneously and gently pull the module from the chassis. The
module should be immediately stored in an ESD-safe environment.

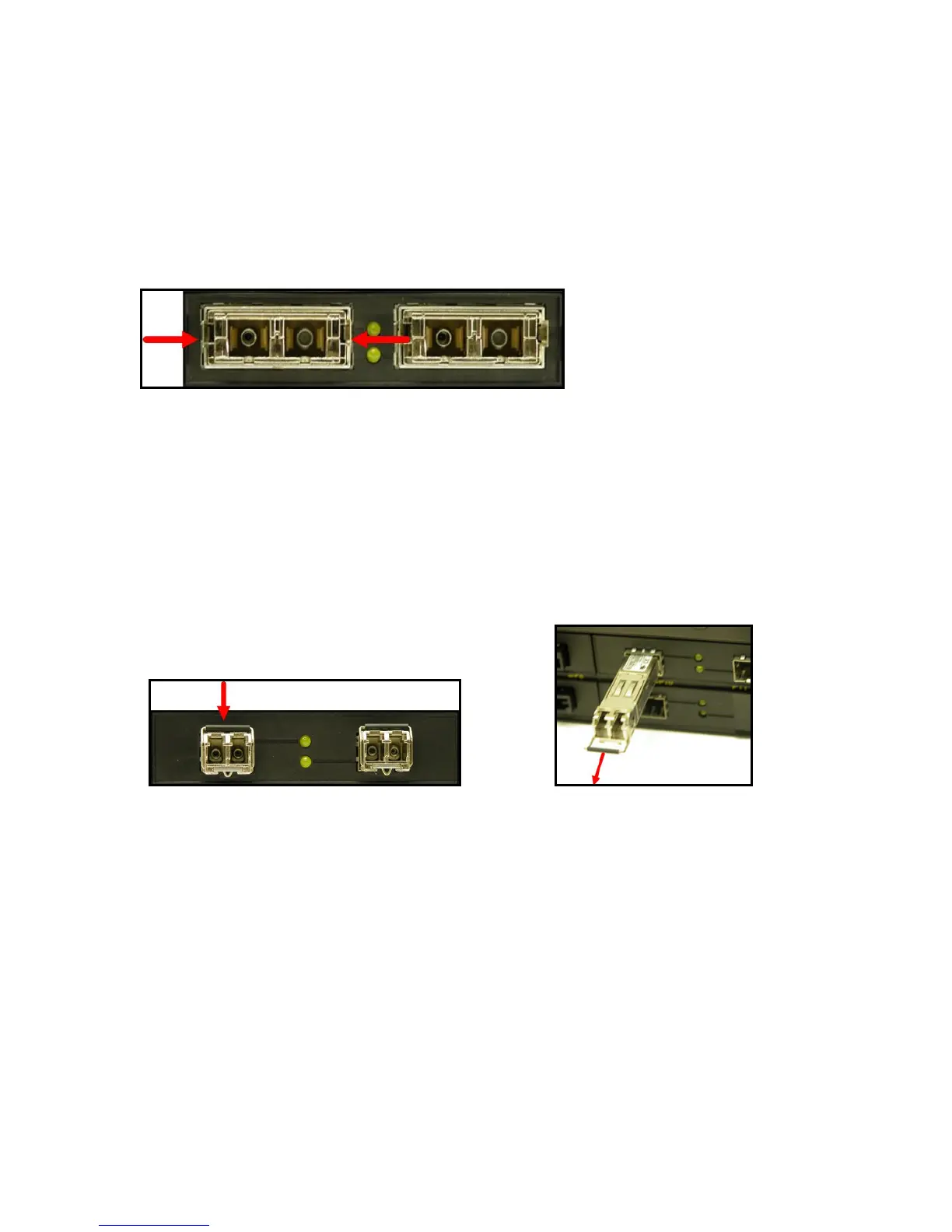

Figure 25: Locking latch location on GBIC optical modules
5.2.2.3 SFP Module Removal
SFP Modules are removed using the metal bail latch located on the top of the module shown in
Figure 26. To remove the SFP module, disconnect any cable and replace with dust cover to
protect the optics. User should grasp bail latch and gently pull outwards to unlock and remove the
SFP module. Removal of the SFP module is shown further in Figure 27. The module should be
immediately stored in an ESD-safe environment.
Figure 26: SFP Bail Latch location
Figure 27: SFP Removal
26
© 2008 RuggedCom Inc. All rights reserved Rev105
