4.2.2 DC Power Supply (PS1) Wiring Example

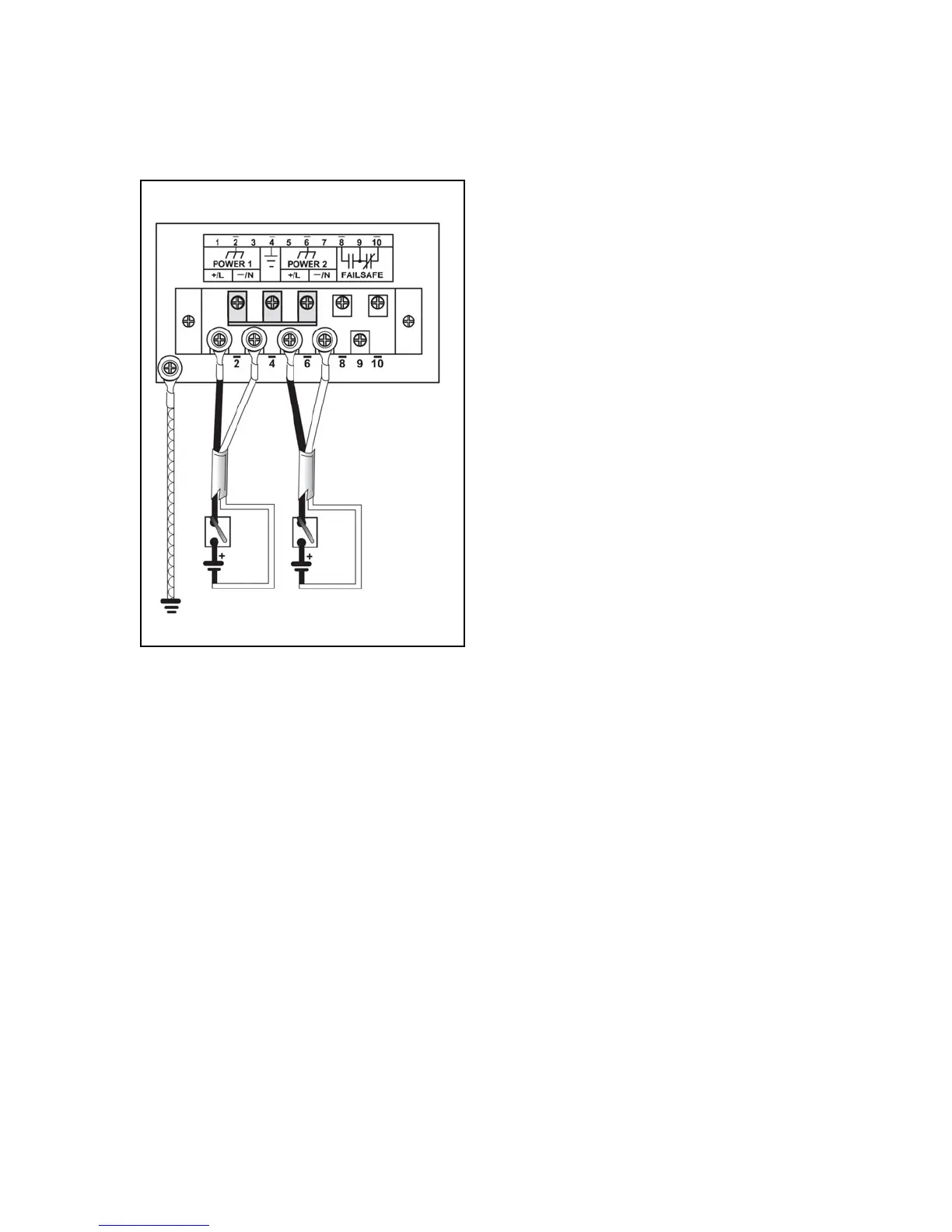

Figure 10: DC (PS1) & 48VDC (PS2) power supply wiring examples

NOTES:

1. 88-300VDC rated equipment: A 300VDC appropriately rated circuit breaker must be installed.

2. A circuit breaker is not required for 12, 24 or 48 VDC rated power supplies.

3. Equipment must be installed according to the applicable country wiring codes.
