3.1 Object Pictures of MainBoard
For more detailed pin description, see the Chapter 4: Description of Interface Signal for
MainBoard.

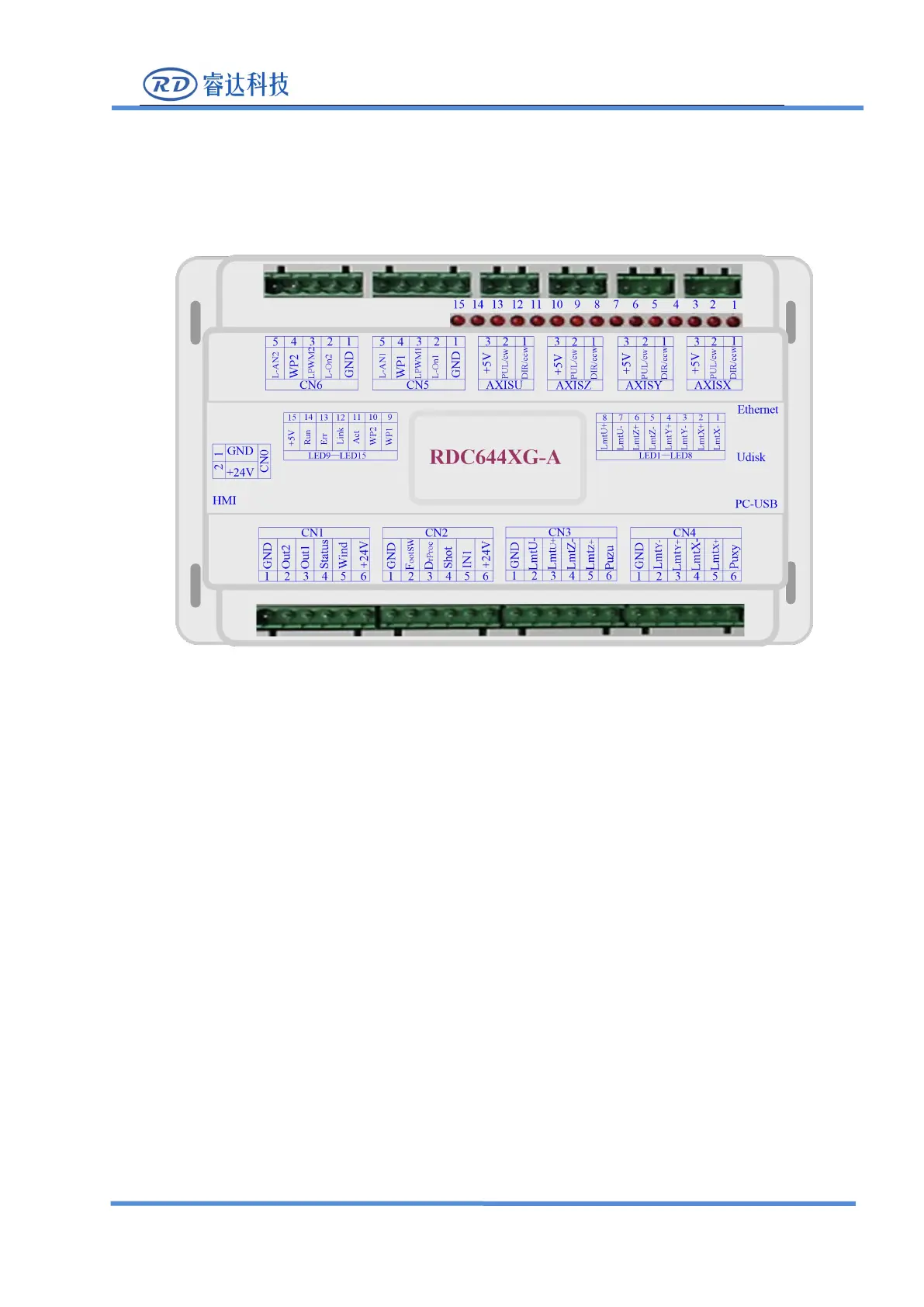

Figure: 3.1-1 Object Picture of
MainBoard
