7.2 Output
All outputs are isolated through the optocoupler, and 500mA current for each, OC gate output, each
can directly drive the 6V/24V relay, led lamp, buzzer etc.

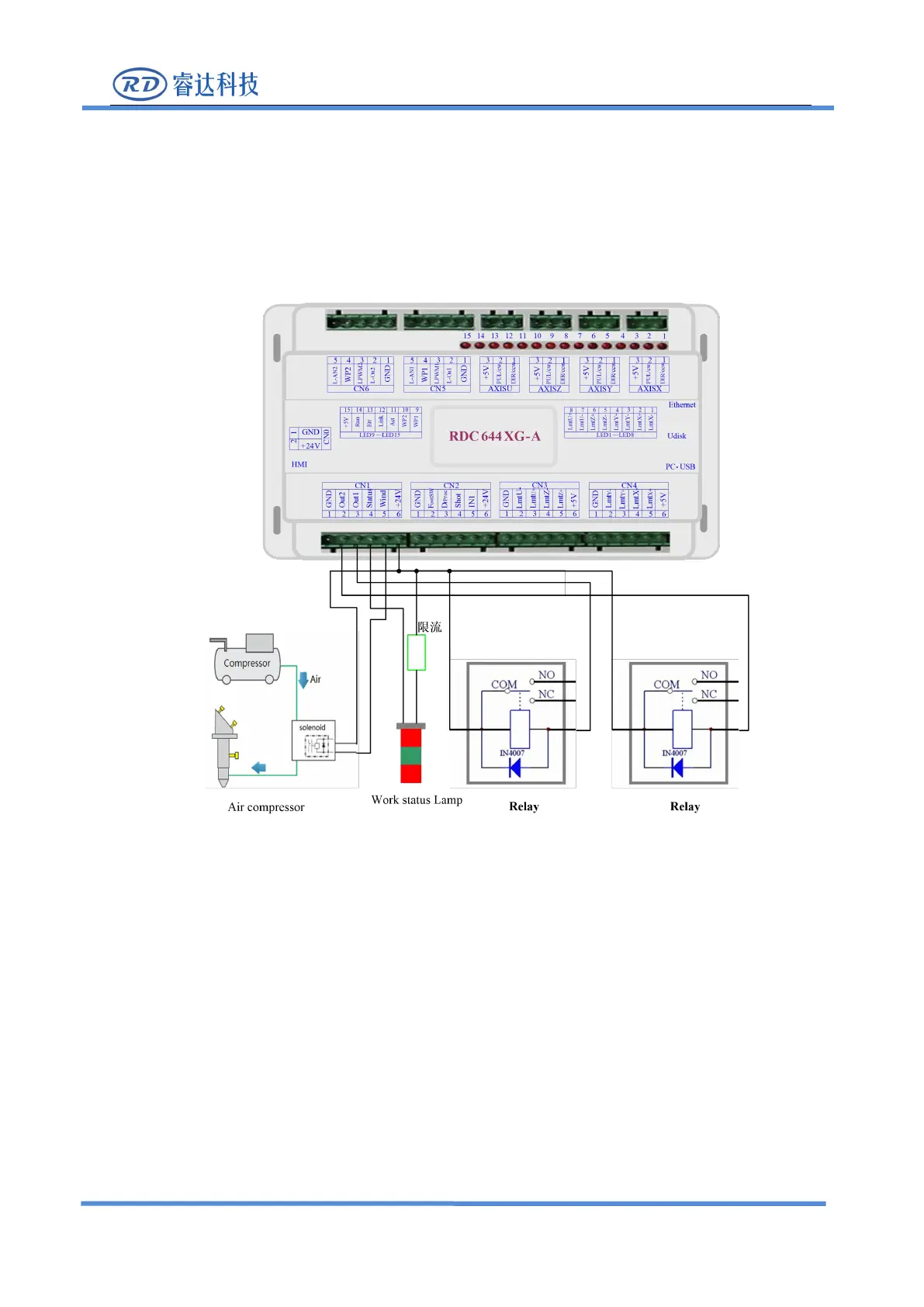

Output connection shown as below
Figure 7.2-1 example of output
