Ruida Technology RDC6445G - Axis reset; Keyboard lock

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
46
Press the <Esc> key to return to the previous menu.

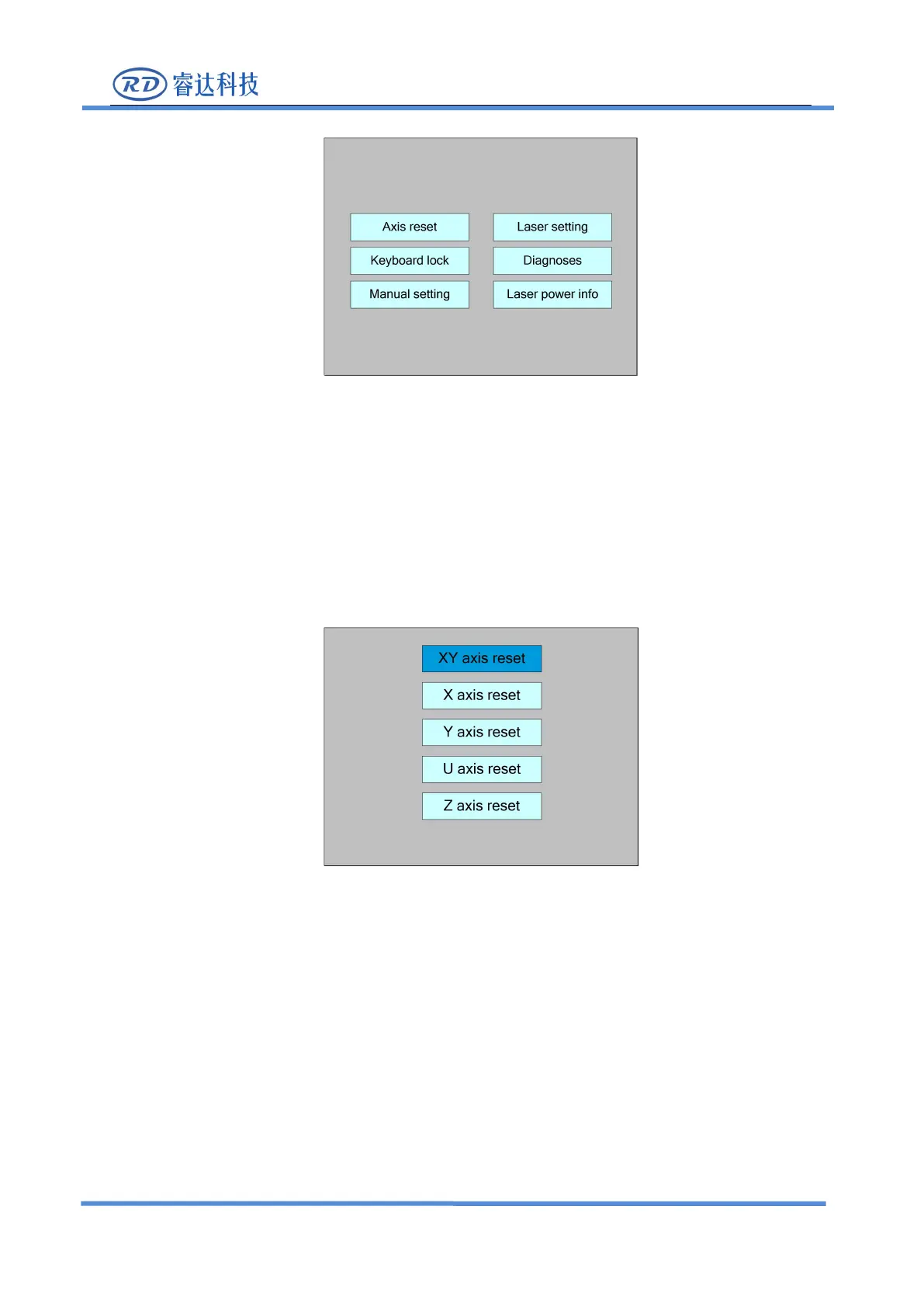

8.7.1 Axis reset
Select the "Axis reset" entry under the controller setting interface, press the <Enter> button,
and then pop up the interface as follows:
Press the direction key to select an entry and press the <Enter> key, the system performs the
axis reset, and prompts "Resetting...".
Press the <Esc> key to return to the previous menu.
8.7.2 Keyboard lock
Select the "Keyboard lock" entry under the controller setting interface, press the <Enter> button,
and then pop up the interface as follows:
Figure
8.7.1
Figure
8.7
