8.1 Brief
8.1.1 Overview
RDC6445G-HMI control panel (hereinafter referred to as "panel") is a 5.0 inch TFT LCD screen based
human-machine interface, with beautiful interface, man-machine friendly, smooth control, cost-effective
features. The panel can depict the motion track of the controller in real time, which makes the user
understand the current processing graphics at a glance, supports file management, file preview, user and
manufacturer parameter modification, and supports multi-language interface switching and other
functions.
Panel Features：
 5.0
″
TFT
 854×480 resolution
 64K color
 RS232 standard serial communication

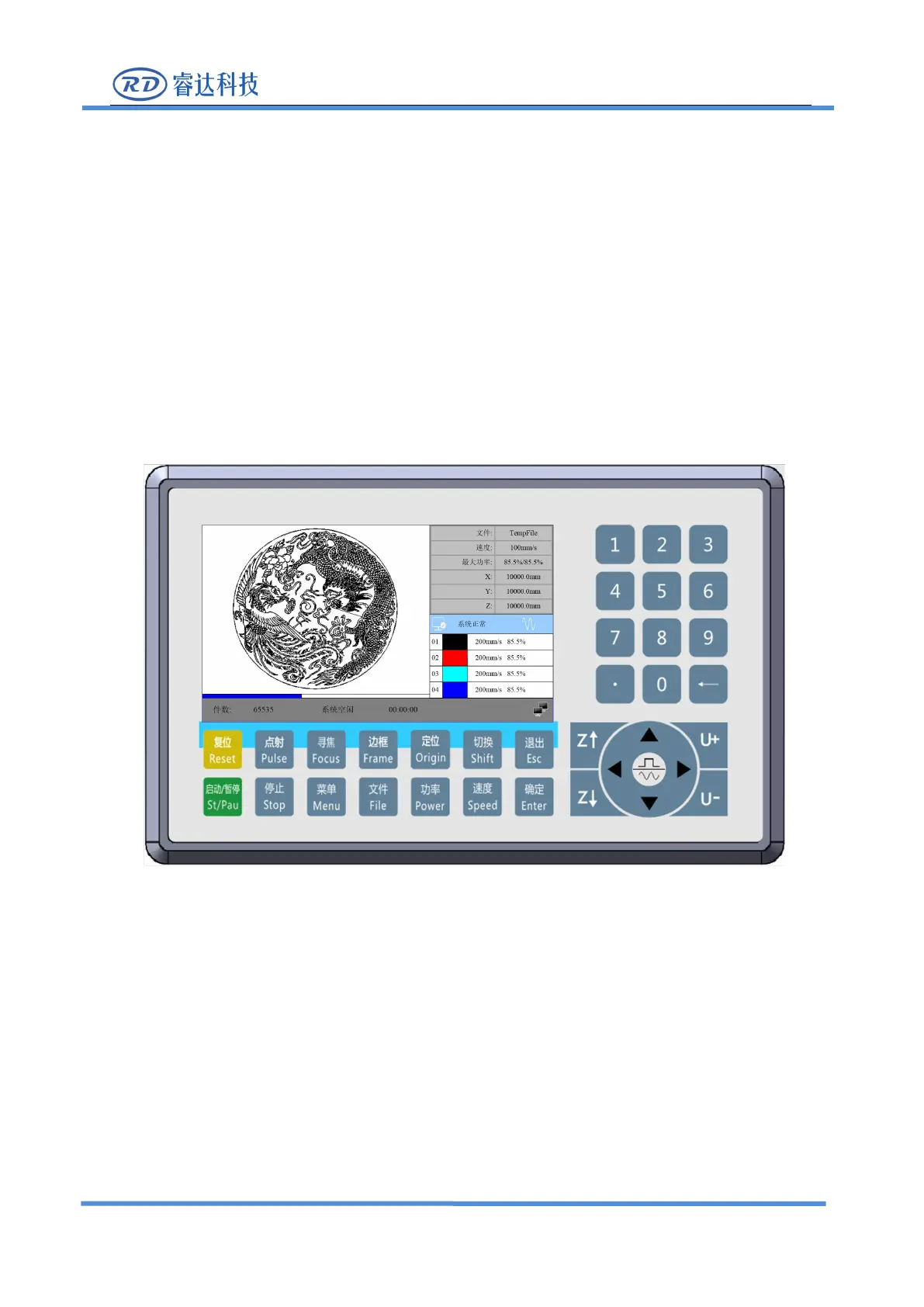

Figure 8.1.1-1 Object picture of
