Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide

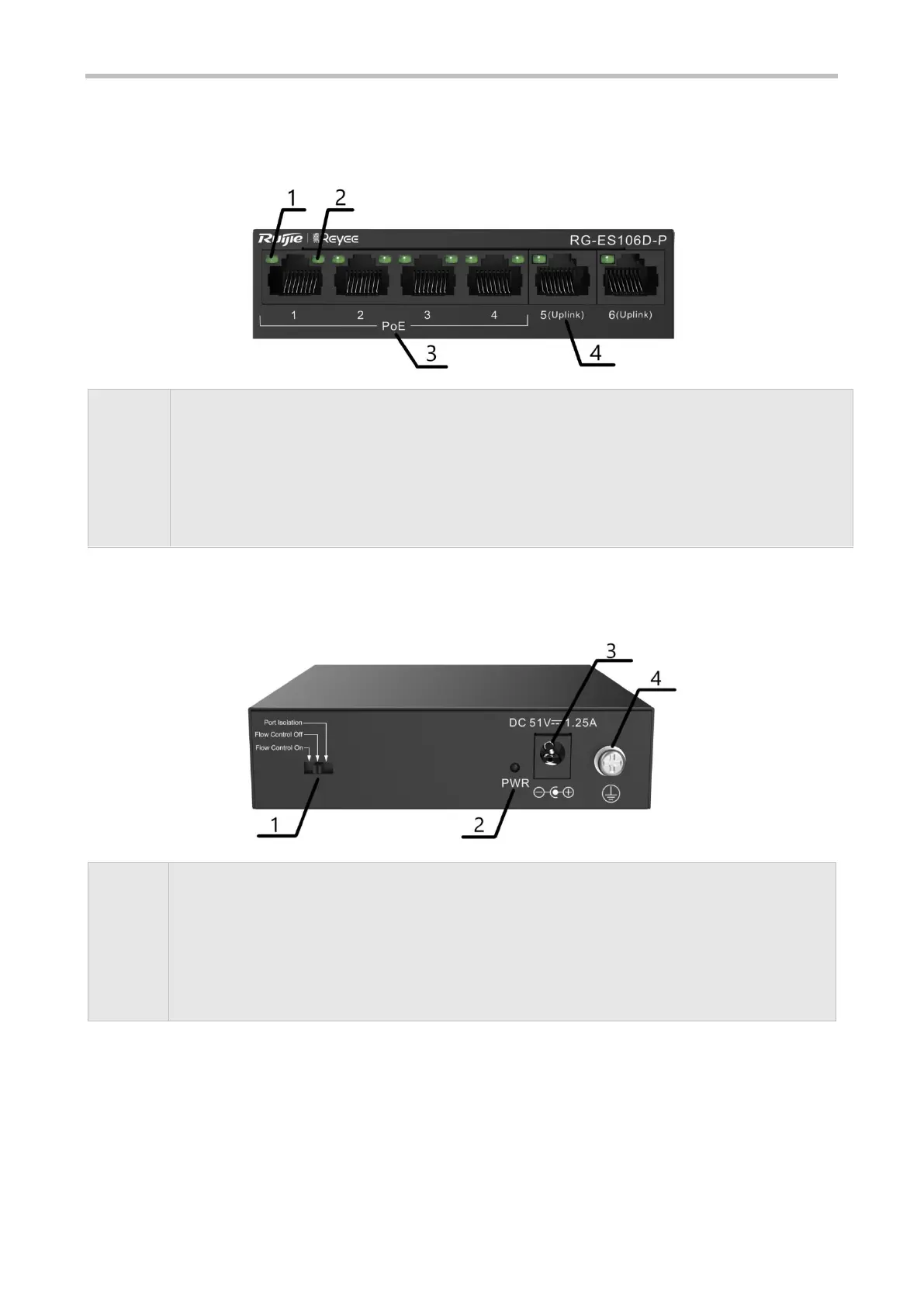

Front Panel

Figure 1-2 Front Panel of RG-ES106D-P

Note:

1. Copper port status LED

2. PoE status LED

3. 10/100Base-TX PoE port

4. 10/100Base-TX auto-sensing Ethernet port

Back Panel

Figure 1-3 Back Panel of RG-ES106D-P

Note:

1. Port mode switch-over button

2. System status LED

3. DC power socket

4. Grounding pole

Heat Dissipation

The RG-ES106D-P adopts natural heat dissipation, thereby ensuring normal function of the device. Maintain a minimum

clearance of 100 mm (3.94 in.) around the device. It is recommended to clean the device once every 3 months to avoid

dust from blocking vents.

LEDs
