4 Verifying Operating Status
4.1 Setting up Configuration Environment
Setting up Configuration Environment
Connect the PC to the management port of the switch with an Ethernet cable.

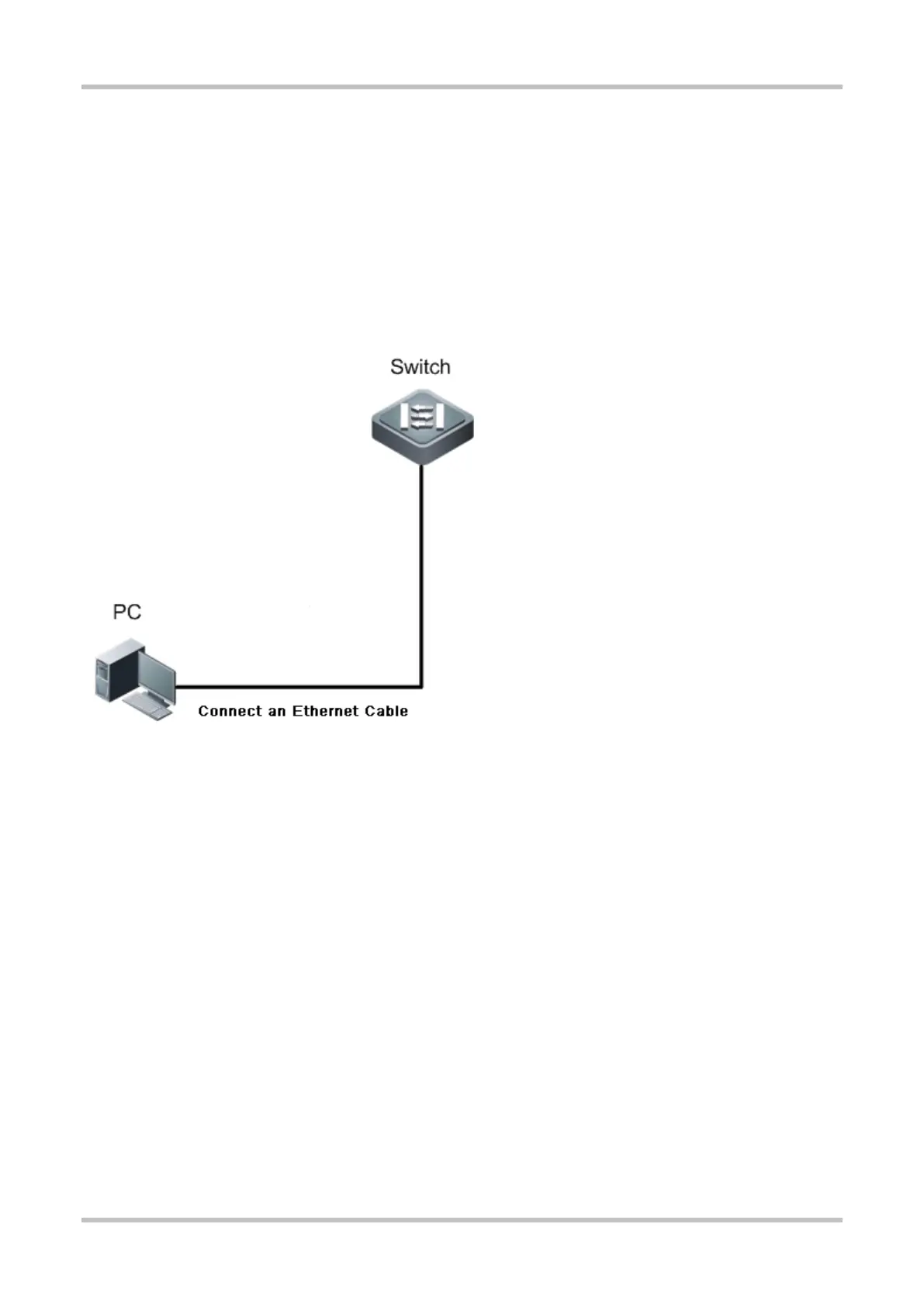

Figure 4-1 Configuring Environment
Connecting an Ethernet Cable
 Plug the crystal head of the Ethernet cable into the network port of the PC.
 Connect the RJ-45 end to the Console port on your AC.
Setting Parameters
 Start the PC and run the terminal simulation program on your PC, such as Terminal on Windows 3.1 or HyperTerminal on Windows
95/98/NT/2000/XP.
 Setting terminal parameters. Baud rate: 9600; Data bit: 8; Parity check: None; Stop bit: 1; Flow control: None. Follow the steps
below to set the parameters.
1. Navigate to Start > All Programs > Accessories > Communications and select HyperTerminal.The Location Information dialog box
will appear.
2. Click Cancel. The Connection Description dialog box will appear.
Figure 4-2
