d. Through the top strainer, insert the riser pipe into control valve and tighten control valve.
Note:
⚫ The length of riser pipe should be neither 2mm higher nor 5 mm lower than tank top
opening, and its top end should be rounded to avoid damaging of O-ring inside the valve.
⚫ Avoid filling floccules substance together with resin to the resin tank.
⚫ Avoid O-ring inside control valve falling out while rotating it on the tank.
② Install flow meter

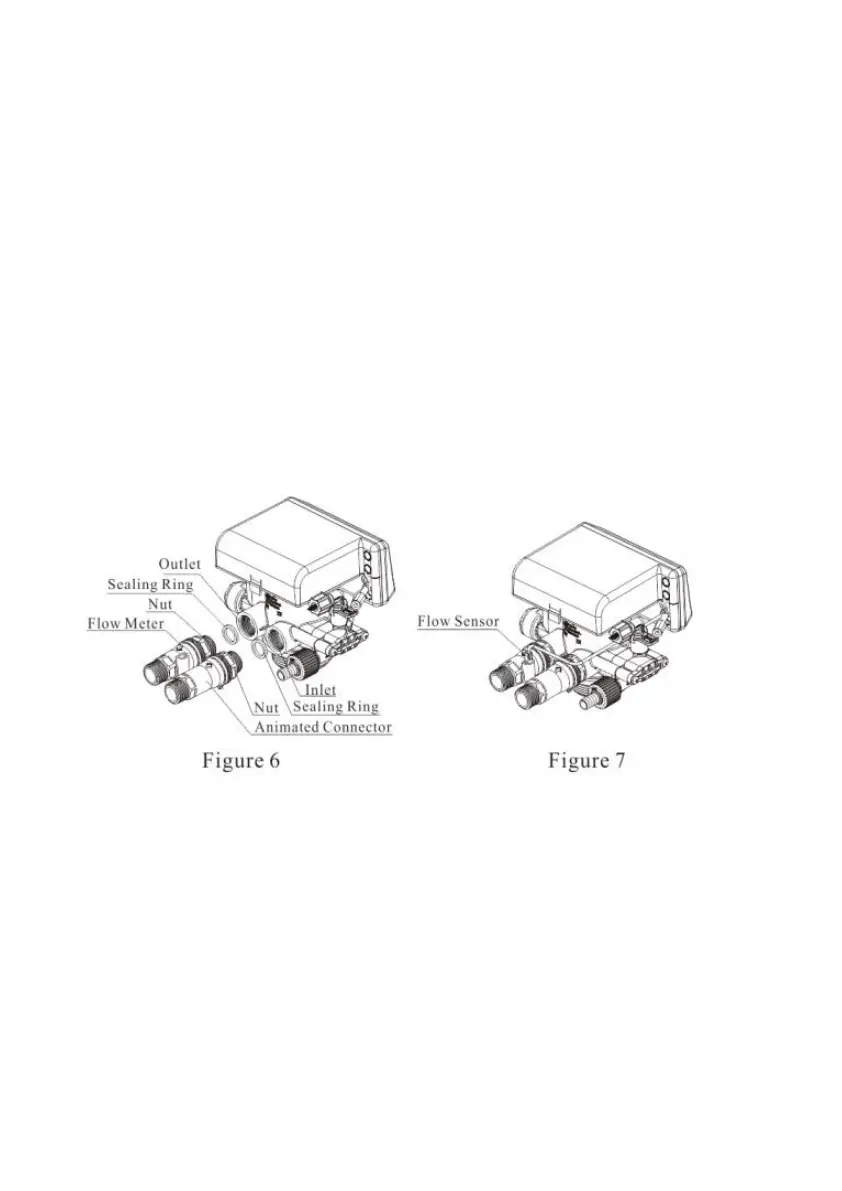

1. Put the sealing ring into the internal thread of the inlet and outlet as Figure 6 shows.
2. Tighten the flow meter with impeller to the water outlet of the valve. Tighten the animated
connector to the water inlet of the valve. Insert the plug of the flow meter as Figure 7 shows.
③ Install bypass valve
1. Unplug the clips from bypass valve, and remove the connectors on the inlet and outlet.
Be careful that the impeller does not fall off.
2. Put the sealing rings into the internal thread of the inlet and outlet, and tighten the
connectors on the inlet and outlet.
3. Connect the bypass valve assembly into the connector on the inlet and outlet and insert
the clips.
4. Insert the flow meter sensor pin into the outlet with the impeller.
