10

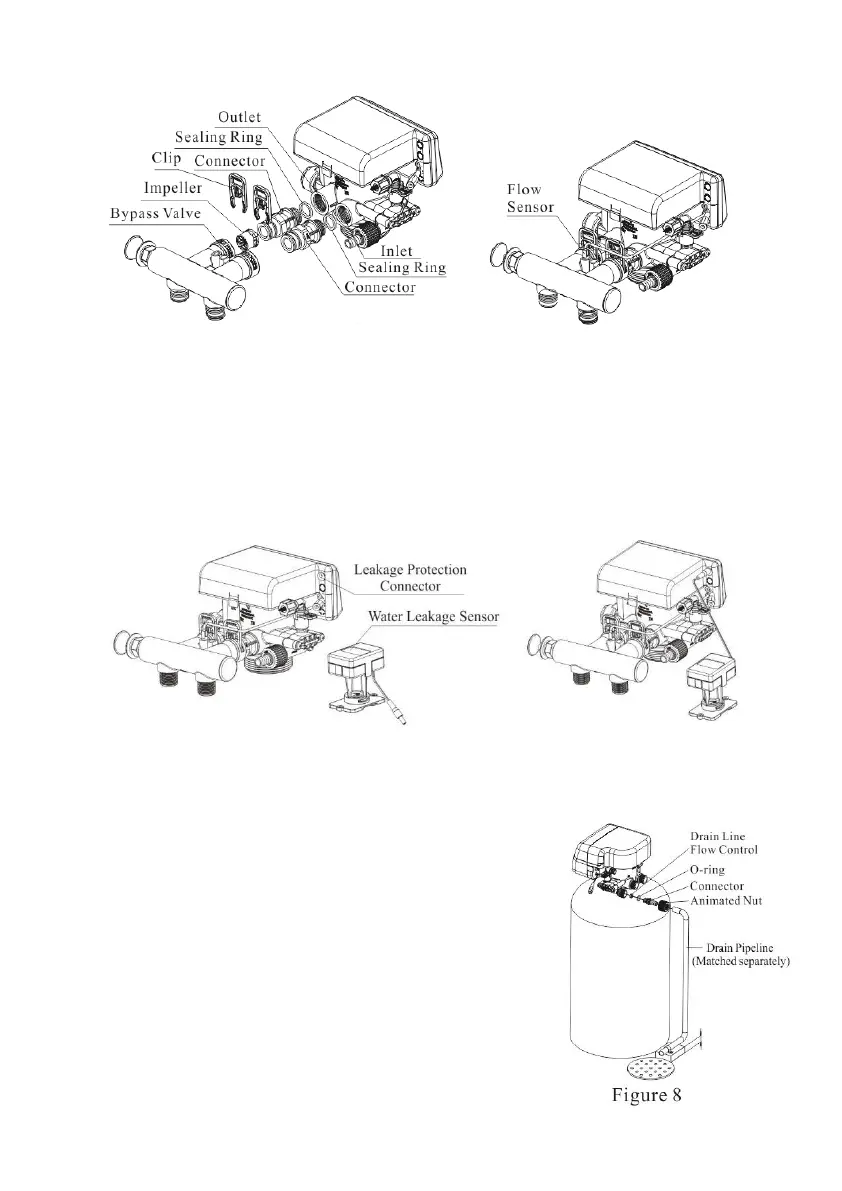

④ Install leakage sensors
1. Insert the plug of leakage sensor into the connector on the valve as figure shows.
2. Put the leakage sensor on the place where is most easily contact water when leakage
happens.
⑤ Install drain pipeline
a. As the Figure 8 shows, put the DLFC into the drain
outlet.
b. Insert O-ring to the O-ring groove of the drain connector
c. Insert drain hose into drain connector.
d. Screw drain hose connector into drain outlet, and lock it.
e. Locate the drain hose well as the Figure 8 shows.
Note:
●Drain outlet should be lower than control valve, it
To Next Page
