DESCRIPTION OF THE INSTRUMENT
Carl Zeiss Control and functional elements on microscope Axio Lab.A1
36 430037-7144-001 04/2013
2.4.7 Ergo stands with TÜV certificate "Ergonomically tested"

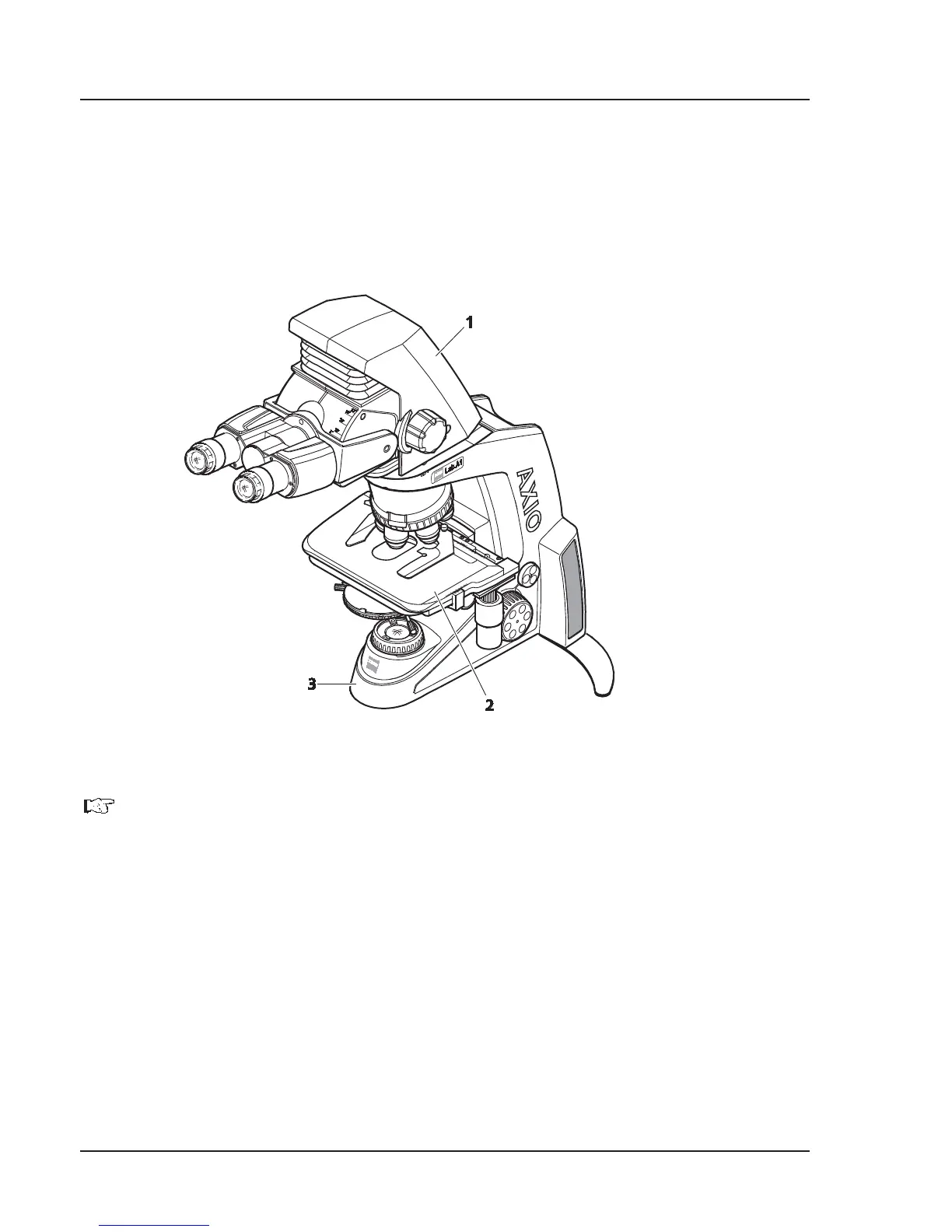

Key to Fig. 2-6:
1 Binocular ergo tube 8-33°, 50 mm vertically adjustable
2 Mechanical stage 75x30 ergonomic with stationary drive
3 Stand for transmitted light and reflected light fluorescence
Fig. 2-6 Axio Lab.A1 ergonomic stand with TÜV certificate "Ergonomically tested"
Further information on the ergonomically correct setting of the microscope and its ergonomic
operation can be found in Section 3.5.
