2.5.2 Microscope stages
Mechanical stage 75x30 R or L or mechanical
stage 75x30 R ergonomic with stationary drive
 Mechanical stage (Fig. 2-14/7) for seating,
positioning and securing specimens with
specimen holder.
 Specimen holder (Fig. 2-14/2) for single-
handed operation or specimen holder for
counting chambers (replaceable after
loosening the two knurled screws,
Fig. 2-14/1).
 Drive knobs for X (Fig. 2-14/6) and Y
adjustment (Fig. 2-14/5).
The drive knobs for X and Y can be adjusted
to suit the personal needs of the user, both
in height and friction. The required tools
(Fig. 2-14/8) are located in the upper drive
knob.
 Vernier scale for display of adjustment
range in X (Fig. 2-14/3) and Y direction
(Fig. 2-14/4).
 Drive knobs on right (R) or left (L) side
depending on model.
 Furthermore, a mechanical stage
(Fig. 2-15/1) with ergonomic, stationary X-Y
drive (Fig. 2-15/2) is located on the right-
hand side.
Mechanical stage reflected light 75x30 R
 Mechanical stage (Fig. 2-16/2) for seating,
positioning and securing specimens with
specimen holding plate (Fig. 2-16/1) with
spring clips.
 Drive knobs for X and Y adjustment on right-
hand side.
 Vernier scale for display of adjustment range
in X and Y direction.
 Removable specimen holding plate (after
loosening the two knurled screws).

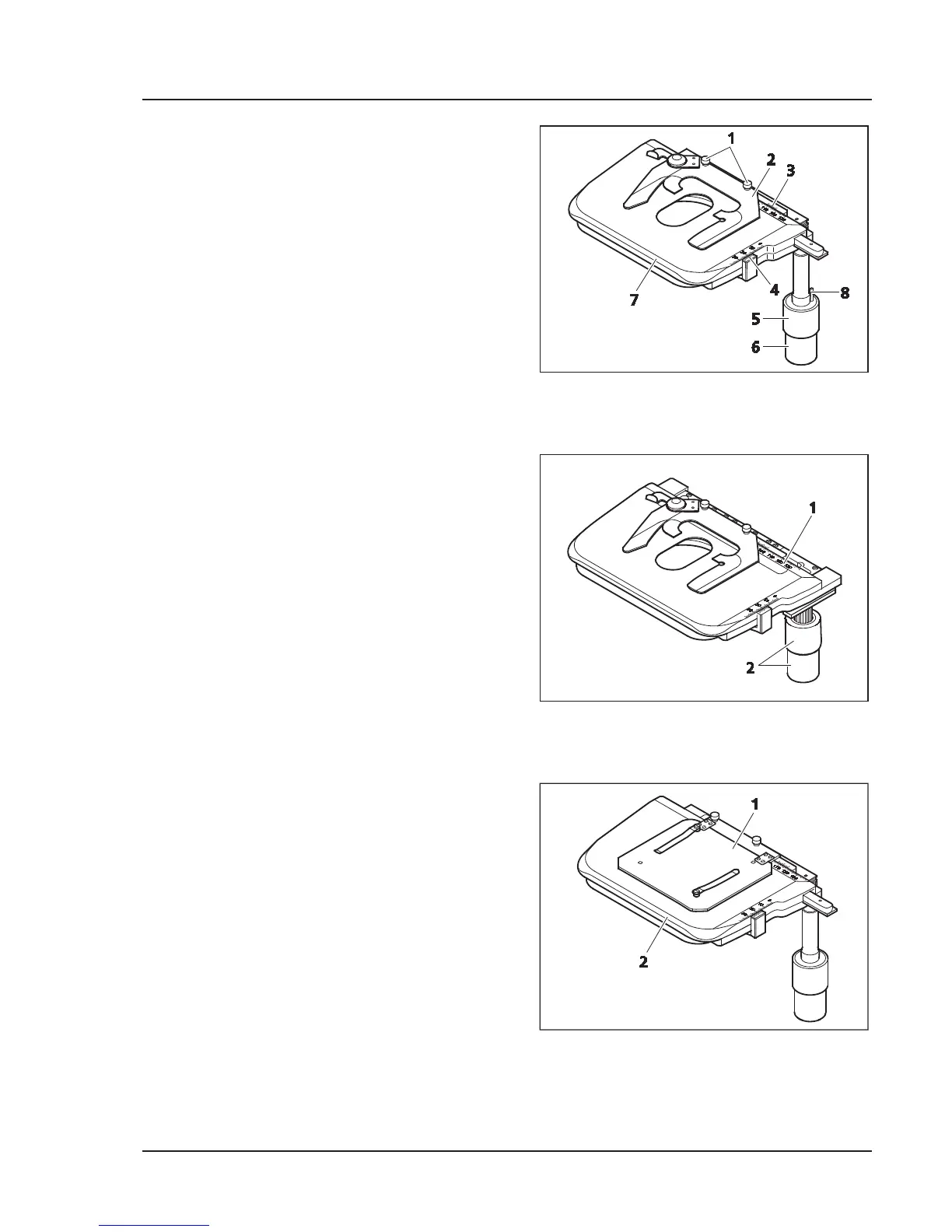

Fig. 2-14 Mechanical stage 75x30 R with
specimen holder
Fig. 2-15 Mechanical stage 75x30 R
ergonomic with stationary drive
Fig. 2-16 Mechanical stage reflected light
75x30 R with specimen holding
plate
