DESCRIPTION OF THE INSTRUMENT
Carl Zeiss Control and functional elements on optional components Axio Lab.A1
42 430037-7144-001 04/2013
Rotary stage Pol 360° with lock
Rotary stage Pol (Fig. 2-17) for seating,
positioning and securing specimens with
specimen guide (Fig. 2-17/5) and specimen
holder (Fig. 2-17/7).
360° rotation with lock using knurled screw
(Fig. 2-17/6).
Angle of rotation with vernier scale
(Fig. 2-17/1) readable on angle scale.
Specimen guide (Fig. 2-17/5) removable
(after loosening clamp screw, Fig. 2-17/4;
two cylindrical pins on the underside serve as
orientation for mounting the specimen guide
on the rotary stage).
Specimen guide equipped with specimen
holder which can be shifted in X and Y
direction using drive knobs (Fig. 2-17/3 and
2). The shift in X and Y direction can be read
off via the two vernier scales on the
respective scale.
Filter mount on luminous-field diaphragm
operating ring for filter 32x4 mm
Place the filter (Fig. 2-18/2) on the luminous-
field diaphragm operating ring (Fig. 2-18/3).
To secure the filter insert the filter clamp
(Fig. 2-18/1) on the luminous-field
diaphragm operating ring.
To replace the filter, grip the recesses of the
filter clamp and pull it off the luminous-field
diaphragm operating ring.

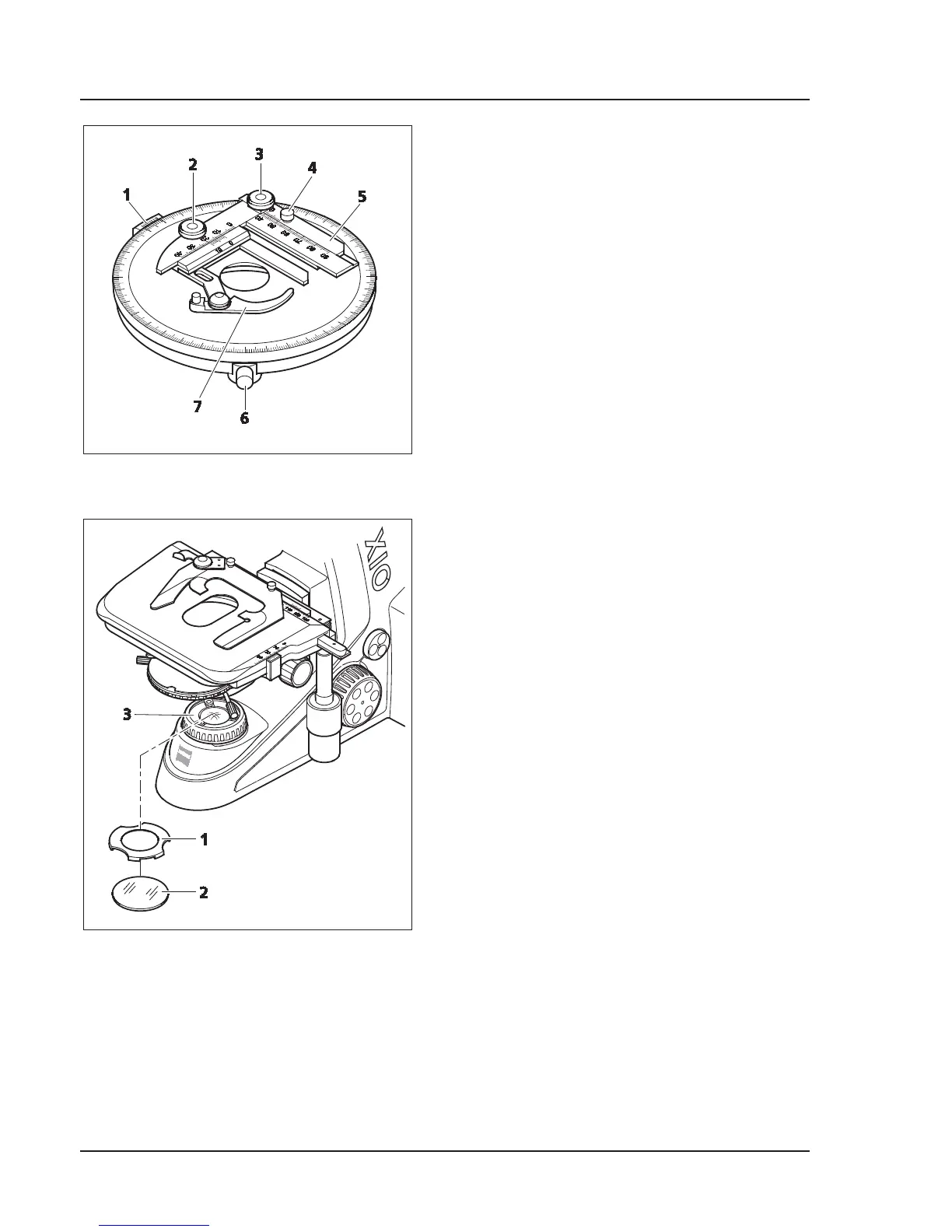

Fig. 2-17 Rotary stage Pol
Fig. 2-18 Filter mount on luminous-field
diaphragm operating ring for filter
d=32x4 mm
