DESCRIPTION OF THE INSTRUMENT
Axio Lab.A1 Control and functional elements on optional components Carl Zeiss
04/2013 430037-7144-001 43
2.5.3 Condensers
Condenser 0.9/1.25 H, D, Ph1, Ph2, Ph3
Condenser 0.9/1.25 H (Fig. 2-19/1) with aperture
diaphragm (Fig. 2-19/4) with modulator disk
(Fig. 2-19/3) for:
Brightfield (H)
Darkfield (D)
Phase contrast Ph 1, Ph 2, Ph 3
Position adjustment of modulator disk by
turning knurled ring (Fig. 2-19/2).
This condenser is also available without modulator
disk, i.e. only brightfield.
Condenser 0.9/1.25 H
Condenser 0.9 H (Fig. 2-20/1) with aperture
diaphragm (Fig. 2-20/2) for brightfield
This condenser is also available with a modulator
disk.

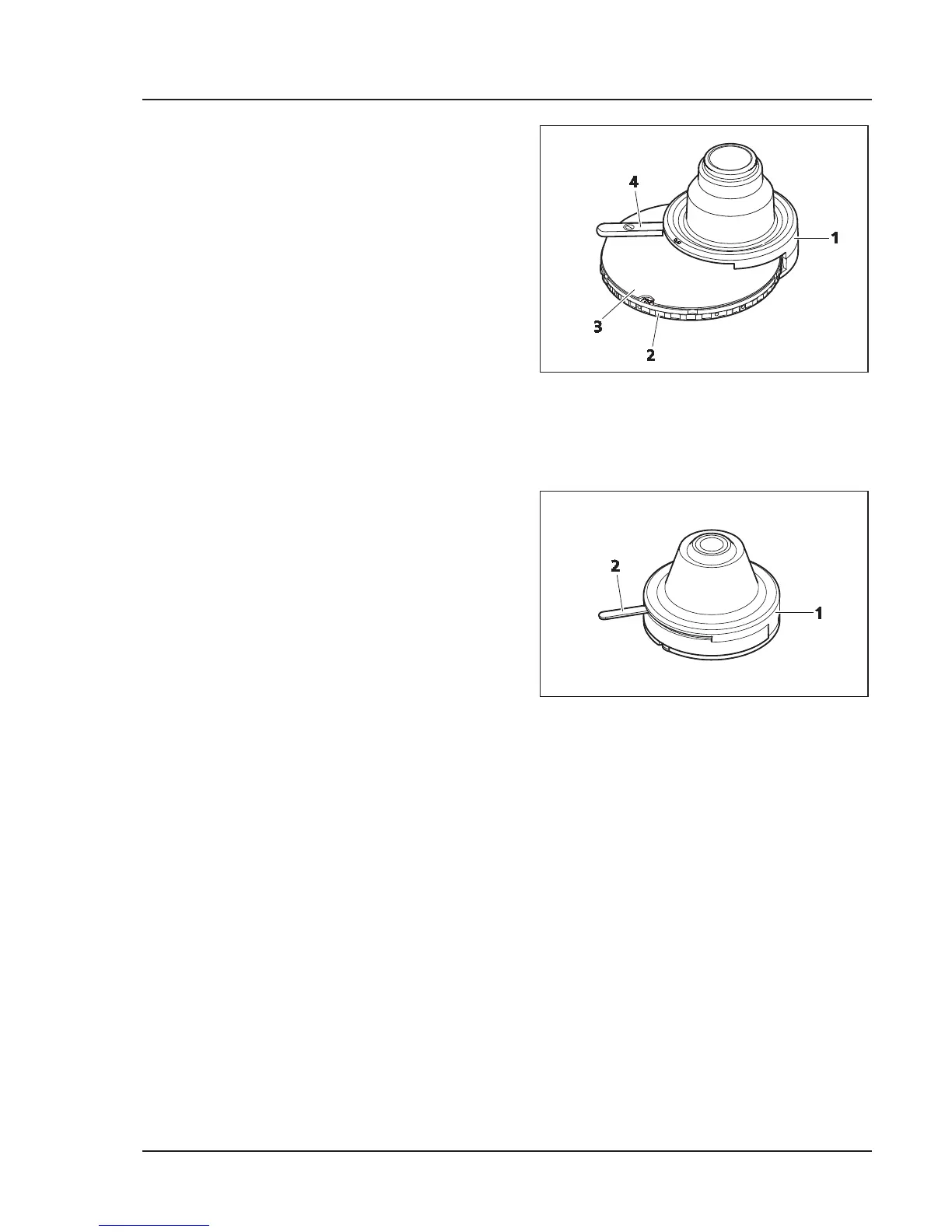

Fig. 2-19 Condenser 0.9/1.25 H, D, Ph1, Ph2,
Ph3 with modulator disk
Fig. 2-20 Condenser 0.9/1.25 H
