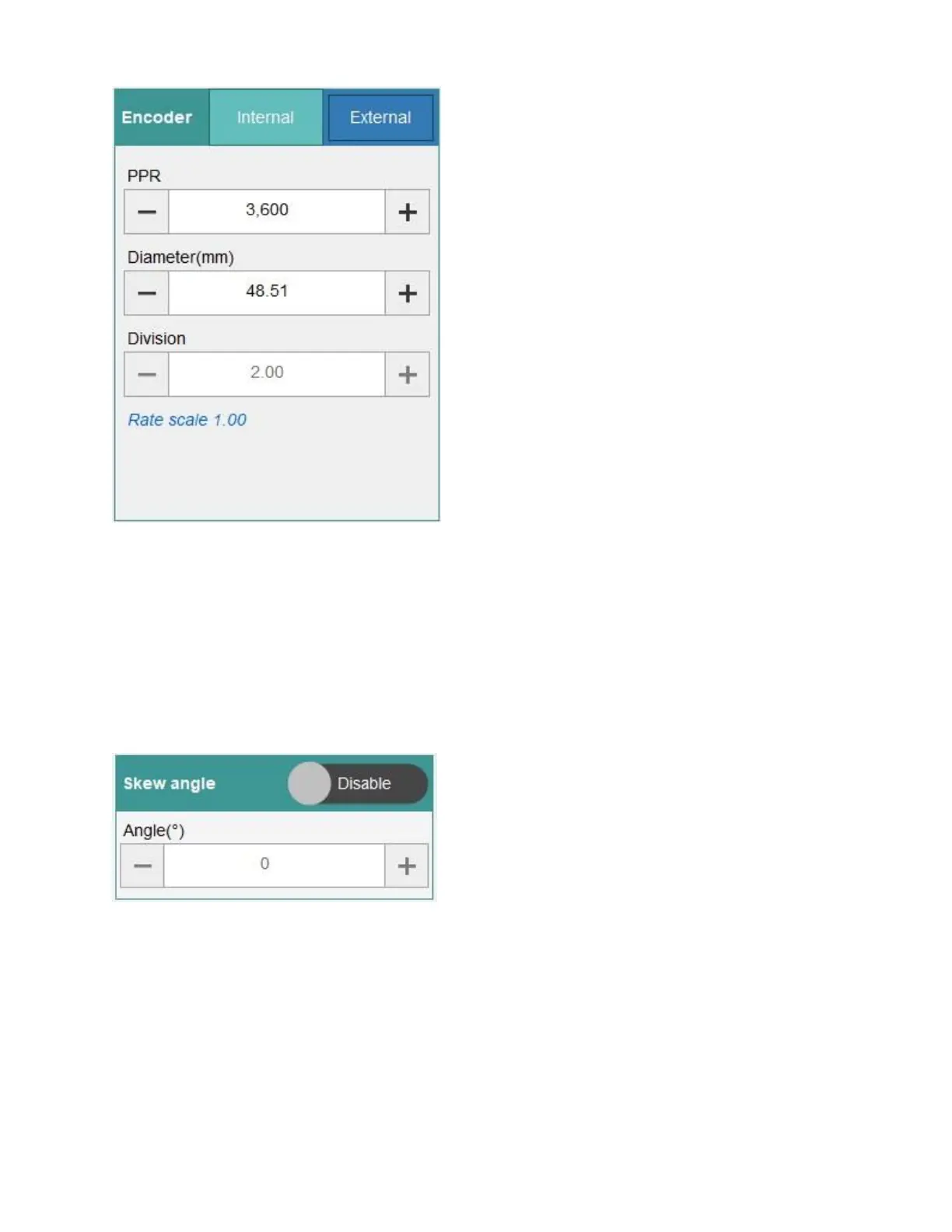

External Encoder
Enable this option to allow received the speed parameter from a rotary encoder. The encoder
hardware must to connect to controller. PPR: 3600 (Default with our standard encoder),
Diameter(mm): 48.51 (Default with our standard encoder). Rate scale is 1.00.
If the encoder parameters are inconsistent, it will affect the print quality so please follow
encoder formula (Page 15).
6.3.2.b. Skew angel
Allows users to rotate printing message with the desired angle.
Minimum value is -25 and maximum value is 25.
6.3.2.c. Print mode
Allow user control which mode the printer should be used to print.
Sensor mode: Internal or External
Machine is triggered by sensor and print.
Repeat sensor
Repeat sensor is number of printing times that you need to print for each sensor signal.
