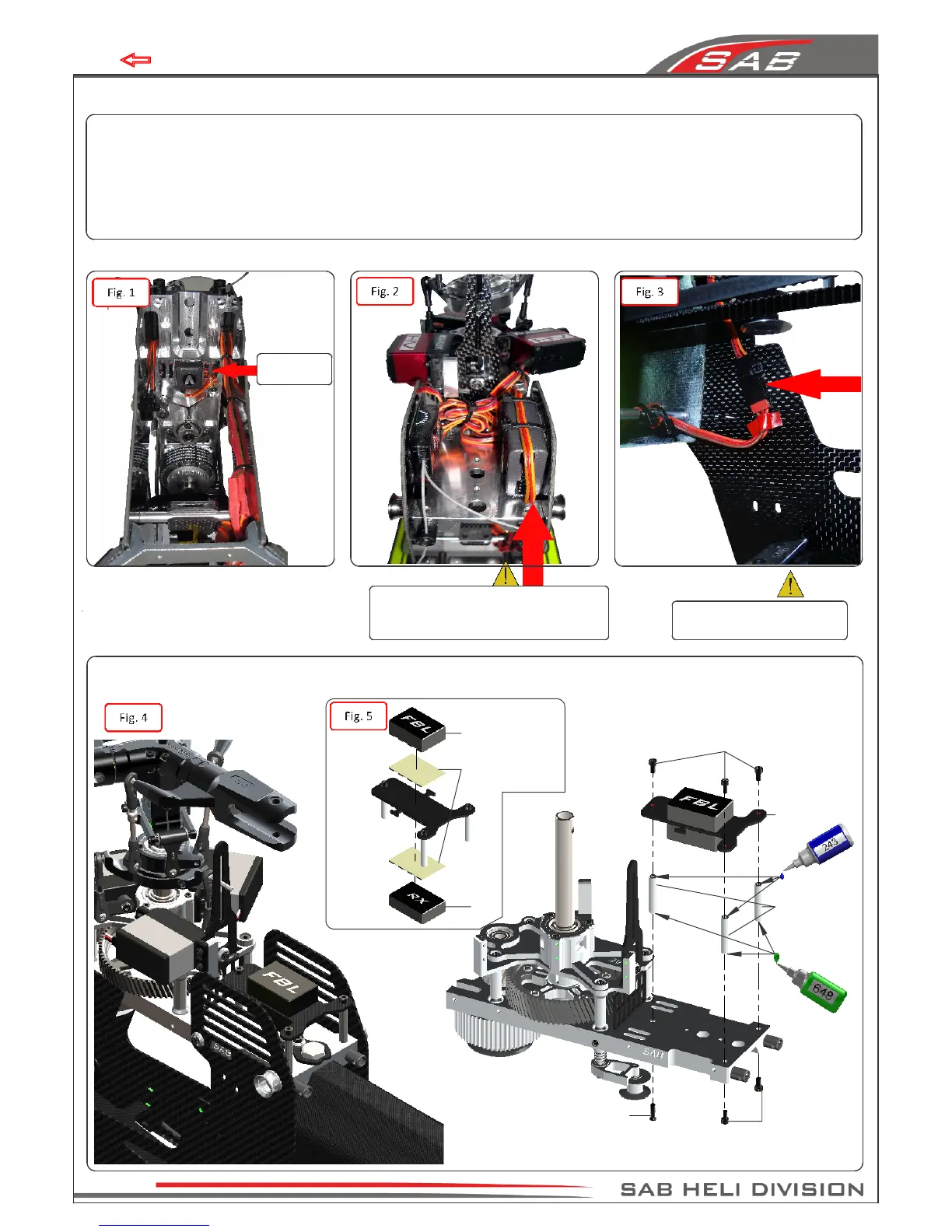

FLYBARLESS CONTROL UNIT AND RX INSTALLATION
It is possible to install any commercially available Flybarless control unit in the goblin.
For Flybarless systems with a separate sensor, the sensor must be installed under the plate (
Figure 1
).
Figure 2
shows an example of installation of the receiver and flybarless control unit.
In
Figure 3
you can see the extension lead for the tail servo. It is very important to include a connector for fast
disassembly of the boom module. The connector will prevent servo damage in case of boom separation during a crash.
Slot for
sensor cable
It is important to lock the plugs of the
flybarless unit with an adhesive - for
example hot glue.
Tail servo extension cable
To install a one piece Flybarless system it is necessary to add the support shown in these figures.
Figure 3 shows the installed support. Figure 4 shows the control unit and the receiver installed on the support.
Support
Flybarless
(H0043-S)
Spacer Support
Flybarless
(H0043-S)
RX
Flate Head Cap
Screw M3x8mm
(HC134-S)
Socket Head Cap
Screw M3x6mm
(HC044-S)
Flybarless Unit
Socket Head Cap
Screw M3x6mm
(HC044-S)
Double-sided
Tape
BAG 18
Page 20
Chapter 11, Installation Of Flybarless Unit and RX
