SAB Goblin 700 - Chapter 13, Installation Of The Boom; BOOM ASSEMBLY

0.75 mm

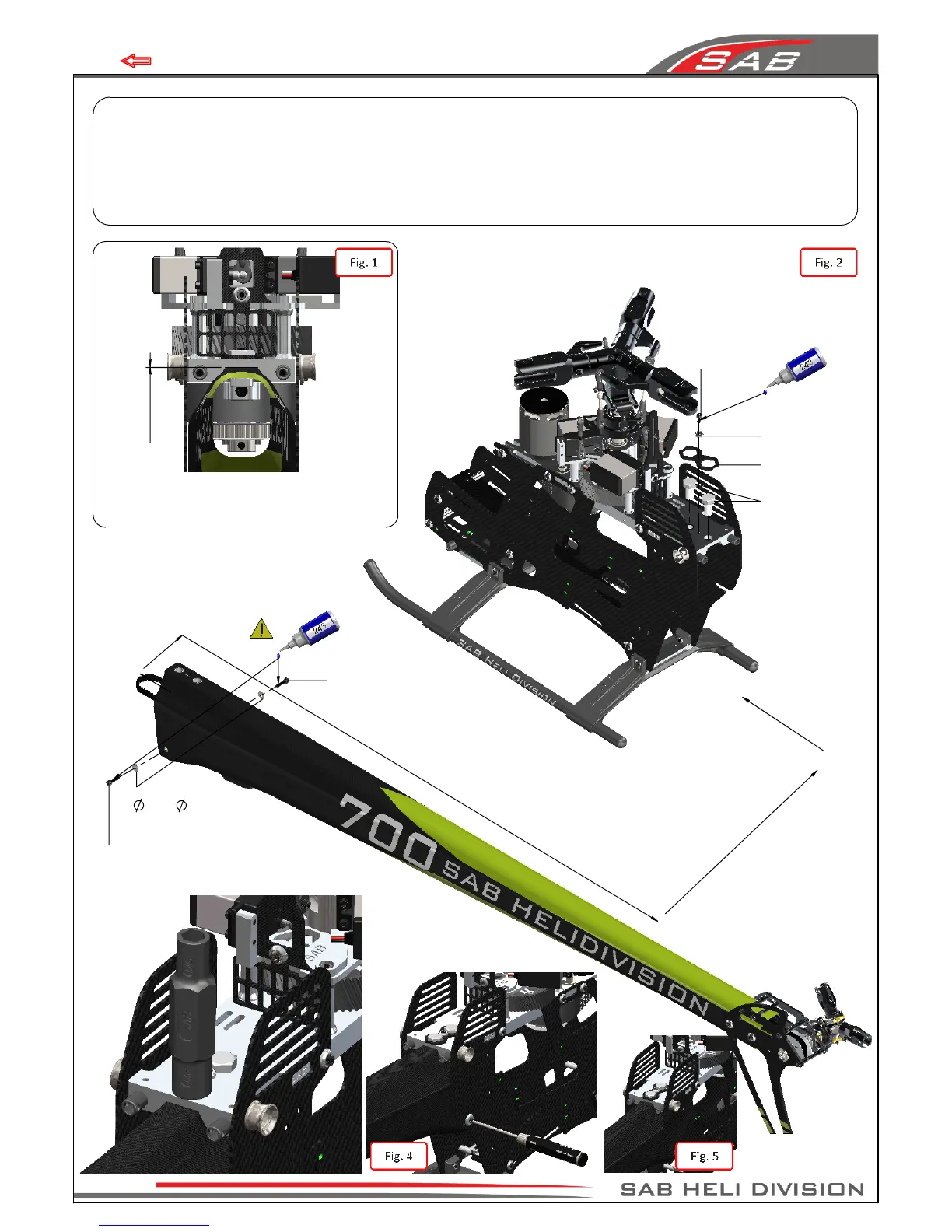

BOOM ASSEMBLY
*Insert the tail boom assembly .
*Lock the M8 nuts with the HA016 special tool supplied.
*Firmly lock the lateral srews M3x12mm. Use Loctile for this screw and make sure you remain tight.
*Assemble the H0038 carbon security plate .
*Connect the tail servo wire to the previously fitted extension lead.
Nylon Screw
M8x20mm
(HC165-S)
Note: Between the boom and the aluminum plate,
there is a space of around 0.75mm.
Look the picture.
Socket Head Cap
Screw M3x6mm
(HC044-S)
Finishing Washer
(H0007-S)
Socket Head Cap
Screw M3x12mm
(HC062-S)
Washer
3.1x 12x18mm
(H0078-S)
Socket Head Cap
Screw M3x12mm
(HC062-S)
Safety Locking
Tail Boom
(H0038-S)
BAG 17
Page 26
Chapter 13, Installation Of The Boom
