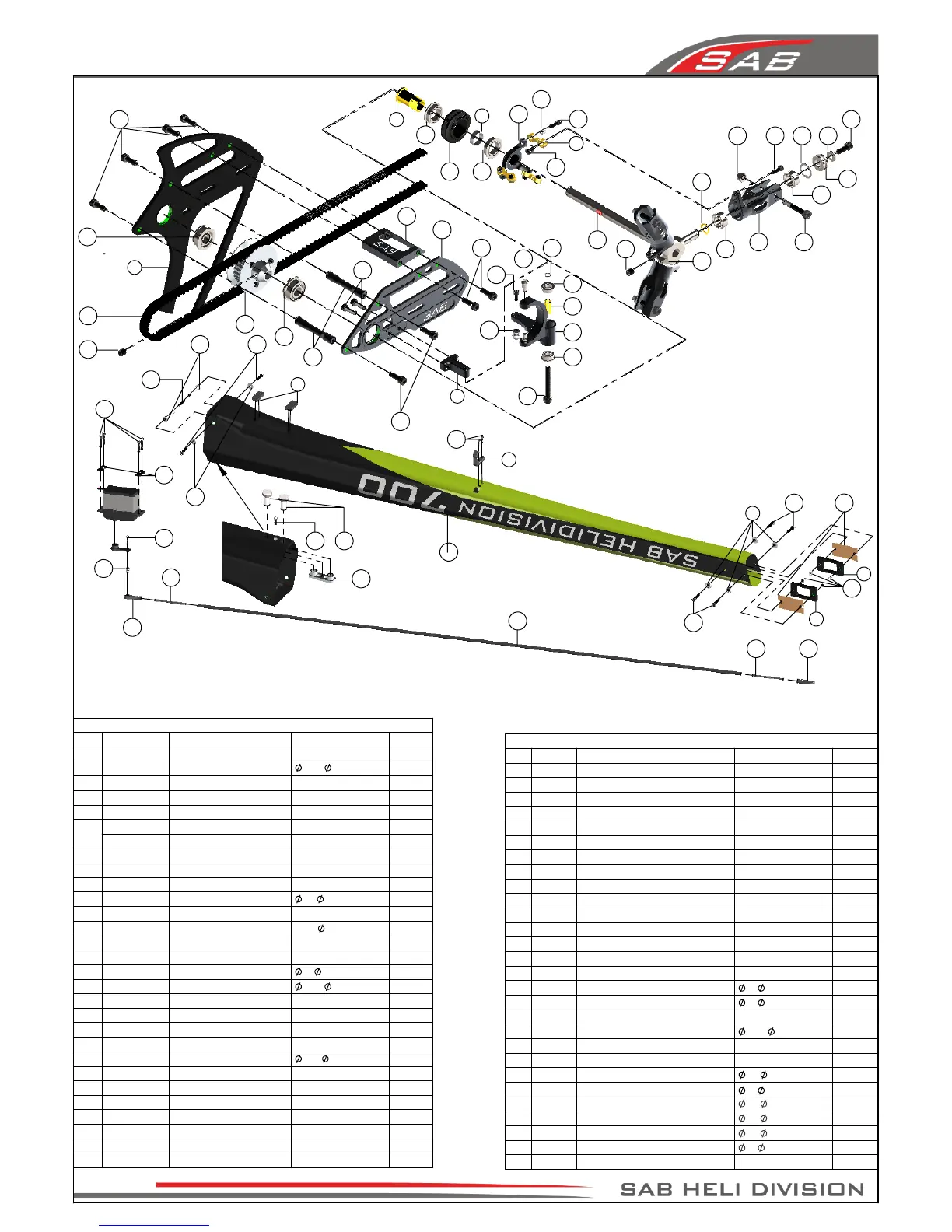

SAB Goblin 700 - Chapter 17, Exploded view, Tail System

1
2
3
4
4
5
6
9
10
11
12
12
13
13
14
15
8
16
17
20
21
23
24
7
26
27
28
29
18
19
25
30
31
32
32
33
33
34
34
35
36
37
37
37
38
36
39
41
42
45
46
46
47
36
36
48
48
49
50
50
41
44
51
51
52
52
53
53
22
40 43
54
55
56
TAIL SYSTEM
POS COD Name Specification Quantity
1 H0007 Finishing Washer M3 Aluminum 4
2 H0029 Spacer
8.1 x 9.2 x 3.2mm 1
3 H0040 Tail Servo Locks Plastic 2
4 H0041 Locking Element Tails Carbon Fiber 2
5 H0045 Linkage Tail Support Plastic 1
6
H0046 Yellow Vertical Fin Carbon fiber 1
H0117 Red Vertical Fin Carbon fiber 1
7 H0054 Tail Pitch Slider 02 Aluminum 1
8 H0056 Tail Pitch Slider Link Aluminum 3
9 H0058BL Bell Crank Base Aluminum 1
10 H0060 Spacer
3 x 4 x 9.6mm 1
11 H0061BL Tail Case Spacers Aluminum 2
12 H0064 Uniballs M2.5
5H6 2
13 H0066 plastic ball links Plastic 2
14 H0075 Servo Spacer Carbon Fiber 2
15 H0076 Spacer
2x 2x3mm 3
16 H0078 Washers
3.1 x 12 x 1.8mm 2
17 H0082 Boom spacers Aluminum 2
18 H0155 Tail Pulley 25T 1
19 H0264 Pin M3 2
20 H0327BL Tail Blade Grip Aluminum 3
21 H0349 Spacer
7.5x 10x0.5mm 3
22 H0358 Block Nut Aluminum 1
23 H0359 Tail Side Plate Aluminum 1
24 H0360 Tail Upper Case Aluminum 1
25 H0406BL Tail Bell Crank Aluminum 1
26 H0407 Tail Pitch Slider 02 Plastic 1
27 H0409BL Tail Pitch Slider 01 Aluminum 1
28 H0418 Tail Hub Steel 1
TAIL SYSTEM
POS COD Name Specification Quantity
29 H0419 Tail Shaft Steel 1
30 H0435 Bushing Aluminum 3
31 H9045 Carbon Tail Boom 1
32 HC004 Socket Head Cap Screws M2 x 6mm 6
33 HC008 Socket Head Cap Screws M2 x 8mm 2
34 HC020 Socket Head Cap Screws M2.5 x 8mm 4
35 HC026 Socket Head Cap Screws M2.5 x 12mm 4
36 HC050 Socket Head Cap Screws M3 x 8mm 11
37 HC062 Socket Head Cap Screws M3 x 12mm 6
38 HC079 Socket Head Cap Screws Shoulder M3 x 18mm 2
39 HC086 Socket Head Cap Screws M3 x 22mm 1
40 HC134 Flat Head Cap Screws M3x8mm 1
41 HC150 Set Screws M3 x 20mm 1
42 HC153 Set Screws M4 x 6mm 2
43 HC165 N
ylon Screw
2
44 HC176 Washer
3x 4x0.5mm 1
45 HC181 Washer
3x 7x1mm 3
46 HC206 Metric Hex Nylon Nuts M3 7
47 HC239 Carbon Rod
2.5 x 4 x 702mm 1
48 HC242 Threaded Rods M2.5 x 40mm 2
49 HC304 Belt Gates 2061-3gt-06 1
50 HC402 Flanged Bearings
3 x 7 x 3mm 2
51 HC411 Bearings
5x 10x4mm
6
52 HC414 Flanged Bearings
6 x 13 x 5mm 2
53 HC418 Flanged Bearings
8 x 12 x 3.5mm 2
54 HC435 Thrust Bearings
5x 10x4mm
2
55 HC449 Washer
5x 7x0.2 3
56 HA015 Double-Sided Tapes 2
Page 34
Chapter 17, Exploded view, Tail System
