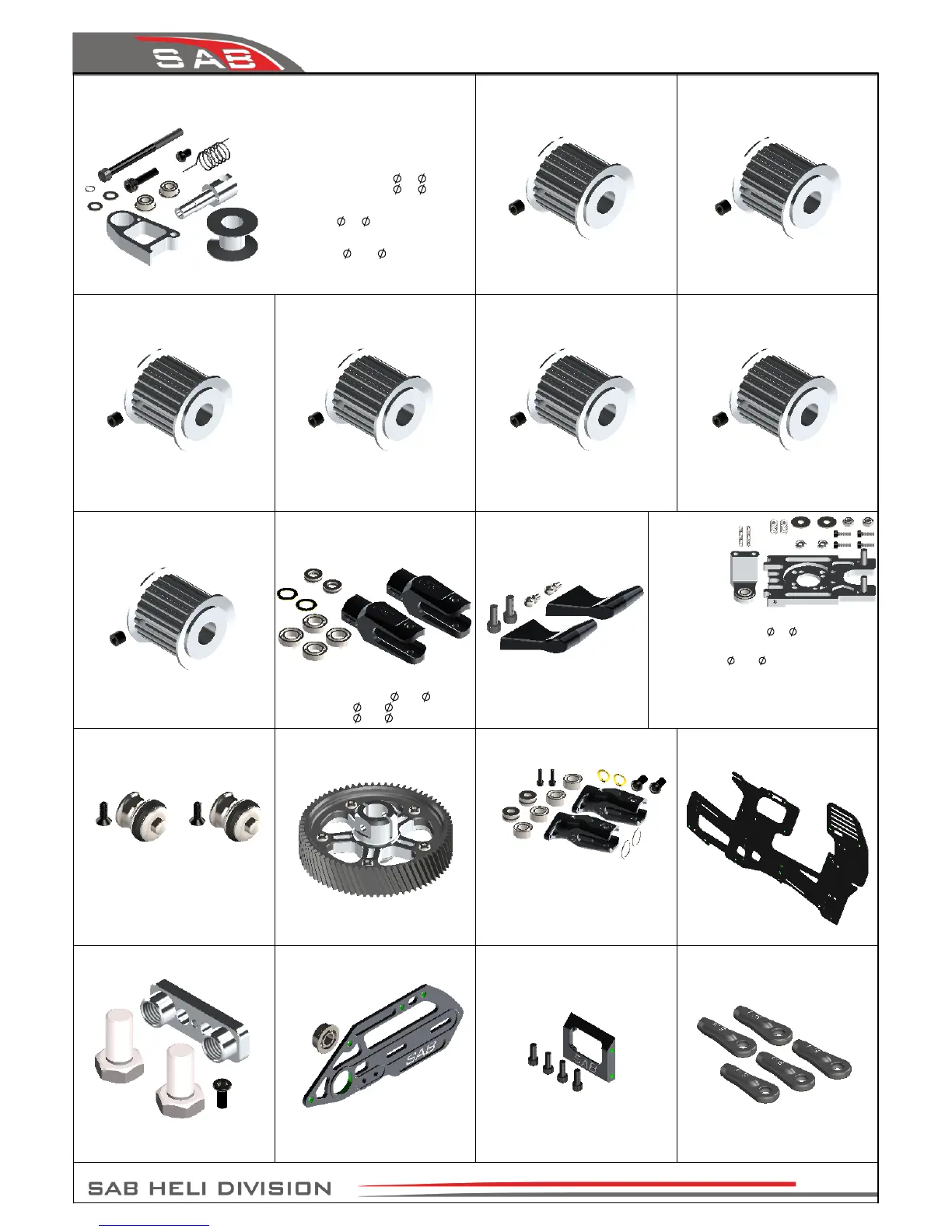

- 1 x Column Belt Tensioner.
- 1 x Tail Belt Idler.
- 1 x Belt Tensioner Arm.
- 2 x Flanged Bearings
3x
7x3mm.
- 2 x Flanged Bearings
5x
9x3mm.
- 1 x Socket Head Cap
Screw M3x50mm.
- 1 x Washer
3x
4x0.5mm.
- 1 x Socket Head Cap
Screw M3x12mm.
- 2 x Washers
3.2x
6x0.5mm.
- 1 x Button Head Cap
Screw M3x4mm.
- 1 x Spring De8/df0.5/LL8.
Belt Tensioner Support
[H0174-S]
- 1 x 18T Pulley.
- 1 x Set Screws M4x4mm.
- 1 x 19T Pulley.
- 1 x Set Screws M4x4mm.
19T Pulley
[H0175-19-S]
18T Pulley
[H0175-18-S]
- 1 x 21T Pulley.
- 1 x Set Screws M4x4mm.
- 1 x 20T Pulley.
- 1 x Set Screws M4x4mm.
20T Pulley
[H0175-20-S]
21T Pulley
[H0175-21-S]
- 1 x 22T Pulley.
- 1 x Set Screws M4x4mm.
- 1 x 23T Pulley.
- 1 x Set Screws M4x4mm.
23T Pulley
[H0175-23-S]
22T Pulley
[H0175-22-S]
- 1 x 24T Pulley.
- 1 x Set Screws M4x4mm.
24T Pulley
[H0175-24-S]
Blade Grip
[H0182BL-S]
- 2 x Blade Grip.
- 2 x
Thrust Bearing
10x
18x5.5.
- 4 x Bearing
10x
19x5mm.
- 2 x Washer
10x
16x1mm.
Blade Grip Arm
[H0183BL-S]
- 2 x Blade Grip Arm.
- 2 x Socket Head Cap
Screw M4x10mm.
- 2 x Uniball M3x4 Ø5 H3.5.
Motor Mount
[H0142-S]
- 1 x Bearing
Support.
- 1 x Motor Mount.
- 1 x Flanged Bearing
6x
13x5mm.
- 2 x Socket Head Cap Screws M3x8.
- 2 x Set Screws M5x20mm.
- 2 x Washers
5.3x
15x1mm.
- 2 x Metric Hex Nylon Nuts M5H4.8.
- 2 x Finishing Washers M3.
- 2 x Socket Head Cap Screws M3x10.
- 2 x Metric Hex Nylon Nut M3 H4.
- 2 x Springs de 5.8/ df0.5 / LL9.
- 2 x Springs de 3/ df0.5 / LL12.
Quick Release Canopy Mount
[H0319-S]
- 2 x Quick Release Canopy Set.
- 2 x Flat Head Socket Cap M3x8.
- 2 x Canopy Grommets.
CNC Derlin Main Gear
[H0405-S]
- 1 x CNC Derlin Main Gear Set.
Aluminum Tail Blade Grip
[H0327BL-S]
- 2 x Aluminum Tail Blade Grip.
- 4 x Bearing Ø5xØ10x4mm.
- 2 x Thrust bearing Ø5xØ10x4mm.
- 2 x Button Head Cap M4x8mm.
- 2 x Socket Head Cap M2x6mm.
- 2 x Washer Ø5xØ8.9x0,75mm.
- 2 x Washer Ø7.5xØ10x0,5mm.
Main Frame
[H0354-S]
- 1 x Main Frame.
Tail Boom Support
[H0358-S]
- 1 x Tail Boom Support.
- 1 x Nylon screw M8x20mm.
- 1 x Flat Head Cap ScrewsM3x8.
Aluminum Tail Side Plate
[H0359-S]
- 1 x Aluminum Tail Side Plate.
- 1 x Flanged bearing
Ø6xØ13x5mm.
Aluminum Tail Case Spacer
[H0360-S]
- 1 x Aluminum Tail Case Spacer.
- 4 x Socket Head Cap M3x8mm.
Ball Link
[H0402-S]
- 5 x Ball Link.
Page 37
Chapter 18, Spare Parts
