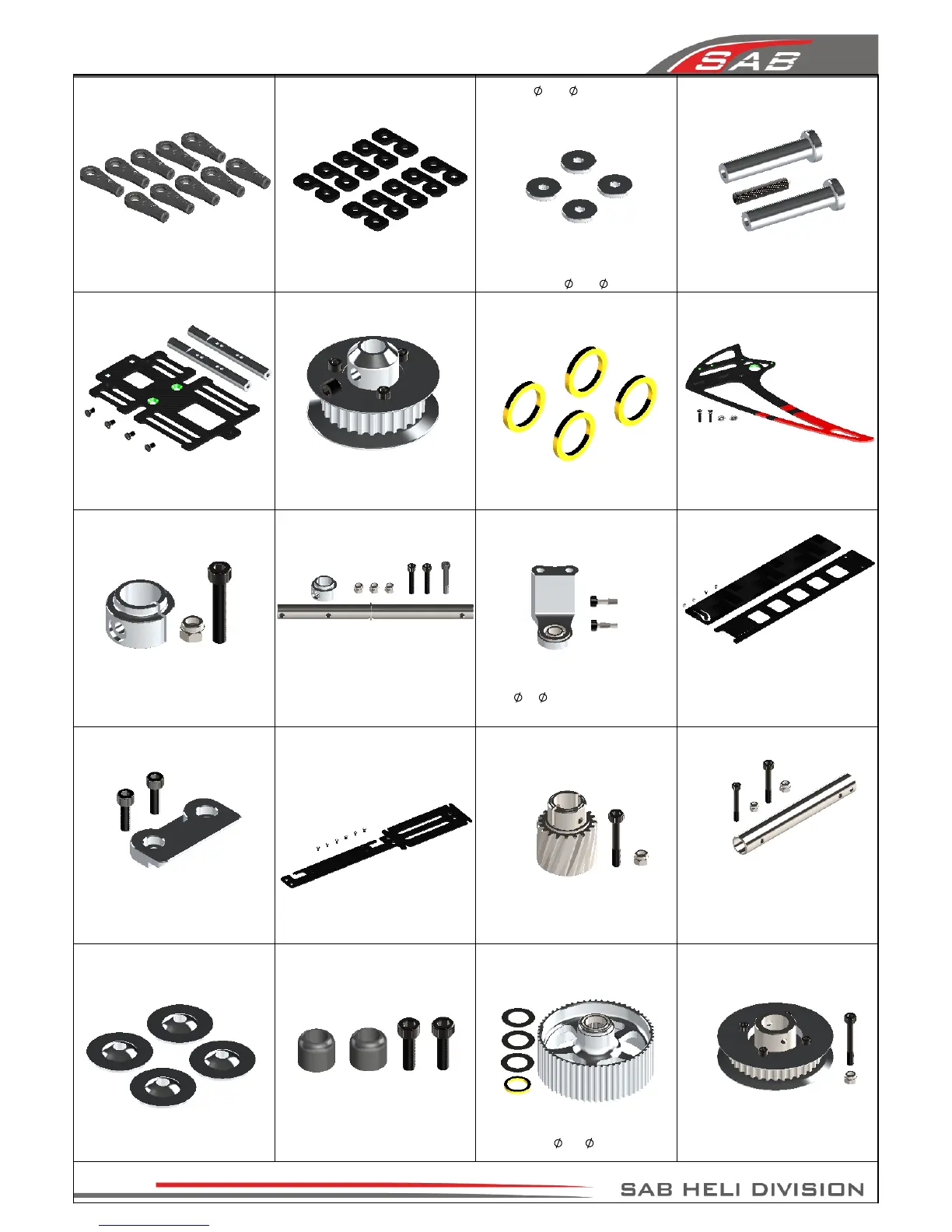

SAB Goblin 700 - Carbon Fiber; Aluminum

- 1 x Red Vertical Fin.
- 2 x Socket Head Cap
Screws M3x12mm.
- 2 x Finishing Washers M3.
Red Vertical Fin
[H0117-S]
- 4 x Washers
3.1x 12x1.8mm.
Washer
3.1x 12x1.8mm
[H0078-S]
Servo Spacer
[H0075-S]
- 1 x 25T Tail Pulley.
- 1 x Set Screw M4x4mm.
- 6 x Socket Head Cap Screws
M2x5mm.
25T Tail Pulley
[H0155-S]
Plastic Ball Link
[H0066-S]
- 10 x Servo Spacers. - 10 x Plastic Ball Link.
Boom Spacer
[H0082-S]
- 2 x Boom Spacer.
- 1 x Set Screw M3x20mm.
- 1 x ESC Support.
- 2 x Frame Spacer.
- 4 x Flat Head Cap Screws
M2.5x5mm.
ESC Support
[H0088-S]
Bush One Way
[H0110-S]
- 4 x Bush One Ways.
M4 Locking Collar
[H0121-S]
- 1 x M4 Locking Collar.
- 1 x Socket Head Cap Screw
M4x22mm.
- 1 x Metric Hex Nylon Nut M4 H5.
- 1 x Main Shaft.
- 1 x M4 Locking Collar
- 1 x Socket Head Cap Screw
Shouldered M4x24mm.
- 2 x Socket Head Cap
Screws M4x22mm.
- 3 x Metric Hex Nylon Nuts M4.
Main Shaft
[H0122-S]
Bearing Support
[H0143-S]
- 1 x Bearing Support.
- 1 x Flanged Bearing
6x 13x5mm.
- 2 x Socket Head Cap
Screws M3x8mm.
Battery Tray
[H0149-S]
- 1 x Battery Plate.
- 1 x Battery Protection.
- 2 x Cylinder M2.5.
- 2 x Flat Head Cap
Screw M2.5x5mm
- 1 x Heat Shrink.
Stop Battery Tray
[H0150-S]
- 1 x Stop Battery Tray.
- 2 x Socket Head Cap
Screw M2.5x8mm.
Carbon Fiber ESC Support
(H0153-S)
- 1 x Carbon Fiber ESC Support.
- 6 x Flat Head Socket Cap
Screw M2,5x5mm.
19T Drive Pinion
[H0156-S]
- 1 x 19T Drive Pinion.
- 1 x Socket Head Cap Screw
Shouldered M3x19mm.
- 1 x Metric Hex Nylon Nut M3.
Secondary Shaft
[H0157-S]
- 1 x Secondary Shaft M3.
- 1 x Socket Head Cap Screw
Shoulder M2.5x19mm.
- 1 x Metric Hex Nylon Nut M2,5.
- 1 x Socket Head Cap
Shoulder M3x19mm.
- 1 x Metric Hex locknut Nut M3.
Aluminum Blade Spacer
[H0158-S]
- 4 x Aluminum Blade Spacer.
Canopy Positioner
[H0159-S]
- 2 x Canopy Positioner.
- 2 x Socket Head Cap
Screws M3x10mm.
Double Bearing One Way Pulley
[H0171-S]
- 1 x Aluminum Double Bearing
One Way Pulley Assembly.
- 3 x Shims
10x 16x0,2mm.
- 1 x One Way Brass Bushing.
Aluminum Front Tail Pulley
[H0172-S]
- 1 x Front Tail Pulley Assembly.
- 1 x Socket Head Cap
Screw M2.5x19mm.
- 1 x Metric Hex Nylon Nuts M2,5.
Page 36
Chapter 18, Spare Parts
