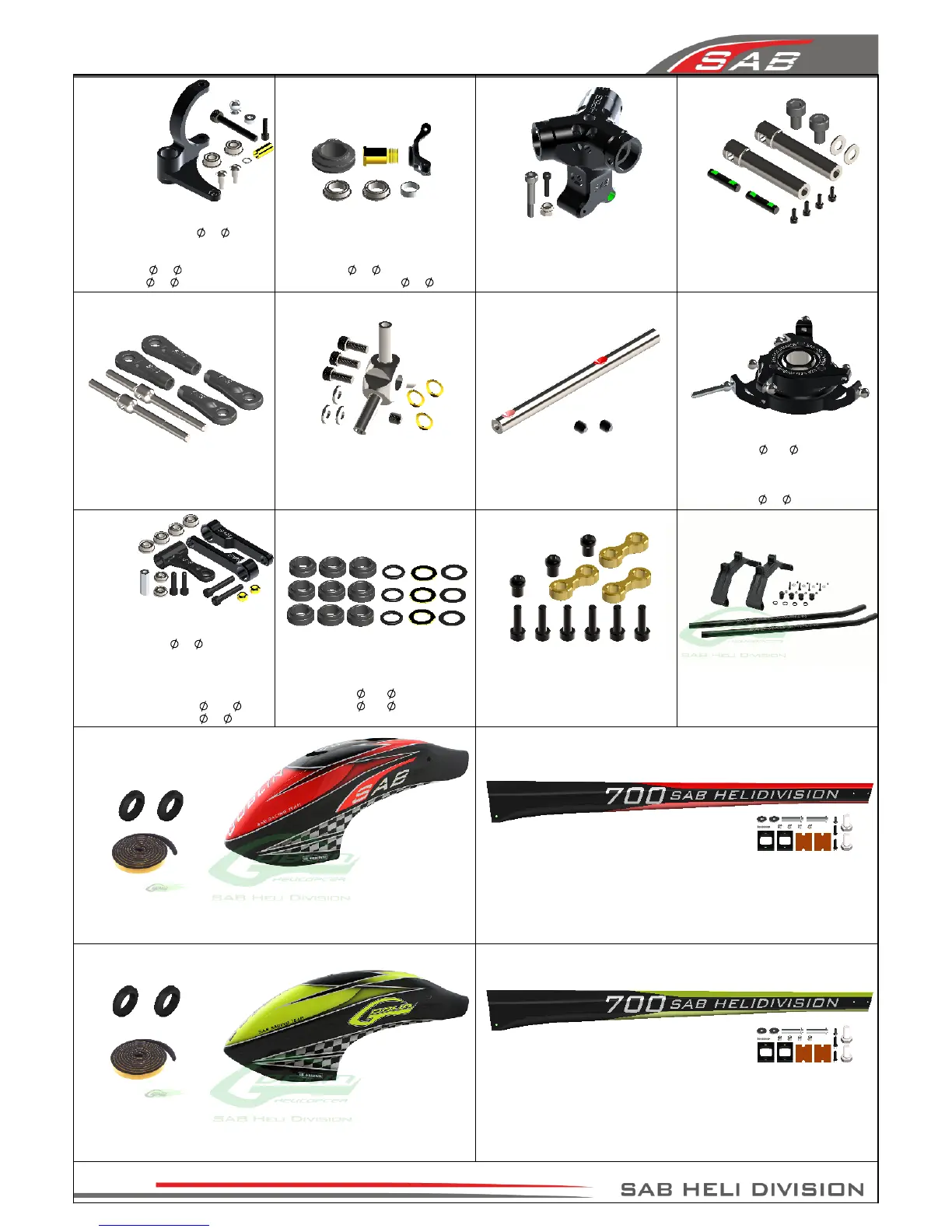

SAB Goblin 700 - - 1 X Flat Head Cap Screws M3 X8 Mm; Nylon Nuts M3

Bell Crank Lever
[H0406BL-S]
- 2 x Tail Pin.
- 1 x Uniball M2.
- 1 x Uniball Spacer.
- 1 x Bell Crank Lever.
- 2 x Flanged Bearing
3x 7x3mm.
- 1 x Head Cap Screws M3x22mm.
- 1 x Head Cap Screws M2x8mm.
- 1 x Washer
3x 4x0.5mm.
- 1 x Spacer
3x 4x9.6mm.
Tail Pitch Slider 3 Blade
[H0409BL-S]
- 1 x Tail Pitch Slider 01.
- 1 x Tail Pitch Slider 02.
- 1 x Tail Pitch Slider 03.
- 1 x Spacer
8x 9x3.2mm.
- 2 x Flanged Bearings
8x 12x3.5.
Center Hurb
[H0410BL-S]
- 1 x Center Hub.
- 1 x Head Cap Screws M3x12mm.
- 1 x Head Cap Screw
Shouldered M4x25mm.
- 1 x Metric Hex Nylon Nut M4.
Spindle
[H0412-S]
- 2 x Spindle Shaft.
- 2 x Pin 5mm.
- 4 x Head Cap Screw M2.5x6mm.
- 2 x Head Cap Screw M4x10mm
- 2 x Washer Ø6,3 x Ø15 x 1mm
Main Linkage
[H0417-S]
- 2 x Linkage Rod M3x50mm.
- 4 x Plastic ball linkages.
Tail Hub
[H0418-S]
- 1 x Tail Hub.
- 1 x Set Screw M4x6mm.
- 3 x Head Cap Screws M3x8mm.
- 3 x Washer Ø3xØ7x1mm.
- 3 x Washer Ø5xØ7x0,2mm.
Tail Shaft
[H0419-S]
- 1 x Tail Shaft.
- 2 x Set Screws M4x6mm.
SwashPlate Set HPS3
[H0420BL-S)
- 1 x Swashplate Assembly.
- 2 x Bearings
30x 37x4mm.
- 6 x Uniballs M3x4 5 H3.
- 1 x Uniball M3x4 5 H18.
- 3 x Head Cap Screws M2x5mm.
- 3 x Swasher
2x 5x0.5mm
Radius Arm
[H0421-S]
- 2 x Radius Arms.
- 2 x Spacer Arm
3x 5x2.7mm.
- 1 x Spacer Hex.
- 1 x Uniball Radius Arms.
- 2 x Head Cap Screws M3x16mm.
- 2 x Head Cap Screws M2.5x10mm.
- 2 x Flanged Bearings
2.5x 6x2.5.
- 4 x Flanged Bearings
3x 7x3.
Damper
[H0426-S)
- 3 x H0426-A.
- 3 x H0426-B.
- 3 x H0426-C.
- 3 x Washers
10x 16x1mm.
- 3 x Washers
10x 16x0.2mm.
- 3 x Orings 3050.
Pin M2
[H0435-S]
- 3 x Pin M2.
- 3 x Spacer 2x 3x3mm.
- 3 x Tail Pitch Slider Link.
- 6 x Head Cap Screws M2x6mm.
F3C Landing Gear Set
[H0454-S]
- 2 x Plastic Landing Gear Support.
- 2 x Aluminum Landing Skid.
- 4 x Cone Point Set Screws M4x4.
- 4 x Aluminum M3 Washer.
- 4 x Head Cap Screw M3x16mm.
- 4 x M3 Lock Nut.
Red/Carbon Canopy
[H9030-S]
Red/Carbon Boom
[H9035-S]
Yellow/Carbon Canopy
[H9040-S]
Yellow/Carbon Boom
[H9045-S]
- 1 x Red/Carbon Tail Boom.
- 2 x Locking Element Tails.
- 2 x D ouble-Sided Tapes .
- 1 x Set Screws M3 x 20mm .
- 2 x Washers 3.1 x 12 x 1.8mm.
- 4 x Metric Hex Nylon Nuts M3.
- 2 x Boom spacers.
- 2 x Head Cap Screws M3 x 12mm.
- 2 x Nylon Screw M8x20mm.
- 1 x Flat Head Cap Screws M3x8mm.
- 2 x Head Cap Screws M3 x 12mm.
- 2 x Nylon Screw M8x20mm.
- 1 x Flat Head Cap Screws M3x8mm.
- 1 x Yellow/Carbon Tail Boom.
- 2 x Locking Element Tails.
- 2 x D ouble-Sided Tapes .
- 1 x Set Screws M3 x 20mm .
- 2 x Washers 3.1 x 12 x 1.8mm.
- 4 x Metric Hex Nylon Nuts M3.
- 2 x Boom spacers.
- 1 x Canopy Yellow/Carbon.
- 1 x Canopy Grommet.
- 1 x Canopy mousse.
- 1 x Canopy Edge Protection.
- 1 x Canopy Red/Carbon.
- 1 x Canopy Grommet.
- 1 x Canopy mousse.
- 1 x Canopy Edge Protection.
