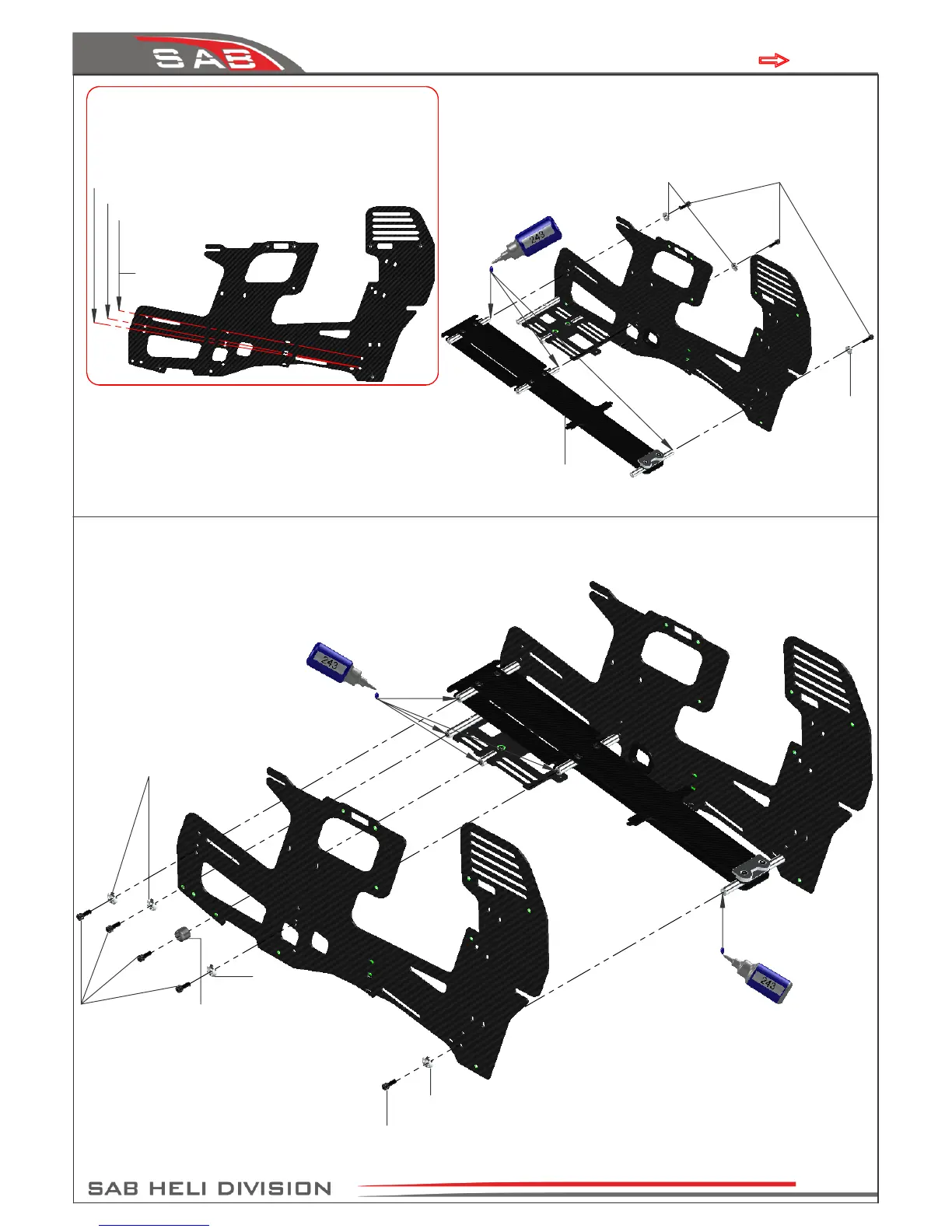

SAB Goblin 700 - Main Frame Assembly

Socket Head Cap
Screw M3x10mm
(HC056-S)
Finishing
Washer M3
(H0007-S)
Finishing Washer M3
(H0007-S)
Battery Support
Assembly
Finishing Washer M3
(H0007-S)
Finishing
Washer M3
(H0007-S)
Finishing
Washer M3
(H0007-S)
Main Frame Assembly
Socket Head Cap
Screw M3x10mm
(HC056-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
Bottom holes: 75mm max height batteries.
Middle holes: 70mm max height batteries.
Canopy
Positioners
(H0159-S)
Top holes: 60mm max height batteries.
Note:
Choose the position for the batteries
For the best 3D performance (with 12S-5000 batteries)
we recommend position 1
Pos 1
BAG 1.2, BOX 6
Page 7
Chapter 4, Carbon Frame
