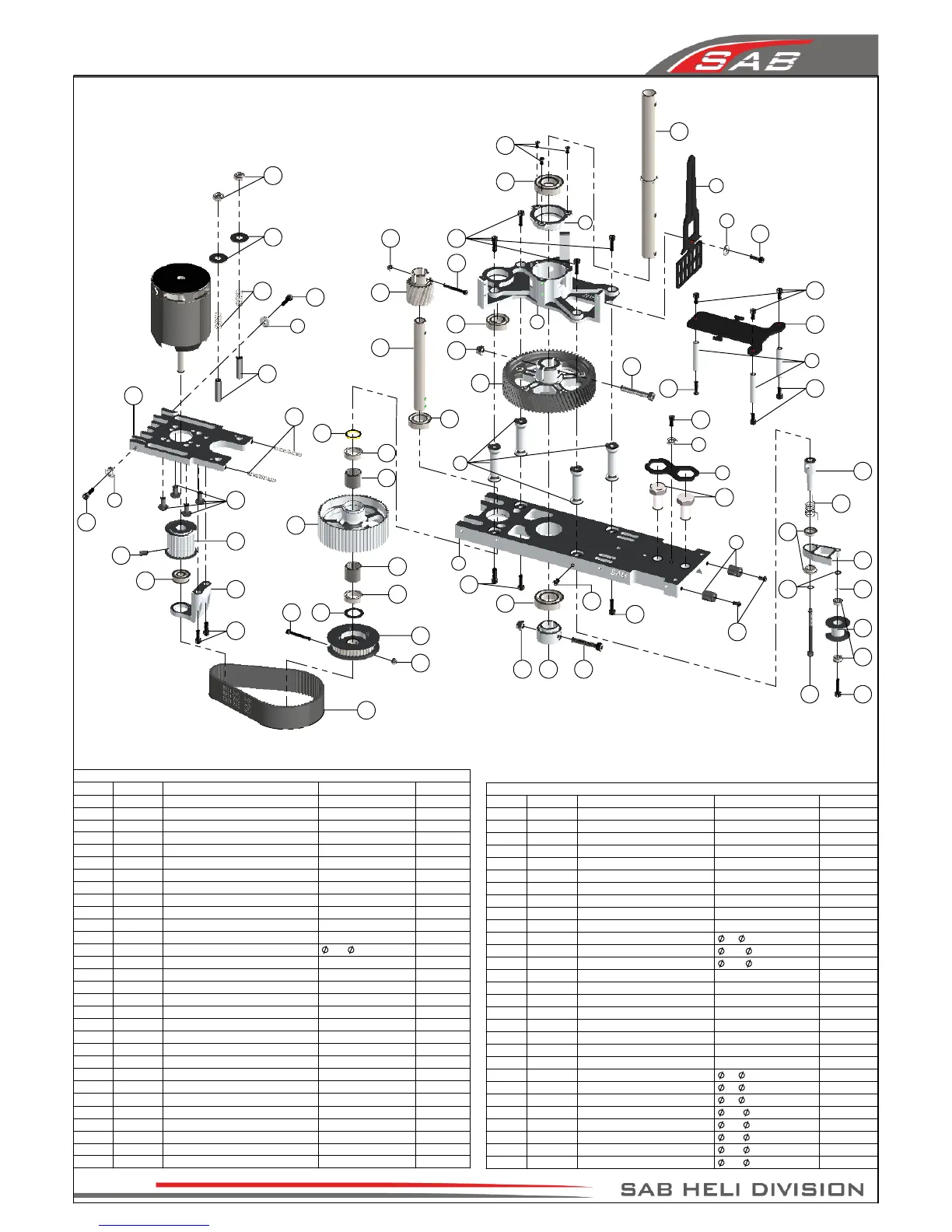

SAB Goblin 700 - Chapter 17, Exploded view, Transmission Assembly

1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
24
17
25
26
27
27
28
27
1
1
28
29
29
29
29
29
30
31
32
33
34
35
36
37
38
39
40
4142
26
43
44
45
46
46
47
48
49
50
51
52
53
55
55
56
56
57
57
58
58
54
59
1
TRANSMISSION ASSEMBLY
POS COD Name Specification Quantity
31
HC079
Socket Head Cap Screws M3 x 18mm 1
32
HC091
Socket Head Cap Shoudered M4 x 40mm
1
33
HC098
Button Head Cap Screws M4 x 8mm
4
34
HC104
Socket Head Cap Screw M4 x 22mm
1
35
HC111
Socket Head Cap Screw M4 x 24mm
1
36
HC128
Flat Head Cap Screws M2.5 x 5mm
3
37
HC134
Flat Head Cap Screw M3 x 8mm
1
38
HC153 Set Screws
M4 x 6mm
1
39
HC158 Set Screws
M5 x 20mm
2
40
HC165
Vite Nylon Esa M8 x 20mm
2
41
HC176 Washer 3 x 4x0.5mm 1
42
HC180 Washers 3.2 x 6 x 0.5mm 2
43
HC188 Washers 5.3 x 15 x 1mm 2
44
HC200
Metric Hex Nylon Nuts M2.5 H3.5mm
2
45
HC206
Metric Hex Nylon Nuts M3 H4mm
1
46
HC212
Metric Hex Nylon Nuts M4 H5mm
2
47
HC218
Metric Hex Nylon Nuts M5 H4.8mm
2
48
HC309 Big Motor Belt 240-3MGT 1
49
HC310 Spring de 5.8-df0.3-ll9 2
50
HC312 Spring de 8-df0.5-ll8 1
51
HC314 Spring de 8-df0.5-ll12 2
52
HC402 Flanged Bearings 3 x 7 x 3mm 2
53
HC410 Flanged Bearings 5 x 9 x 3mm 2
54
HC414 Flanged Bearings 6 x 13 x 5mm 1
55
HC420 Bearings 10 x 15 x 4mm 2
56
HC422 Bearings 10 x 19 x 5mm 2
57
HC426 Bearings 12 x 24 x 6mm 2
58
HC442 One Way Bearing 10 x 14 x 12mm 2
59
HC232 Washer 10 x 16 x 0.2mm 1
TRANSMISSION ASSEMBLY
POS COD Name Specification Quantity
1 H0007 Finishing Washers M3 Aluminum 4
2 H0009 Main Structure Aluminum 1
3 H0010 Servo Support Aluminum 1
4 H0017 Swash plate Anti-Rotation Guide Carbon Fiber 1
5 H0018 Columns Aluminum 4
6 H0024 Main Shaft Bearing Support 1
7 H0038 Safety Locking Tail Boom Carbon Fiber 1
8 H0043 Spacers Flybarless 3
9 H0050 Antenna Guide Plastic 2
10 H0069 Tail Belt Idler 1
11 H0071 Belt Tensioner Arm 1
12 H0077 Flybarless Support Carbon Fiber 1
13 H0110 Bush-One Ways
10 x 13 x 1.4mm 2
14 H0121 M4 Locking Collar 1
15 H0122 Main Shaft 1
16 H0142 Support Bearing
Aluminum 1
17 H0156 Steel Pinion 19T 1
18 H0157 Secondary Shaft 1
19 H0171
One Way Double Bearing
60T 1
20 H0172 Front Tail Pulley Low 37T 1
21 H0174 Column Belt Tensioner 1
22 H0175-20 Motor Pulley 20mm 20t 1
23 H0143 Motor Support Aluminum 1
24 H0405 Main Gear CNC 68T M1 1
25 HC033 Socket Head Cap Screw Shouldereds M2.5 x 19mm 1
26 HC038 Button Head Cap Screws M3 x 4mm 3
27 HC044 Socket Head Cap Screws M3 x 6mm 5
28 HC050 Socket Head Cap Screws M3 x 8mm 3
29 HC056 Socket Head Cap Screws M3 x 10mm 7
30
HC062
Socket Head Cap Screw M3 x 12mm
1
TRANSMISSION ASSEMBLY
POS COD Name Specification Quantity
Page 32
Chapter 17, Exploded view, Transmission Assembly
