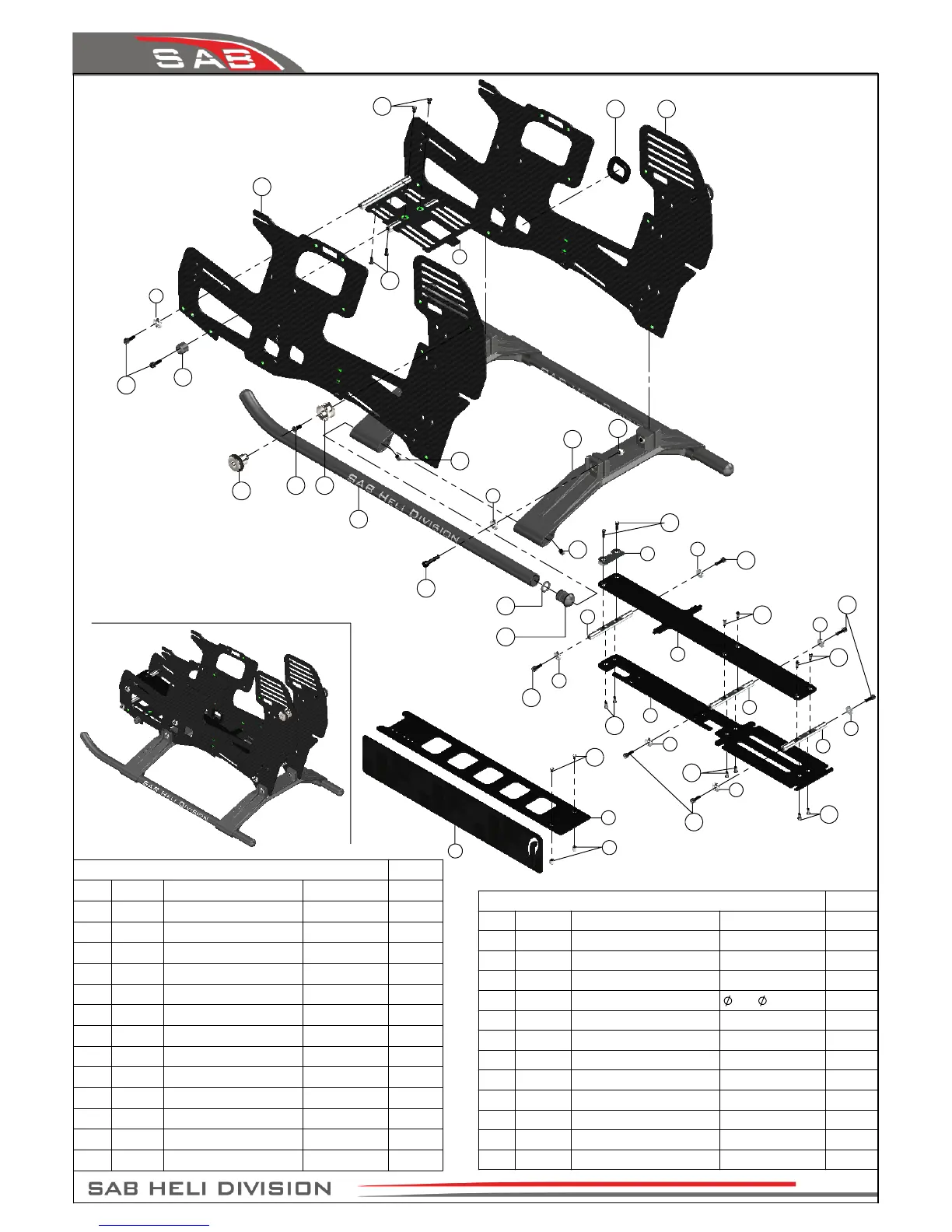

SAB Goblin 700 - Chapter 17, Exploded view, Carbon Frame

3
4
11
12
12
10
16
17
19
21
21
22
1
2
2
2
3
3
3
3
3
5
6
8
18
19
21
21
21
21
21
21
9
3
7
14
19
23
23
25
3
13
15
20
24
19
19
Main Frame
POS COD Name Specification Quantity
1 H0002 Battery Tray Carbon Fiber 1
2 H0003 Frame Spacers Aluminum 5
3 H0007 Finishing Washers M3 Aluminum 12
4 H0088 ESC Support Carbon Fiber 1
5 H0149 Battery Plate Carbon Fiber 1
6 H0150 Stop Battery Plate Aluminum 1
7 H0151 Cylinder M2.5 Aluminum 2
8 H0153 Battery Support Carbon Fiber 1
9 H0155 Battery Protection Carbon Fiber 1
10 H0159 Canopy Positioner Plastics 2
11
H0319
Canopy Mouse Base Steel 2
12 H0354 Main Frames Carbon Fiber 2
13 H0431 Landing Gears Rod Aluminum 2
Main Frame
POS COD Name Specification Quantity
14 H0432 Landing Gears Plug Plastic 4
15 H0449
Plastic Landing Gear F3C
Plastic 2
16 H0319 Quick Realise Canopy Assembly 2
17 HA010 Cable Pass
16 x 24 x 2mm 1
18 HC020 Socket Head Cap Screws M2.5 x 8mm 2
19 HC056 Socket Head Cap Screws M3 x 10mm 12
20 HC068 Socket Head Cap Screws M3 x 16mm 4
21 HC128 Flat Head Cap Screws M2.5 x 5mm 16
22 HC134 Flat Head Cap Screws M3 x 8mm 2
23 HC152 Set Screw M4 x 4mm 4
24 HC206 Nylon Nuts M3 4
25 HC453 Oring Plastic 4
Page 31
Chapter 17, Exploded view, Carbon Frame
