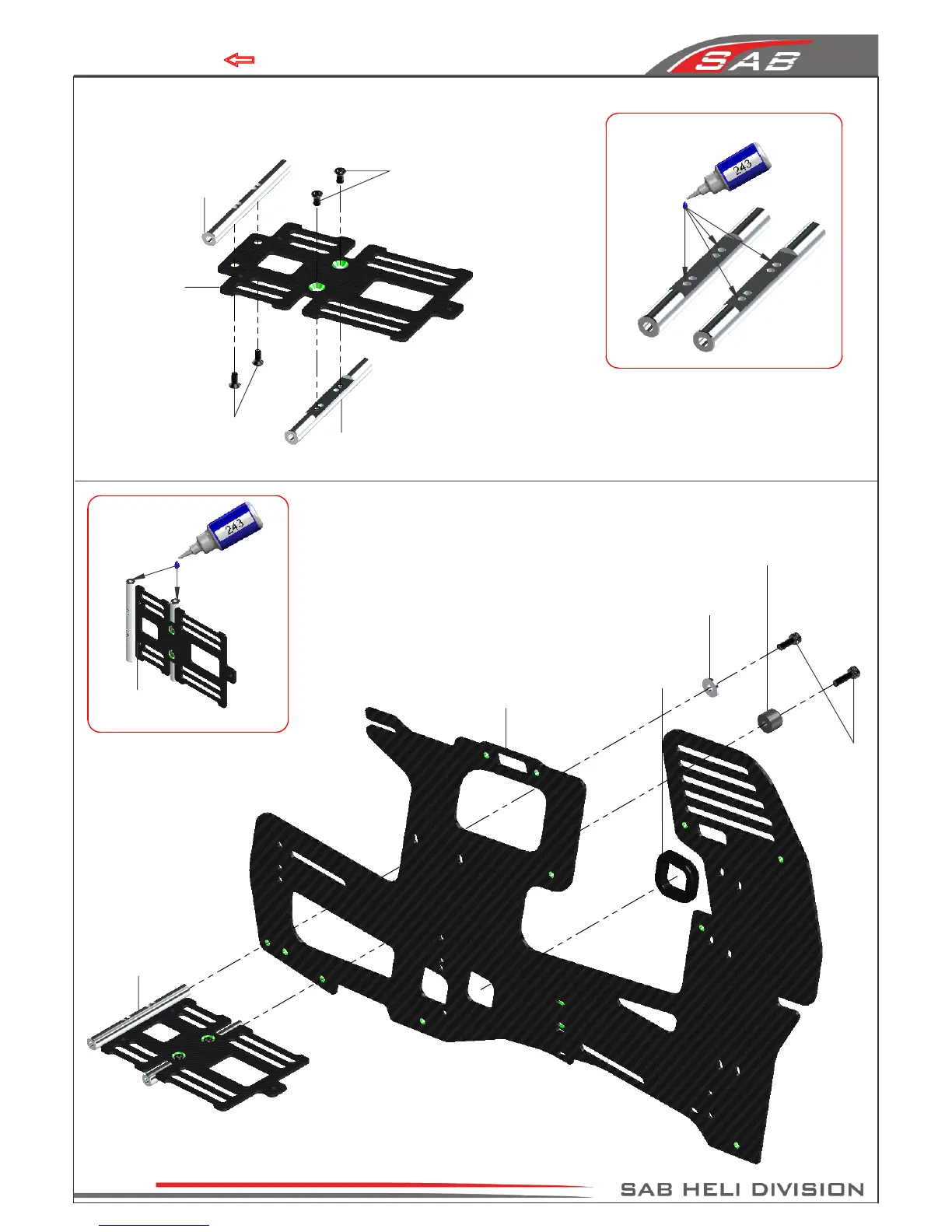

SAB Goblin 700 - Page 8

Flat Head Cap Screw
M2.5x5mm
(HC128-S)
Frame Spacer
(H0003-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
Finishing Washer M3
(H0007-S)
ESC Support
Assembly
Main Frame 1
(H0354-S)
Finishing Washer M3
(H0007-S)
Flat Head Cap
Screw M2.5x5mm
(HC128-S)
Frame Spacer
(H0003-S)
ESC Support
(H0088-S)
Cable Pass
(HA010-S)
Canopy Positioners
(H0159-S)
ESC Support
Assembly
ESC Support Assembly
Landing Gear Support
(H0005-S)
Note:
Note:
BAG 1.2, BAG 1.3, FOAM 3
Page 6
Chapter 4, Carbon Frame
