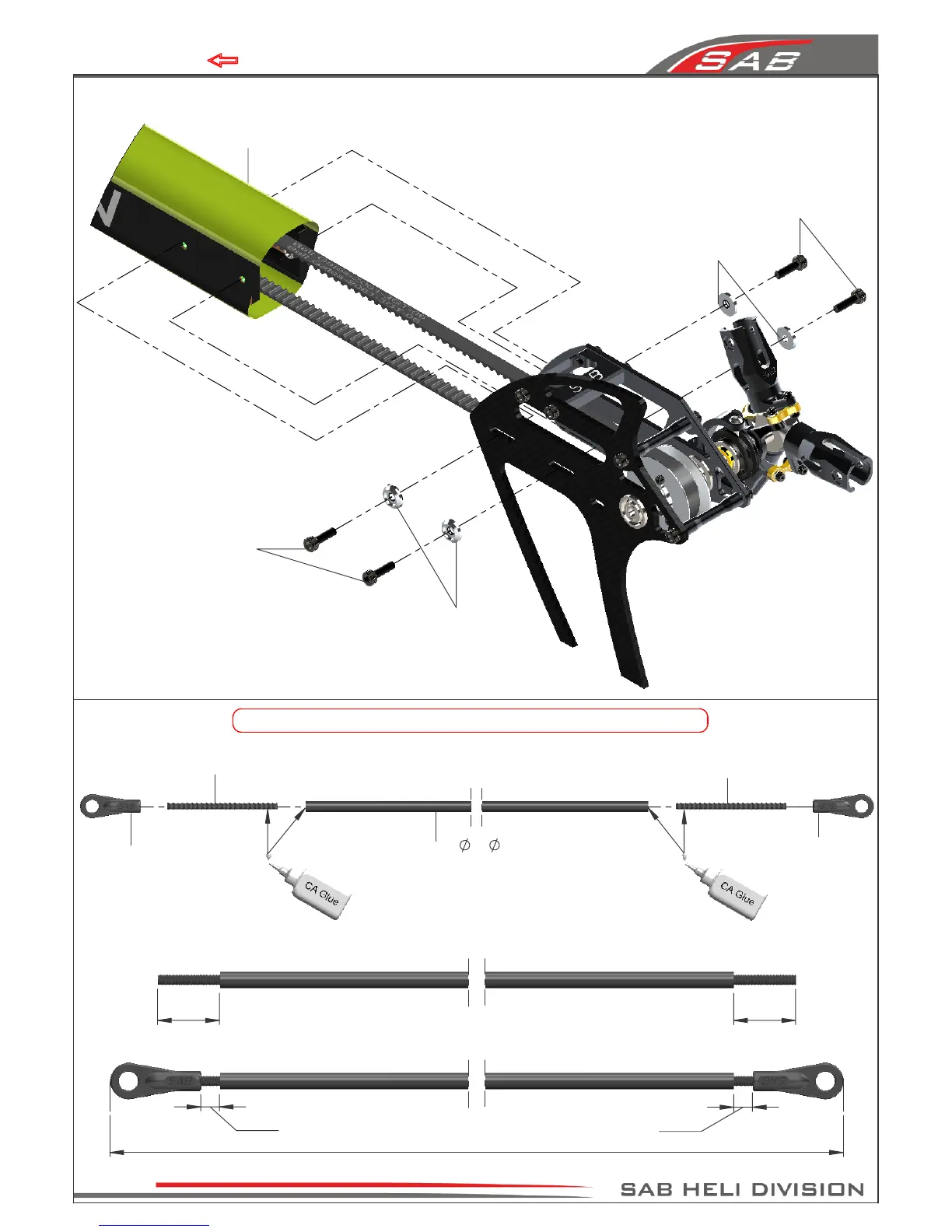

SAB Goblin 700 - Tail Boom Assembly

A
DETAIL A
SCALE 1 : 1.5
Socket Head Cap
Screw M3x12mm
(HC062-S)
Finishing Washer M3
(H0007-S)
3mm
3mm
Approx 754mm
13mm13mm
Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screw M3x12mm
(HC062-S)
Tail Boom
Assembly
Plastic Ball Link
(H0066-S)
Carbon Rod
4x 2.5x702mm
(HC239-S)
Threaded Rod M2.5x40mm
(HC242-S)
Note:
Note: Before put plastic ball in threaded rod, please wait 12 hours after bonding
Plastic Ball Link
(H0066-S)
Threaded Rod M2.5x40mm
(HC242-S)
BAG 13, BAG 16, BOX 3
Page 24
Chapter 12, Tail
