Safeline MX3+ - Output and Button Wiring

10
CABLE13
MX3+
MX3+ v1.06 EN
© 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Installation
or
In this example the settings
are confi gured as:
Output 1: Alarm
*88*13#
Output 2: System failure
*88*22#
In this example the settings
are confi gured as (default):
Output 1: Yellow Pictogram
*88*10#
Output 2: Green Pictogram
*88*20#
WHITE BROWN WHITE
BROWN
Green Pictogram Yellow Pictogram

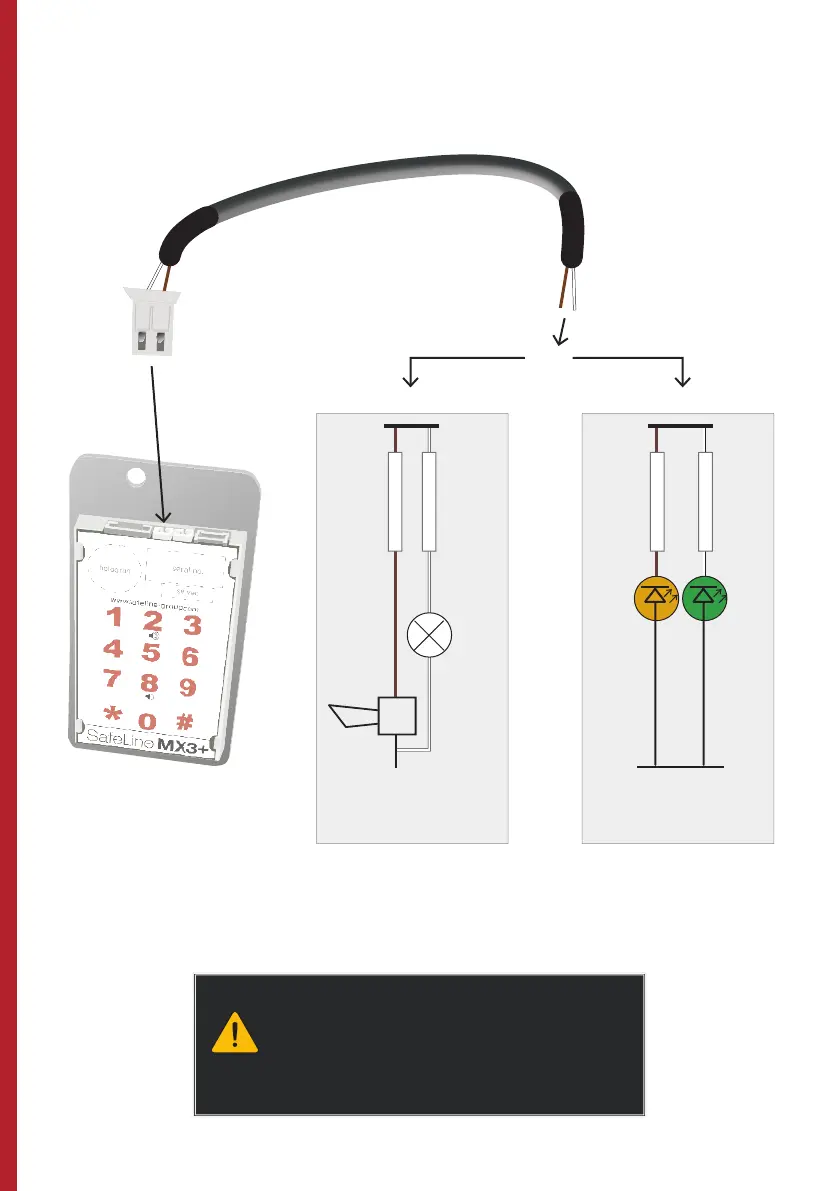

WIRING DIAGRAM, OUTPUT 1 AND 2
Requires that the output is confi gured for the
corresponding function.
Please refere to the Parameter list (*88*) for
more information.
for example for example
Use CABLE13 to connect SafeLine MX3+ with
external accessories.
+
10 - 30 VDC
max 200 mA
+
10 - 30 VDC
max 200 mA
