OUTPUTS
Outputs
The two outputs can be confi gured independently
with a number of functions. The confi guration
is performed via SafeLine Pro or with the
confi guration code *88*XY#, where X specifi es
output 1 or 2 and Y specifi es the function:
0 = Pictogram
(Output 1 - Yellow, Output 2 - Green)
1 = Activate with DTMF 8/9
(Output 1 - DTMF8, Output 2 – DTMF9)
2 = System Failure
3 = Emergency Bell
E.g. *88*13# confi gures output 1 for an
emergency bell.
Pictogram Yellow
(Output 1, Confi guration code 0)
The output is activated at the following events:
- Input for Emergency Bell is activated.
- Input for Emergency Bell is set active at a
certain time.
The output is deactivated at the following events:
- Distress input deactivated before set time.
- Active alarm ended.
- Reset button (#) is pressed.
Pictogram Green
(Output 2, Confi guration code 0)
The output is activated at the following events:
- Voice communication activated.
- Incoming call connected.
The output is deactivated at the following events:
- Outgoing call ended/timeout/cancelled.
- Incoming call ended/timeout/cancelled.
- Reset button (#) is pressed.

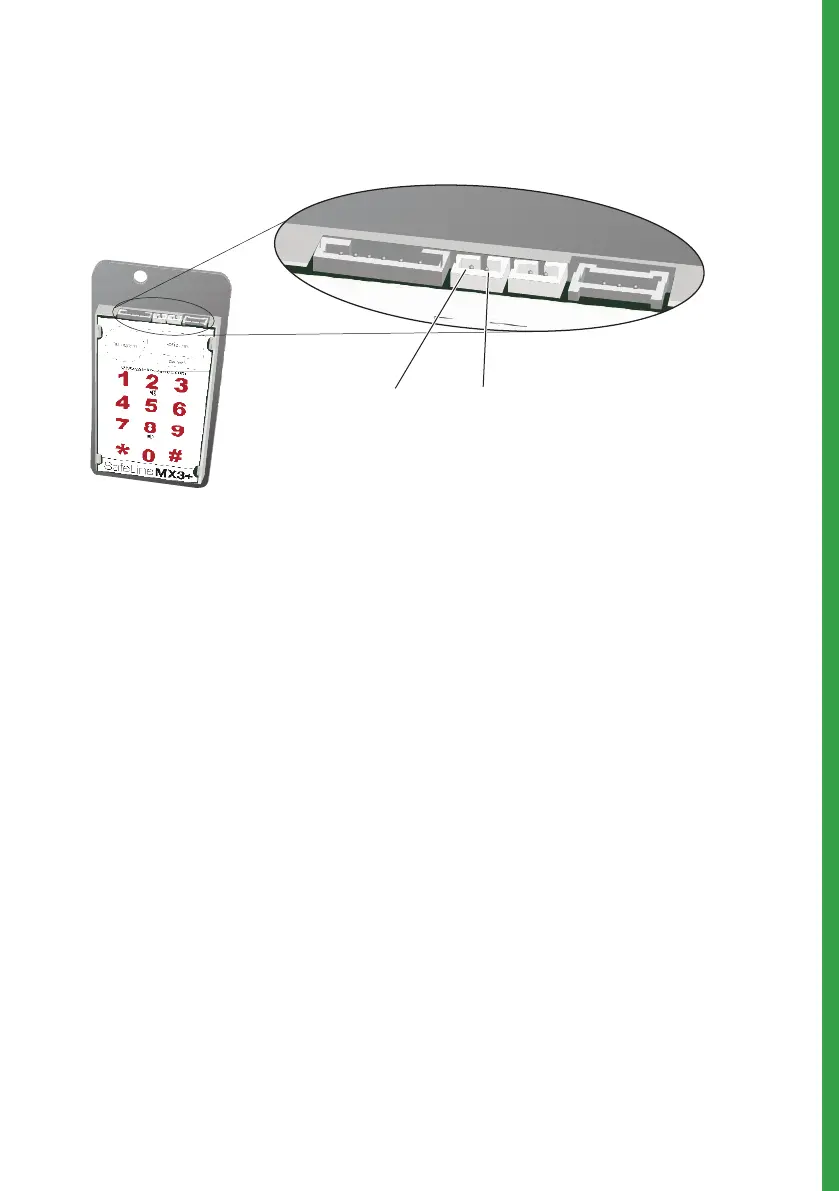

Output 2 Output 1
Output 1 and 2 can be confi gured independently.
