MX3+ v1.06 EN
© 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Installation

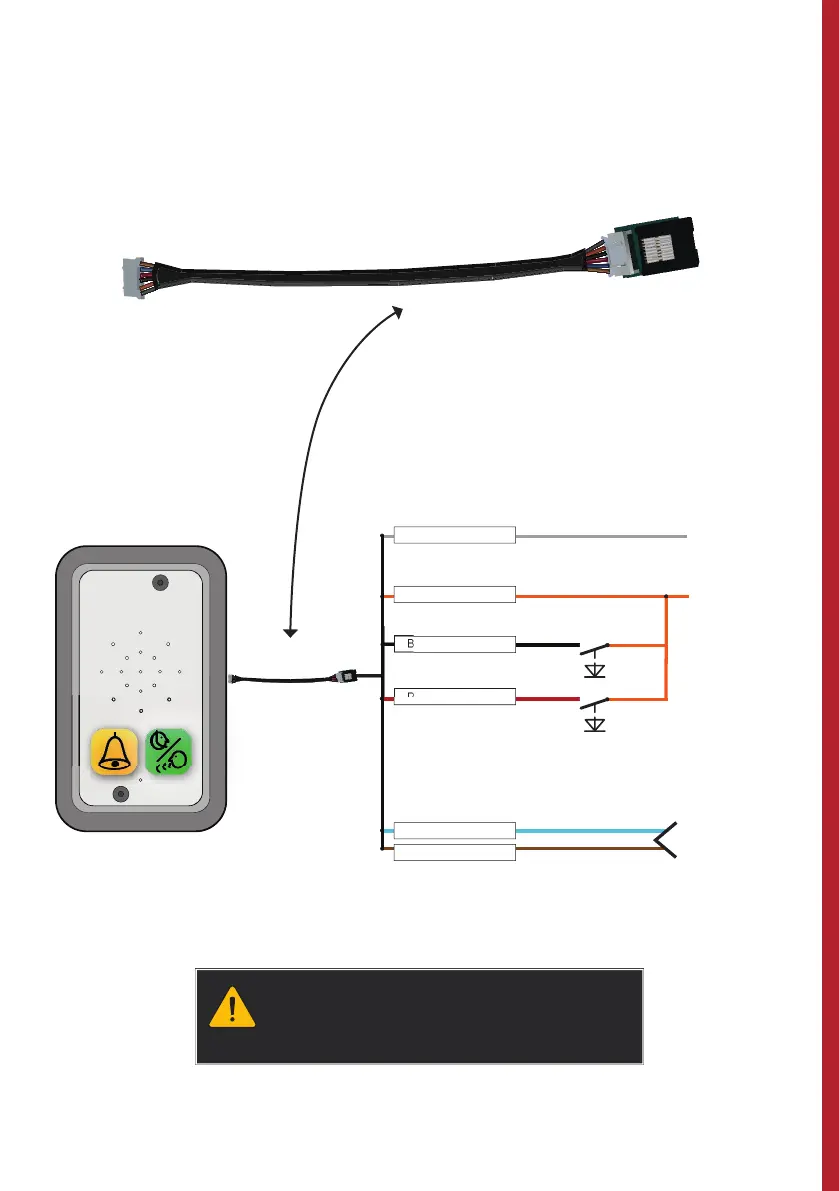

WIRING DIAGRAM, WHEN UPDATING TO MX3+ FROM MX2
Unconnected cables must be isolated in
order to avoid short circuiting.
Colours when using fl at cable
Voltage supply
0 VDC
Additional input
(fi lter)
Alarm button
Telephone
line in
GRAY
BLACK
RED
BLUE
BROWN
ORANGE
Voltage supply
+10 - 30 VDC
When updating to MX3+ from MX2, the RS2
cable kit is required (RJ45 to 6 pin connector).
