5.0 Mechanical Characteristics
5.1 Dimension, Weight & Material
The MXS measures approximately 3.50in (89.0mm) x 2.09in (53.0mm) x 1.00in (25.4mm).
Table 5-1 lists the weight, color, and material attributes of the MXS. Figure 5-1 shows MXS dimensions.
Table 5-1 Mechanical Attributes
COATED PER MIL-PRF-85285 TY I, CL H
COLOR LIGHT GRAY PER FED-STD-595/26373. FINISH COAT APPLIED OVER
PRIMER MIL-PRF-23377, TY I, CL N.

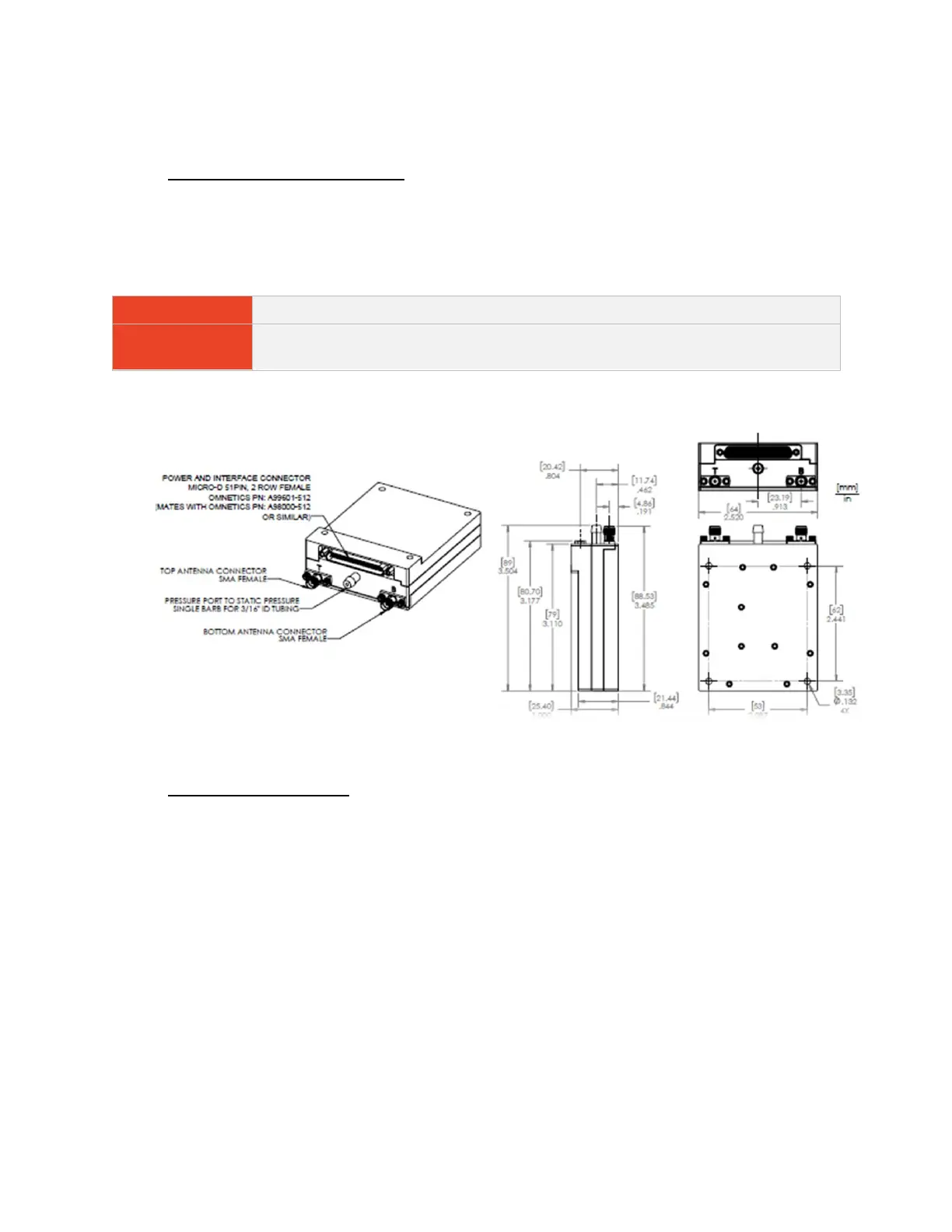

Figure 5-1 MXS Dimensions
5.2 Mechanical Connection
The MXS has the following connectors/ports:
• One 51-Pin Micro D-Sub connector, connecting to the host and power.
• Two Transponder/ADS-B L-Band SMA antenna connectors.
• One Pressure Altitude Sensor/Encoder port to static port to static pressure, barbed fitting for
0.18" (or 3/16”) ID tubing.
The locations of these connectors and ports are shown Figure 5-2.
