MXS System Description and Installation Manual UM06945

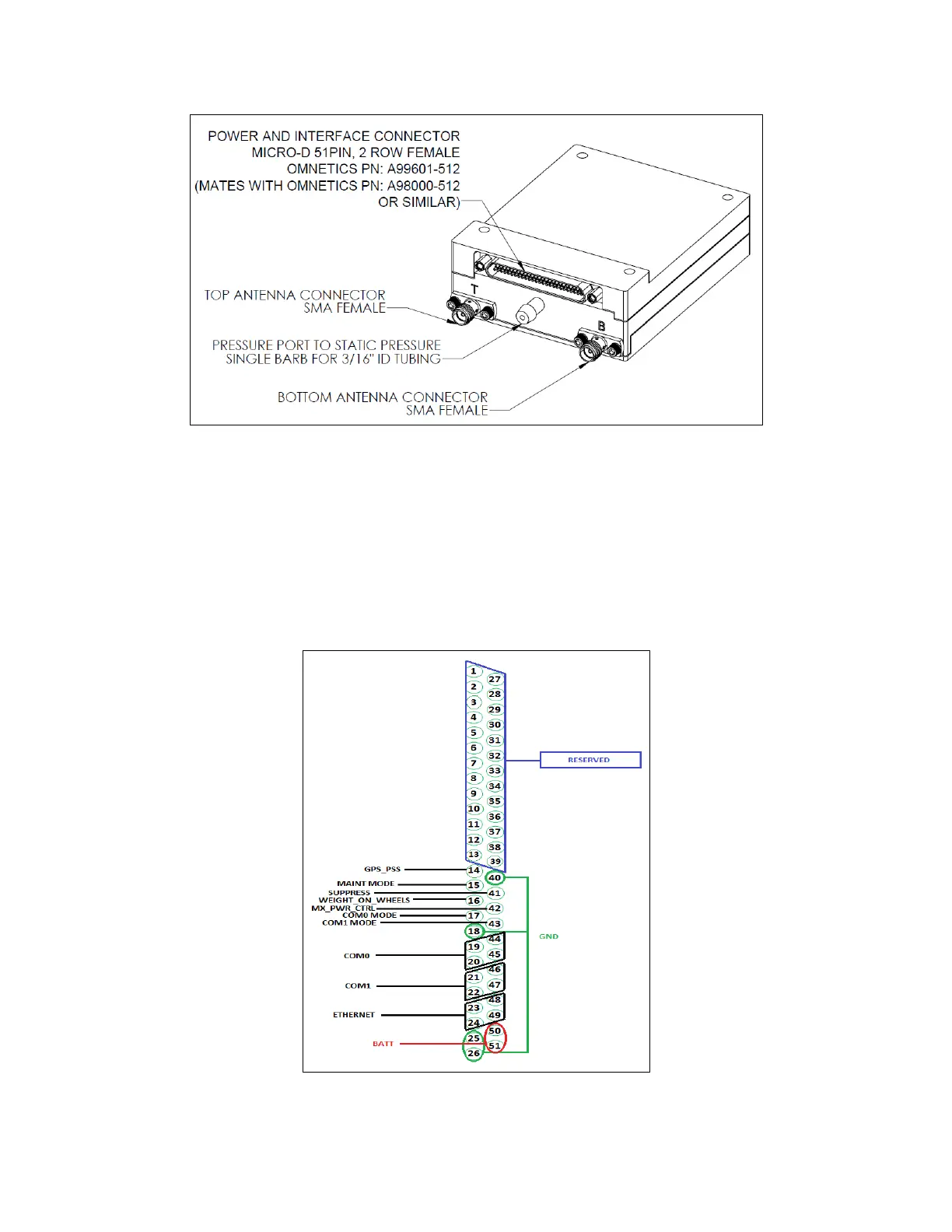

Figure 5-2 Mechanical Connections

5.2.1 MXS Main Connector

The MXS Main Connector is a 51-pin Micro-D type female connector that provides aircraft power and the

Host Interface.

Figure 5-3 shows the MXS Main Connector (Omnetics P/N: A99601-512) with pin locations and signal

pinout. Figure 5-4 presents an image of the female Micro D-Sub Main Connector’s front view, with pin

number orientation. Table 6-1 lists the Main Connector 51-pin assignments.

Figure 5-3 MXS Main Connector (Female) Pin Locations
