Sailor RT5022 Workshop Manual

VHF 5000 System Functional unit workshop service
3-7
0608

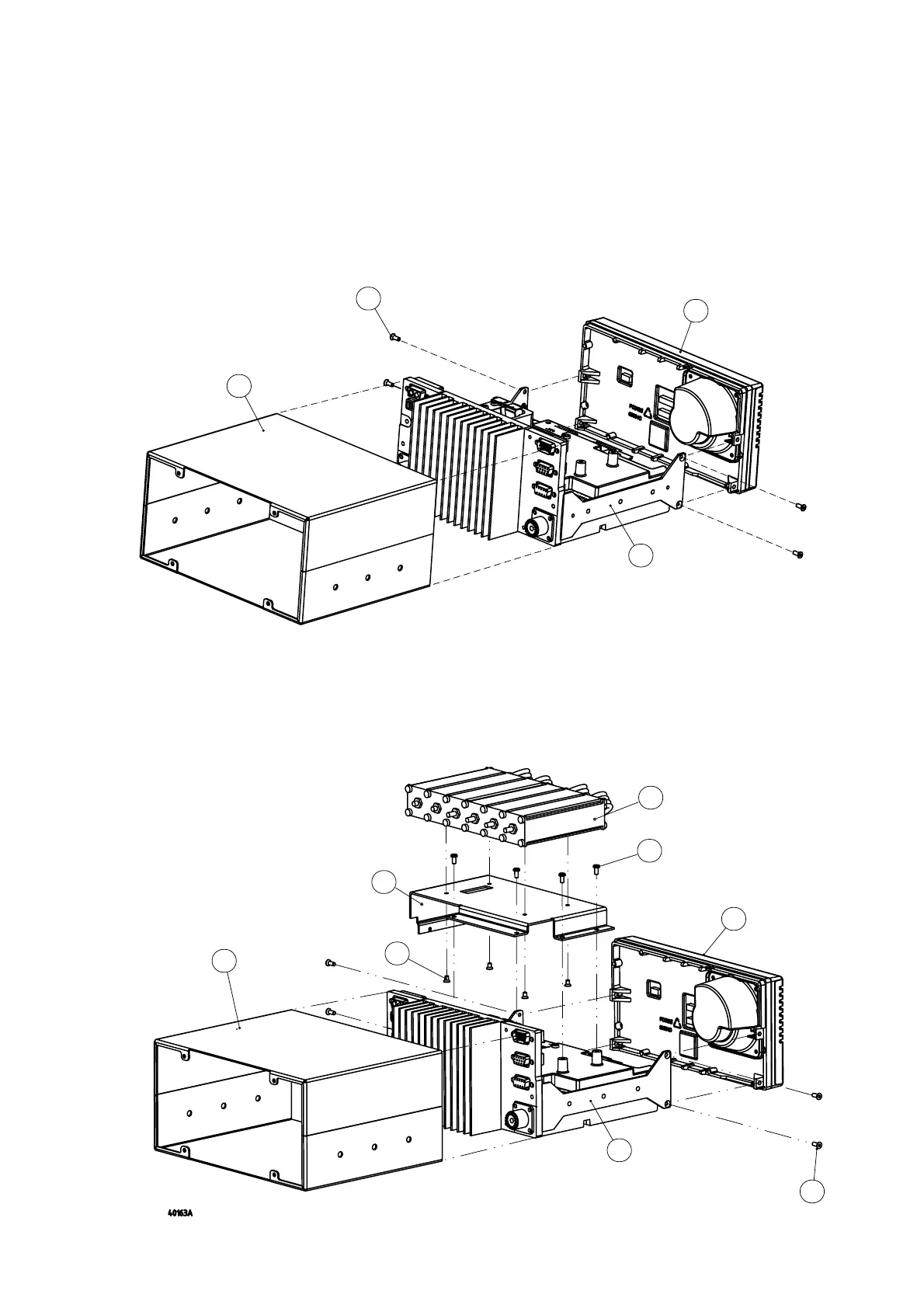

3.2.8 Removing/installing the Base Control Unit from Base Unit
Removal/Installing
• Remove 4 x Screw M2.5x8 (item 8)
Tools required: Torx screwdriver, size 8
• The base control unit (item 7) can now be disassembled from the base unit (item 6) by pulling forwards.
• Remove 3 x ribbon cable and loudspeaker cable between base control unit (item7) and base unit (item6)
5
6
7
8
40162A
5
7
8
6
12
9
10
11
