Functional unit workshop service VHF 5000 System
3-14
• Use a small amount of sealing compound (must not
contain acid) to provide support of the coil to the
stand off.
1007
• Use a small amount of sealing compound (must not
contain acid) to provide support of the ferrite coil
and power plug wiring to the E-profile.
• Reinstall the cover on top of the PSU module and
secure it using the two (2) screws.
• Position the DC power plug in the rear chassis of
the radio and secure it using the two (2) socket
screws.

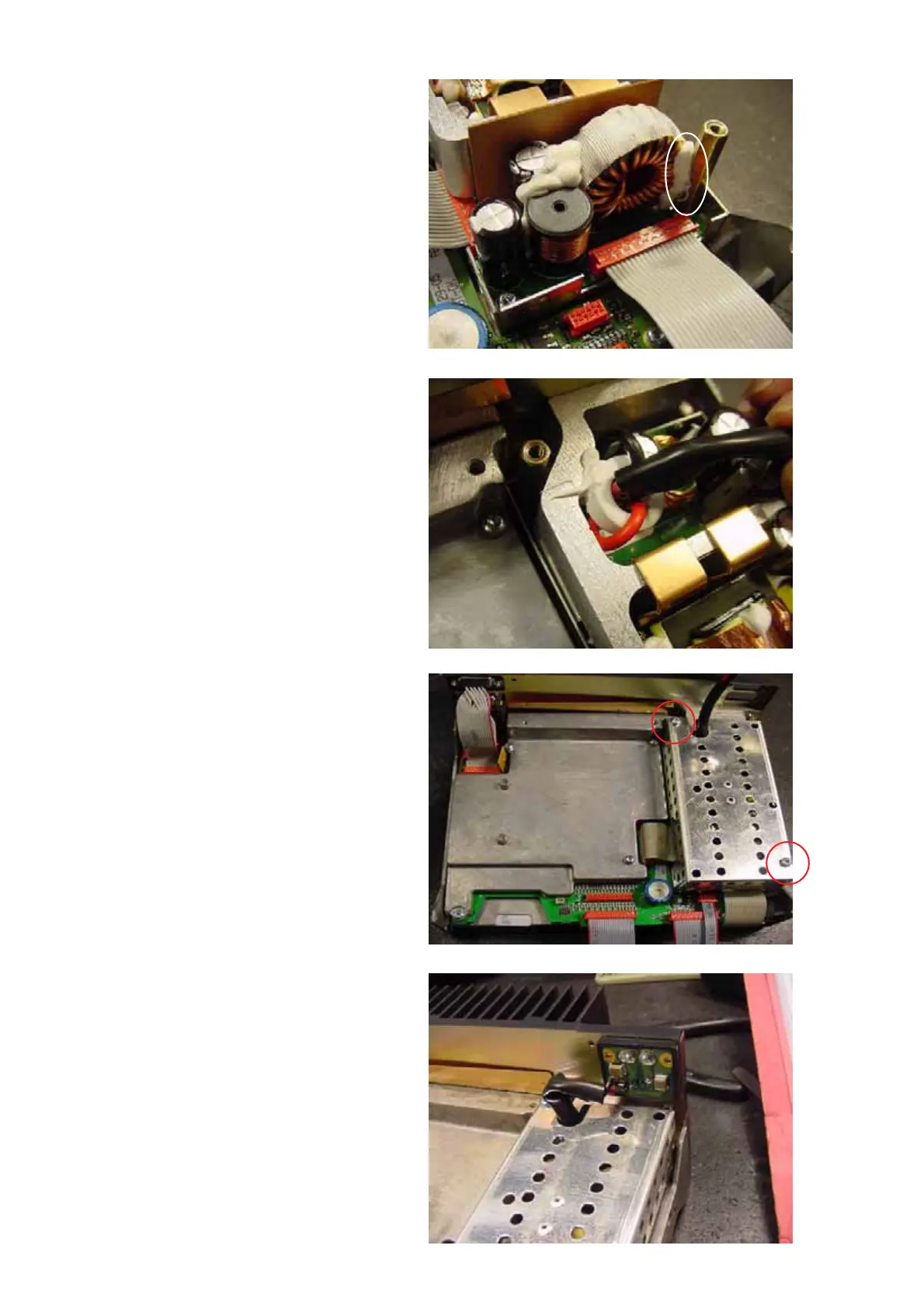

Fig. 18
Fig. 19
Fig. 20
Fig. 21
