Sailor RT5022 Workshop Manual

VHF 5000 System Installation
5-3
Handset for transceiver
This Handset has a hook-on/off function,
which is activated by a small magnet imbedded
in the ceadle.
The cradle must be installed as illustrated in
order to ensure the hook-on/off functionality
of the Handset.
75
62
226
* 120
min. 200
Space for handset access
Space for cable and handset cable
54
45
135
39655B

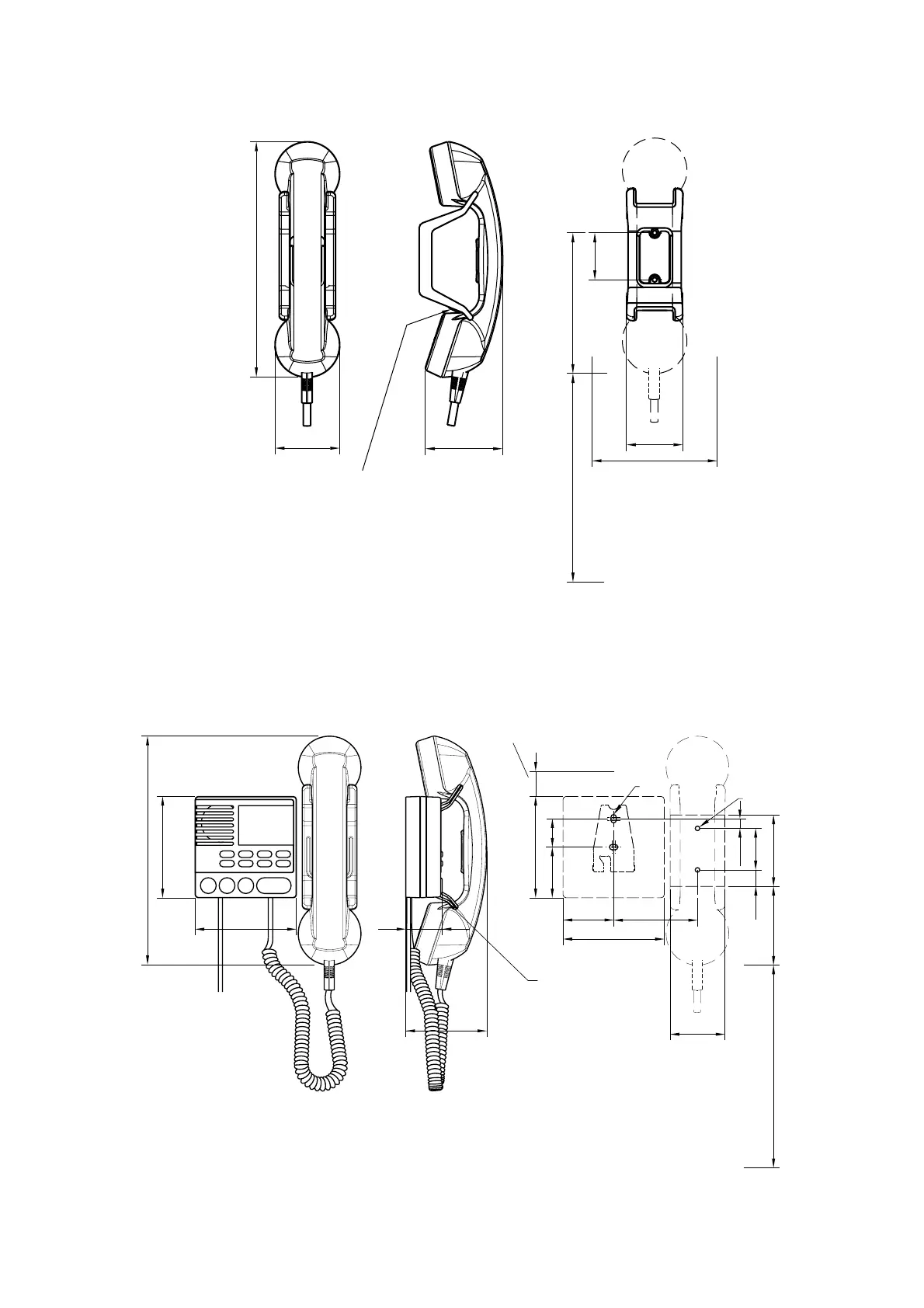

Drilling plan
Weight
Handset for transceiver 0.4 kg
Semi-functional control unit
39654C
Drilling plan
This Handset has a hook-on/off
function, which is activated
by a small magnet imbedded in
the cradle.
The cradle must be installed as
illustrated in order to ensure the
hook-on/off functionality of the
Handset.
100
100
36
226
80
min. 200
Space for cable and handset cable
78
70
41
54
100
50
28
100
16
50
2xø4.5
25
detaching control unit
Space for installing and
2xø5
Length of spiral cord
at rest : 380 mm
9,6
83
Weight:
Semi-functional control unit 1.2 kg
