Sailor RT5022 - Extension Box Mounting and Drilling Plan

39
Installation
0505
Extension Box
4 pcs. ø6

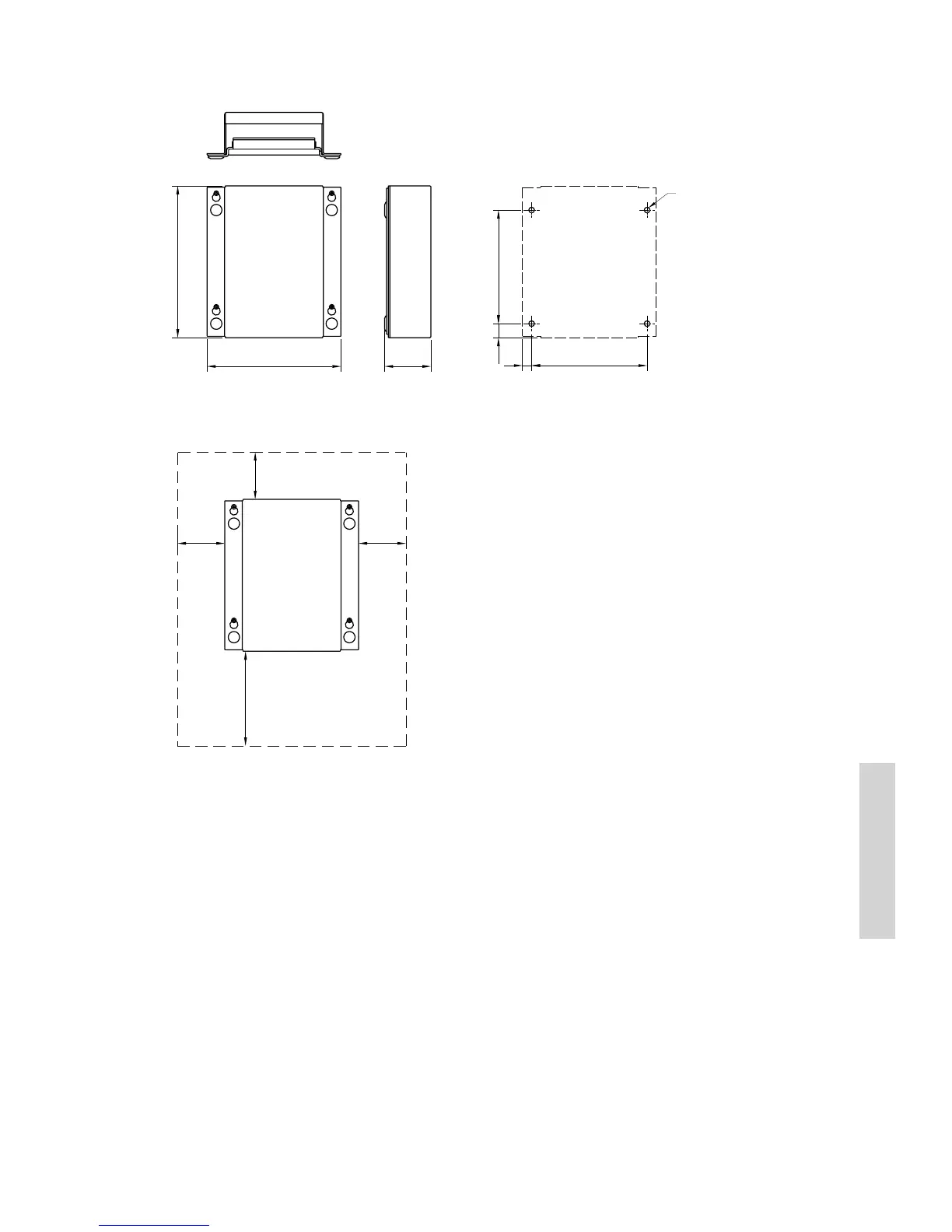

Drilling plan
39657
** Free space for cable entry.
* Free space for mounting,
Mounting
141.4
160.4
49
* 50
** min. 100
* 50
* 50
122 9.7
14.85
120
Weight
Extension Box ??0.7 kg
