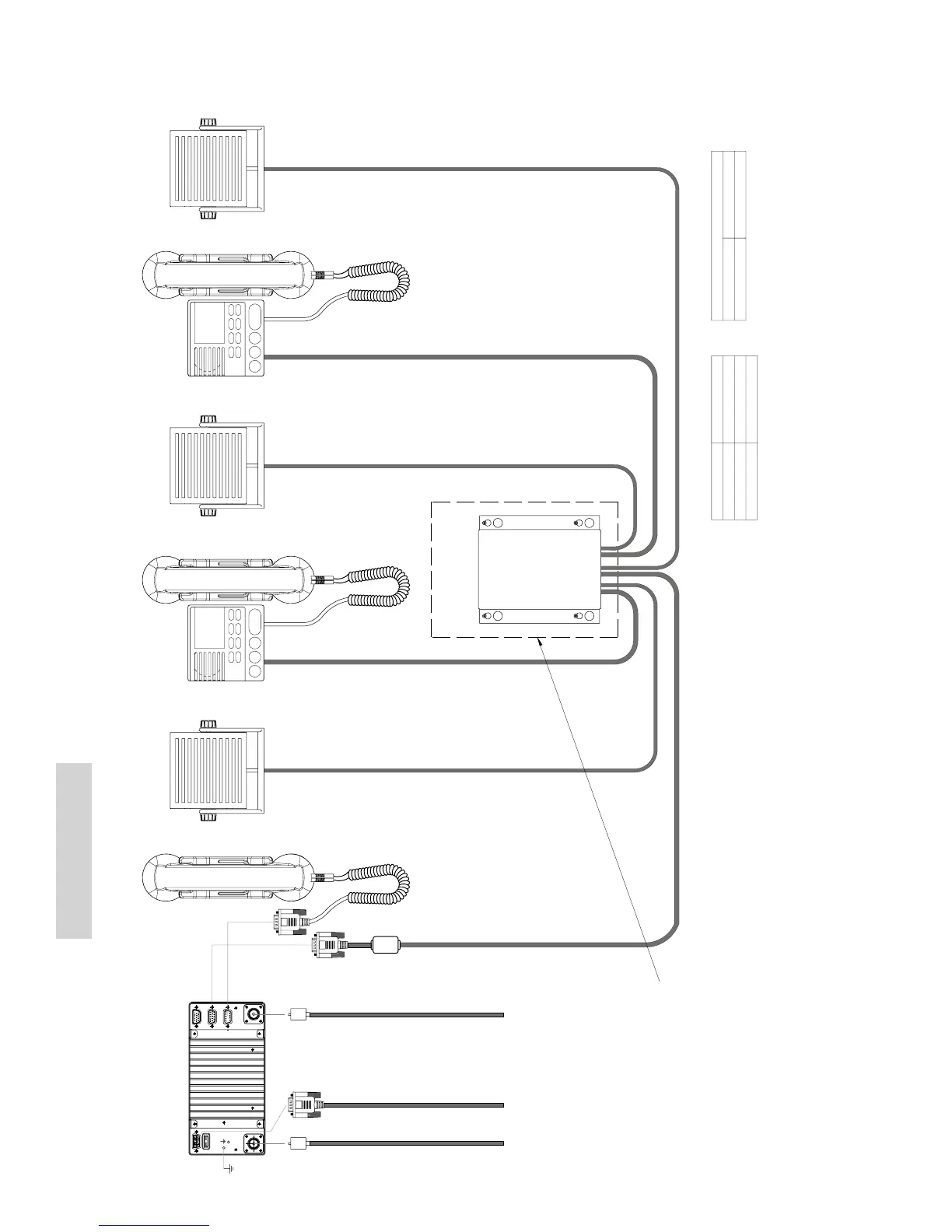

9.2.2 System Block diagram with Extension Box
Sparc-bus Handset
(Optional) (Optional)
Ext. speaker (CU1)
Ext. speaker (CU2)
CU 1 (Optional)
39702
539439
CU 2 (Optional)
(Optional)
Ext. speaker (VHF)
(Optional)
Extension Box
Note:
Sparc-cable length specification
Conductor size
Maximum cable length
8x2x0.5mm2
20m
8x2x0.75mm2
30m
8x2x1mm2
40m
All cabling not furnished with equipment to be overall screened type.
Cable screens must be securely grounded at cable inlets in connection boxes,
Power connection, 12-24VDC supply
Power cable p/n xx.xxx, 1.5m 2x4.0mm2
+ VDC
White
0 VDC
Black
as illustrated in cable connection diagrams.
(rear view)
56.114 L=5m
VHF
DSC Antenna RG213
PL259
RX/TX Antenna RG213
PL259
Power 12-24V DC
L=1.5m furnished with equiptment
8x2x0.5mm2, max 20m.
8x2x0.5mm2, max 20m.
Cable Connection diagram
See next page:
