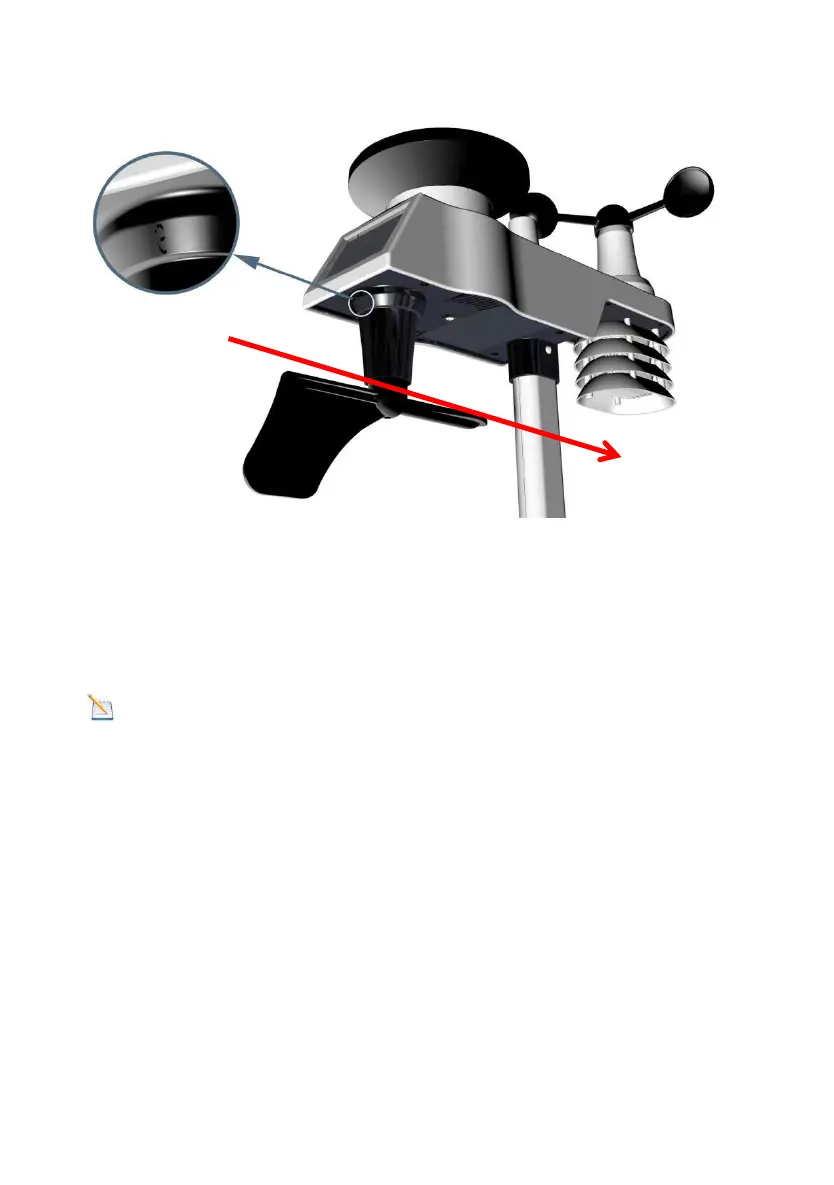

Figure 14
Step 2: Console operation set to Southern Hemispheres( SOU
in the time area) in Location division. (Check the detailed step
of setting the time area in the part 15 of Chapter 7.2)
Note: The location division (NOR or SOU) on the Display
Console and the directions of the sensor have to be adjusted
to match with your real location.
If the wind direction sensor is not positioned correctly during
installation, permanent wind direction error will be introduced.
5.1.3 Mounting & Fixing the Sensor Horizontally
Fasten the integrated outdoor sensor to the mounting pole
brackets with foot-mounting，two Ø3 bolts and M3 nuts.
