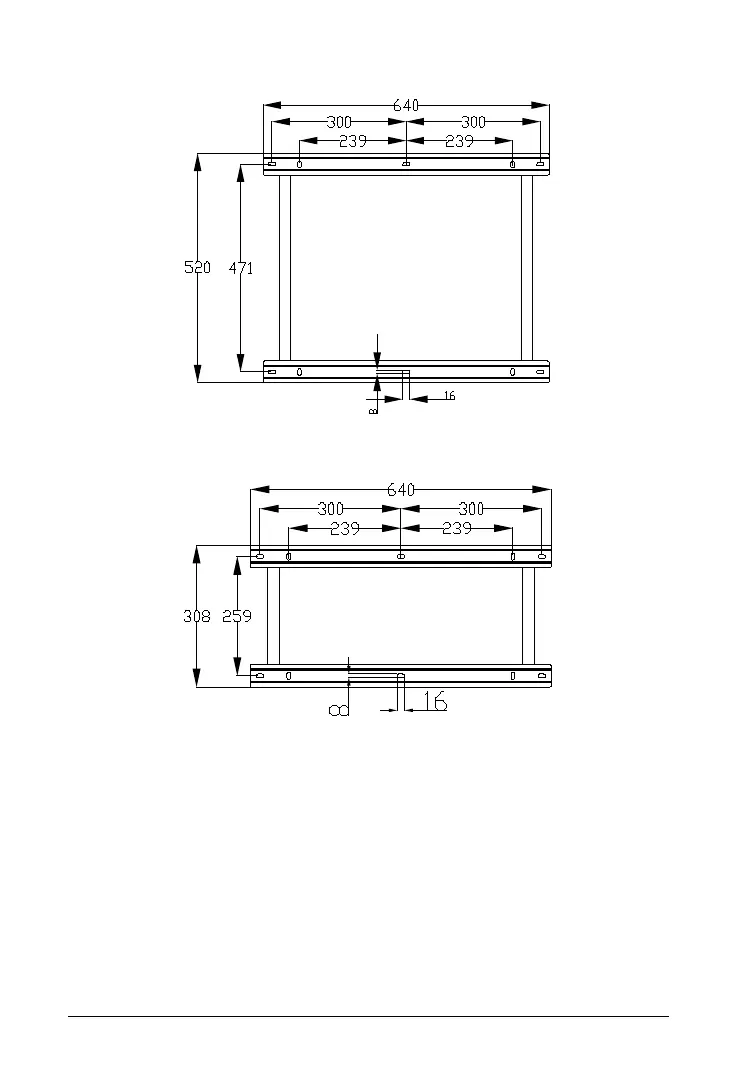

Fig. 3.5 AS1- 3KS-5.1 hanging panel size (master device)
Fig. 3.6 B1-5.1-48 hanging panel dimension (slave device)
Before installation, please make sure that the wall has sufficient strength to fix
the screws and bear the weight of AS1. Mark the hanging hole position of the
hanging panel on the wall and drill the corresponding hole position; then use a
rubber hammer to drive the screw fixing seat into the hole.
