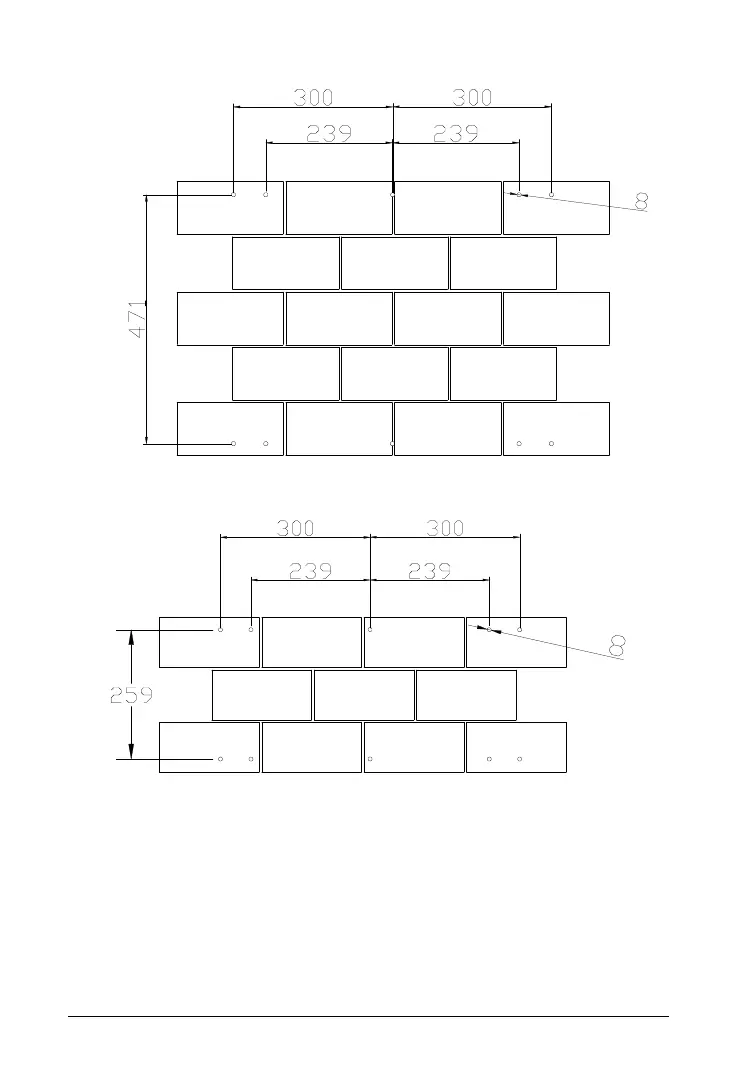

Fig. 3.7 AS1-3KS-5.1 (master device)
Fig. 3.8 B1-5.1-48 hanging panel dimension (slave device)
AS1-3KS-5.1 is the master device and B1-5.1-48 is the slave device. In order
to ensure normal installation of both, the installation distance between the master
and the slave panel, while that between the slave panels shall at least meet
requirements as follows:
